Tundra Bed Front MOLLE Panel | (07+)

★★★★★ ★★★★★ 5/5 Stars. (2 Reviews)
  • Tundra Bed Front MOLLE Panel | (07+)
  • Tundra Bed Front MOLLE Panel | (07+)
  • Tundra Bed Front MOLLE Panel | (07+)
  • Tundra Bed Front MOLLE Panel | (07+)
  • Tundra Bed Front MOLLE Panel | (07+)
  • Tundra Bed Front MOLLE Panel | (07+)




Weight: 27 (lbs)

Free Shipping!

    Front Bed Molle and Accessory Storage Panel | 2nd & 3rd Gen (07+)

    Designed to maximize the storage space by utilizing the front of the bed. Offers customizable mounting for tools and gear. Comes coated with a two-stage satin textured black powder coat over durable zinc primer finish.

    • CNC cut and formed from .120" steel.

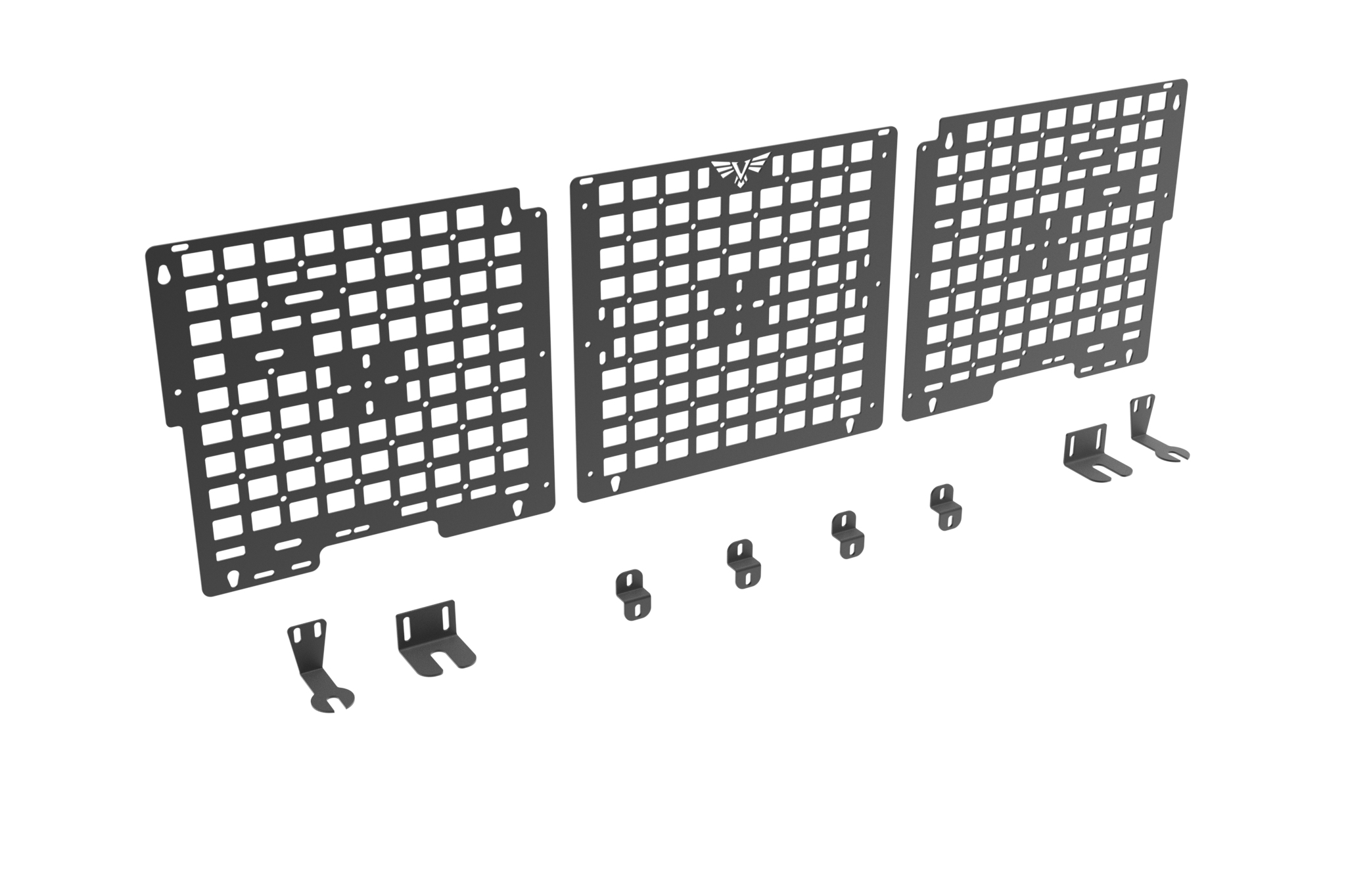

    • All three panels included
    • Mounts using the bed rail system.

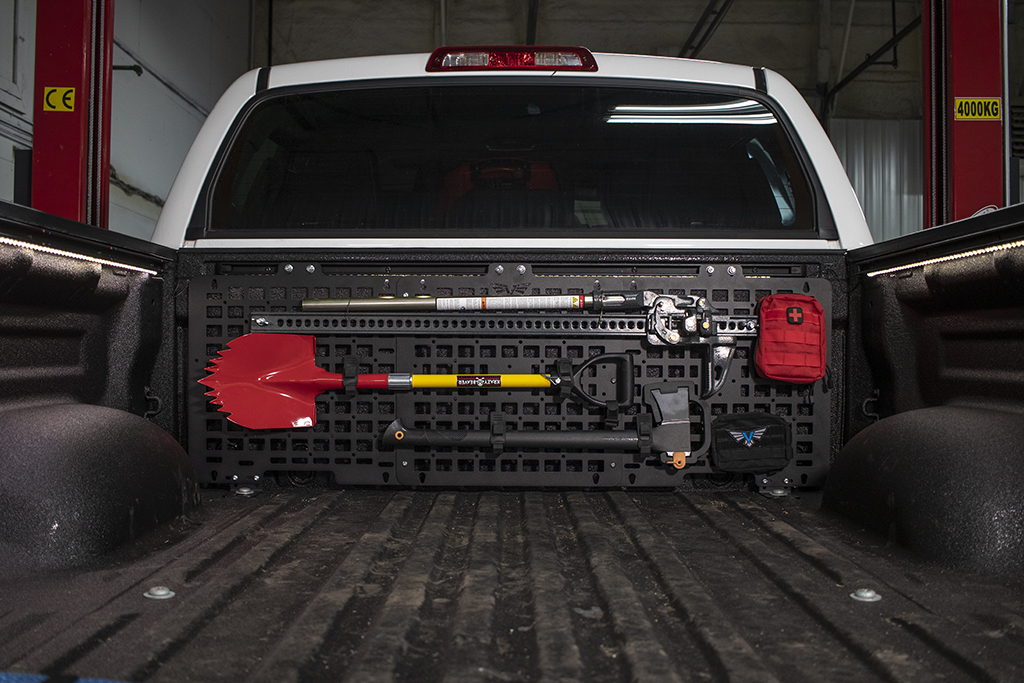

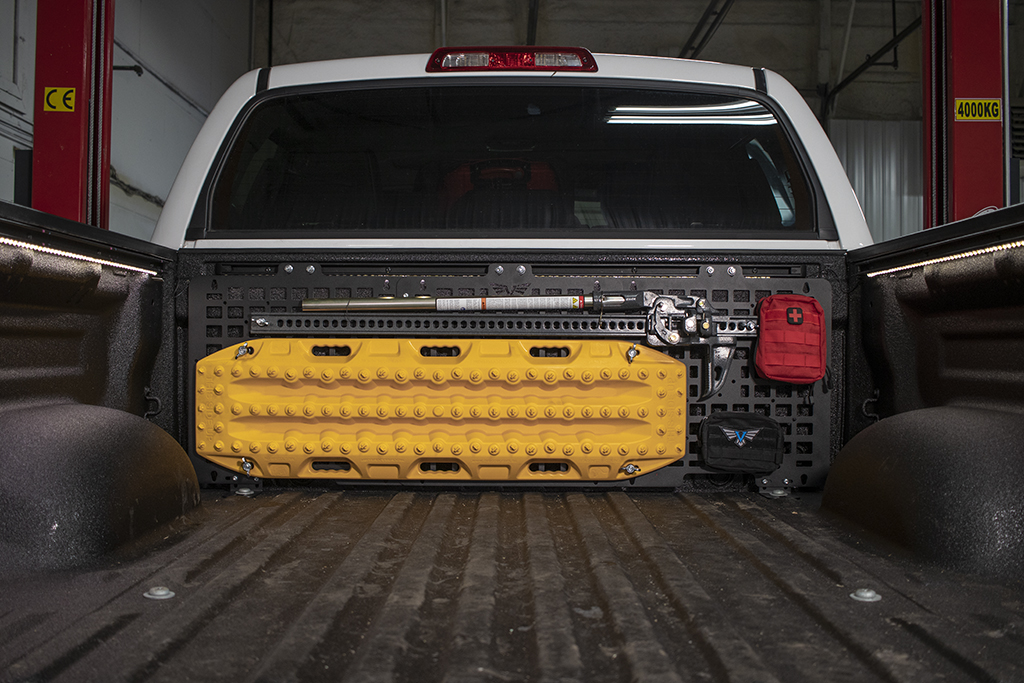

    • Can accommodate a combination of the following; 3 Rotopax containers, 4 gallon Rotopax container, Hi-lift Jack, Tred Pro or Maxtrax recovery boards, Quickfist mounts to secure axes and shovels.
    • Includes Hi-Lift jack mounting hardware.
    • Fits Crewmax & Double Cab (both bed sizes): Double Cab requires drilling.
    • Will work with Bakflip tonneau covers.
    • Proudly designed and made in the USA.
    • Requires drilling plastic bed liner on equipped models.

Looking for answers to common questions about us or our products? See our FAQ here.

18 Questions asked on Tundra Bed Front MOLLE Panel | (07+)

Ask us anything

Q Jack • 03/31/2020, 1:39:32 AM What are the dimensions (length & height) of the Tundra Front Molle panel?
A 04/20/2020, 3:28:27 PM Approx 20"x 60"
Q Tom • 02/24/2021, 4:09:43 PM Is the bed rail the only way to install this?
A 02/26/2021, 10:28:46 AM Yes it is.
Q TM • 08/08/2021, 6:00:13 PM would the hold X-Bull traction track 3rd gen (https://www.amazon.com/dp/B07R5HYGDN?psc=1&ref=ppx_yo2_dt_b_product_details)
A 08/12/2021, 4:22:04 PM We have not tested those specifically.
Q Rob • 11/26/2021, 8:54:06 AM Are these compatible with the Bakflip tonneau cover mounting system?
A 12/01/2021, 11:25:16 AM It should work with the front molle panel, but we have not tested to confirm.
Q scott reid • 12/21/2021, 4:28:41 PM i just ordered this tundra molle front bed panel but i do not have a bed rail. can the bolts be drilled to the truck or is the bed rail the only way?
A 12/22/2021, 1:17:02 PM You could drill, but you would also need 1" spacers on the bolts if you don't have the bed rail.
Q Samuel S • 06/03/2022, 1:20:48 AM Will this fit an 06 Tundra?
A 06/09/2022, 3:18:46 PM It will not.
Q Samuel S • 06/04/2022, 4:10:00 PM Does this fit an 06 Tundra? I figured I may have to make my own holes if so.
A 06/09/2022, 3:18:46 PM It does not.
Q Erik • 06/17/2022, 9:11:50 AM If I have a CrewMax with spray in liner, am I still drilling?
A 06/22/2022, 2:01:57 PM No, the installation will be bolt-on.
Q Chris • 12/02/2022, 1:37:22 PM I have a 2021 Double Cab. Does this product come with all necessary hardware to install in my bed?
A 12/07/2022, 11:08:52 AM As long as your truck has a bed rail, yes.
Q Scott D • 03/12/2023, 0:56:43 AM I have 2017 double cab with the spray on bed liner and rail system. Will this Miller panel just need to be bolted or do I have to drill holes ?
A 03/13/2023, 12:13:56 PM If you have the factory rail system, this should work just fine even with the bedliner.
Q Greg • 04/11/2023, 5:34:49 PM Is there a molle panel that will fit the 2023 TRD Pro? If not, any word on when one might be available?
A 04/17/2023, 7:24:12 PM This version fits a 23 Pro also.
Q Randy Thompson • 05/04/2023, 12:27:38 PM Will this fit 2012 Tundra
A 05/08/2023, 3:25:47 PM Yes.
Q Aaron • 06/14/2023, 12:12:53 PM I see two different panel styles in the photos, one with the side panels notched for the bed corners (for newer tundras) and one that isn’t for older tundras. Is it possible to order the older version still?
A 06/22/2023, 11:02:49 AM We only offer the current design, however it will fit both models.
Q Tim • 07/29/2023, 1:51:19 PM Does the panel accommodate the Maxtrax mounting pins? Didn’t see a dimension on the holes. Thanks.
A 08/04/2023, 3:50:28 PM Yes, it does accommodate Maxtrax mounting pins.
Q vomhorizon • 08/28/2023, 8:20:36 AM Product description mentions drilling required for 2022+ 6.5 ft bed optioned trucks. Where is this drilling required?
A 11/29/2023, 4:11:10 PM That is in reference to the mounting points for the 2 lower mounts.
Q Mitko • 09/08/2023, 12:38:35 PM Will it fit if I have factory installed Toyota trifold tonneau cover
A 07/17/2024, 3:30:12 PM As long as the rail system isn't required to move, our panel should work with most tonneau covers.

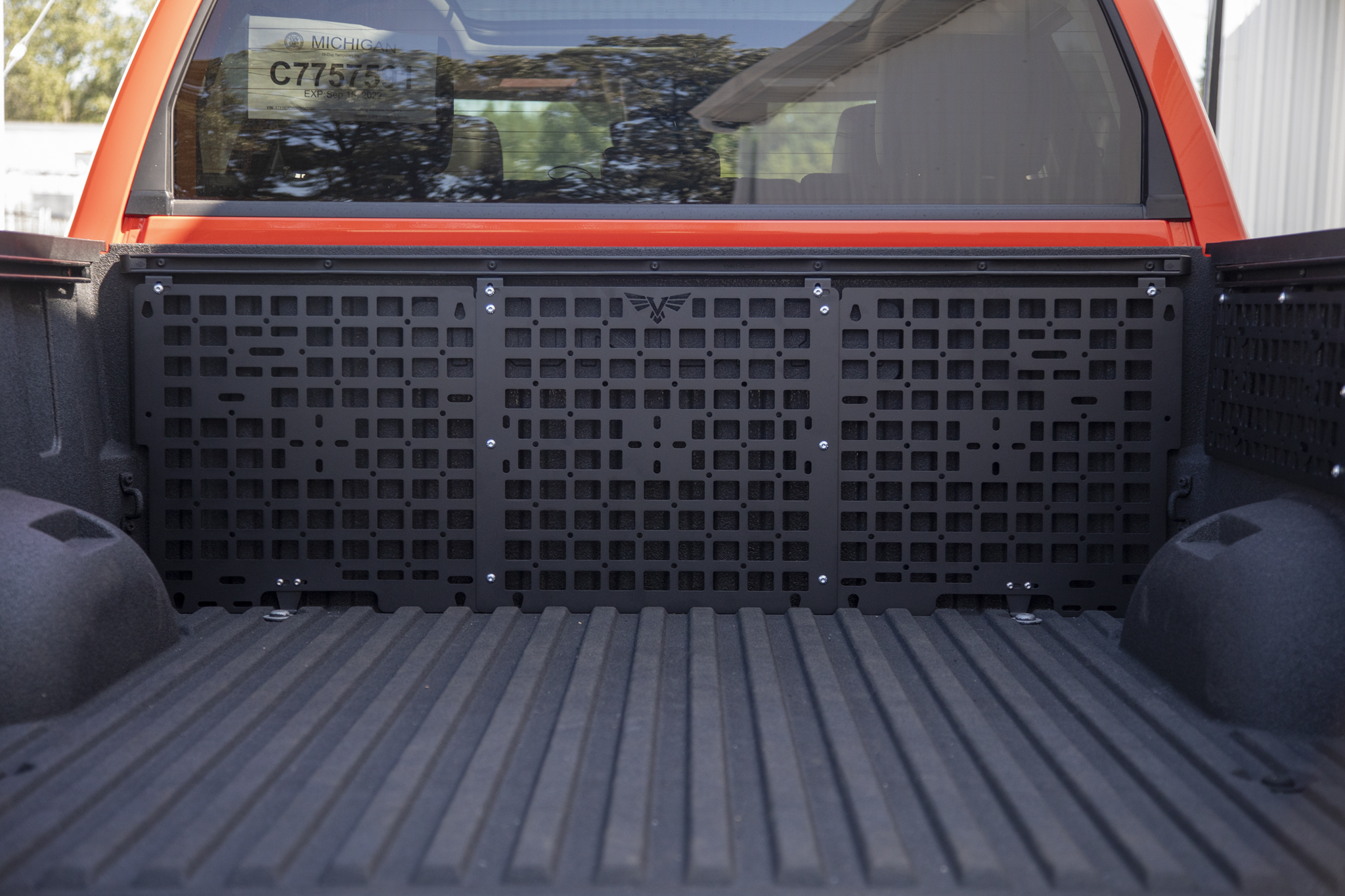

Q Ryan Hoeksema • 11/06/2023, 12:49:17 PM This is listed as 07+. The pictures show it on both a newer tundra (red) and older (white). The panels are clearly manufactured different in each of those pictures (tabs under the rail and panels on top of the rail) How do I know I'm getting the ones to fit my model ('18) truck?
A 11/10/2023, 11:43:38 AM This is a universal panel for the two models, the current design is shown on the red truck that you referenced.
Q Oscar • 02/12/2024, 0:07:07 AM Hi. Does this fit 2024 tundra cabin crew 5'5"?
A 02/14/2024, 11:34:58 AM Yes, this panel would fit all of the available different cab sizes.
★★★★★ ★★★★★
5/5 Stars out of 2 Reviews
Molle Madness *Tundra Molle Panel
(Salt Lake City) | October 6th, 2020
Love it! The can strap my hi-lift, med pack, and other accessories to this champ and keep my gear off the bed and look cool doing it...at least that’s what I tell myself anyways. Solid steel construction, great customer/bro support. Highly recommend to anyone!
Strap On
(Ontario, Canada) | August 10th, 2019
I've got the complete bed MOLLE system and it's been great to be able to strap things off just about anywhere I like. I began with 3 Rotopax mounted across these, then switched to the roof, but due to minor leaking out of my Pax, I'll be remounting them into my bed using this panel system. It looks great empty and even better with 3 3Gallon Pax across it. The fit is perfect also, no shifting or squeaks noticed once it's all bolted into the rail and into the bed floor.
Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
