Roof/Bed Rack Hi-Lift Mount

★★★★★ ★★★★★ 5/5 Stars. (2 Reviews)
  • Roof/Bed Rack Hi-Lift Mount
  • Roof/Bed Rack Hi-Lift Mount
  • Roof/Bed Rack Hi-Lift Mount
  • Roof/Bed Rack Hi-Lift Mount
  • Roof/Bed Rack Hi-Lift Mount
  • Roof/Bed Rack Hi-Lift Mount




Weight: 1 (lbs)

Free Shipping!

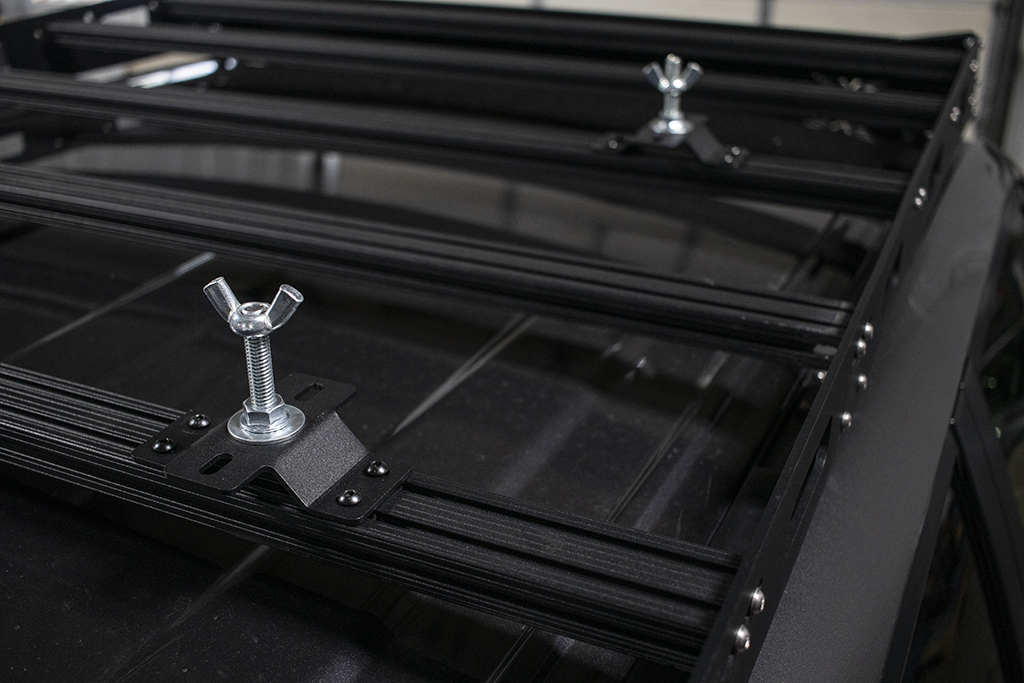

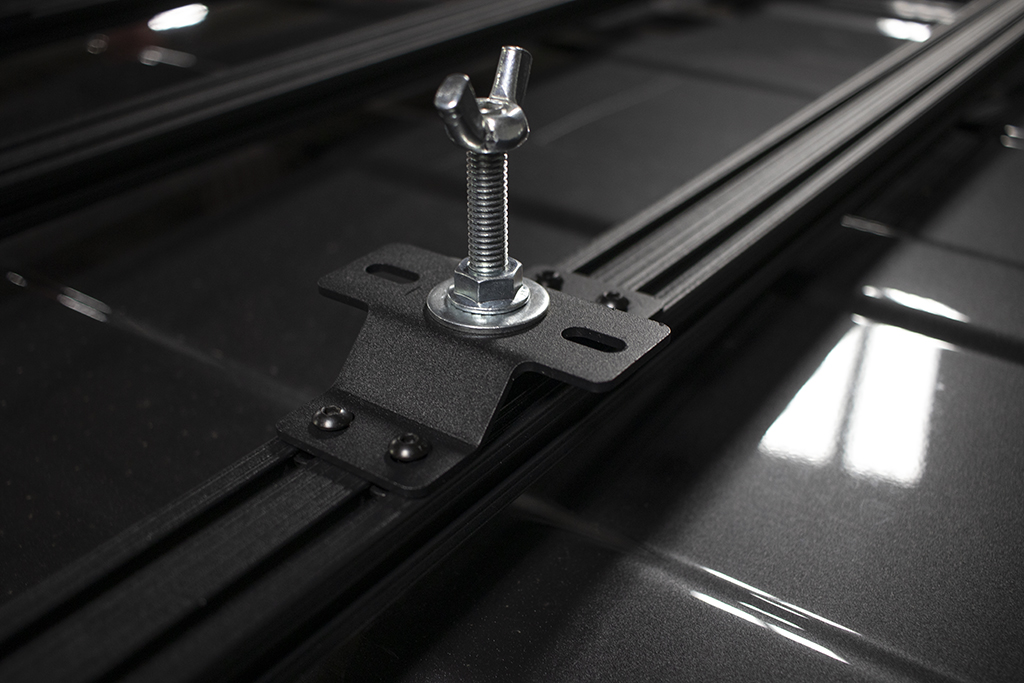

    Designed to securely mount a Hi-Lift jack to your roof rack or bed rack. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.

    • CNC cut and formed from 3/16" steel

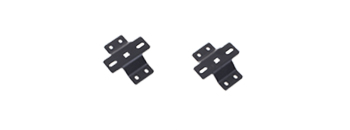

    • Sold in pairs
    • Bolt-on Installation
    • Made in the USA!

Looking for answers to common questions about us or our products? See our FAQ here.

16 Questions asked on Roof/Bed Rack Hi-Lift Mount

Ask us anything

Q Kyle • 05/02/2020, 10:18:04 AM I would like to assume for this price the hardware is included as well. I just purchased this item
A 05/04/2020, 10:07:42 AM Hardware to mount a hi-lift is included.
Q Travis • 06/19/2020, 11:22:03 AM What is the size and thread count of the bolt used for the hi-lift. I want to replace the wingnuts with knobs.
A 06/24/2020, 5:36:22 PM 7/16-14
Q Sarah • 08/26/2020, 6:30:03 PM all the photos show this mounted on top of racks. Will the mount support mounting on the side of a bed rack? And what is the spacing (O.C.) of the mounting holes?
A 09/09/2020, 3:26:39 PM These are designed for the top of the rack only.
Q Fred Capati • 09/10/2020, 0:59:29 AM What is the height of this mount?
A 09/14/2020, 3:57:08 PM Around 1"
Q Brandon • 09/19/2020, 9:06:41 AM What is the center to center measurement of the mounting holes where it mounts to the extruded aluminum crossbar channels?
A 09/24/2020, 11:01:43 AM 1"
Q allan • 10/15/2020, 8:31:36 PM Do these come as a set?
A 10/16/2020, 3:25:50 PM Yes, they are sold in pairs.
Q Brian breed • 12/14/2020, 8:02:11 AM Will this fit on a prinsu rack??
A 12/15/2020, 1:34:26 PM Yes
Q Dennis • 03/03/2021, 7:42:53 PM Will these work on the Victory OEM crossbars?
A 03/05/2021, 10:07:12 AM Yes, they will!
Q Eric • 04/11/2021, 0:57:34 AM What do you suggest to use as a lock for the hi lift jack when mounted to the jack mounts . The kit comes with wing nuts and hi lift makes locking knobs but they only fit 1/2" bolts. Suggestions for looking these down?
A 04/12/2021, 1:13:17 PM A cable lock through all you gear would work great.
Q Eric • 05/10/2021, 9:34:23 PM So will this work for the tundra bed rack side mounting plate. Looks like some asked the same thing but the answer was it was only for the top of the a roof rack. Why does it say it’s made for roof and bed rack then ?
A 05/12/2021, 2:29:21 PM You don't need these brackets for that. We don't have a hardware kit specifically, but you can mount a jack to the side panels using the various holes already in the panel using common hardware. Two long bolts, some spacers, and some wing nuts will work great. Contact our customer service team and they can help further.
Q Candice Watson • 06/16/2021, 7:40:40 PM I have the 7/8 LFD roof rack. Will this and the Maxx Track mounting hardware you have, worth with that Roof rack?
A 06/25/2021, 12:04:58 PM Have not tested that.
Q Felix Vina • 07/24/2021, 5:13:28 PM Includes screws for mounting the crossbar
A 08/12/2021, 3:19:20 PM Yes
Q Brian • 06/24/2022, 1:34:19 AM Will these work with Frontrunner Slimline 2 slats?
A 06/24/2022, 10:04:53 AM They will not.
Q Mich • 03/22/2023, 9:36:24 AM Will these Roof/Bed Rack Hi-Lift Mount work with the 4Runner Roof Rack Crossbars?
A 03/30/2023, 3:17:51 PM Yes they will.
Q Tomas Garcia • 05/23/2023, 10:25:04 PM What are the nylon spacers for?
A 05/24/2023, 11:46:12 AM Depending on the brand of jack, they can be used either in between the mount and jack or the wing nut and jack.
Q Andrew • 05/13/2024, 11:00:05 AM the two slotted holes on top , what is the measurement of the center to center. I want to use the slots to mount something
A 05/20/2024, 4:45:38 PM If you are referring to the two on the left hand side of the mount, those are 2" center to center.
★★★★★ ★★★★★
5/5 Stars out of 2 Reviews
Roof mount works great
(Bend Oregon) | November 16th, 2021
I have a few, a set for the hi-lift jack, and another set for my max-trax. The product works great and is well made like everything I have purchased from V4x4.
Great simple product
(Costa Mesa) | June 25th, 2021
Mounted ARB awning/enclosure with these and worked great!
