Universal Tire Mount
- 5 on 4.5 bolt pattern (TJ, YJ, XJ)
- 5 on 5 bolt pattern (JL, JT, JK, WJ, WK)
- 5 on 5.5 bolt pattern (CJ, Ford)
- 6 on 5.5 bolt pattern (Chevy, Toyota)
- 8 on 6.5 bolt pattern
- 5 on 150 bolt pattern

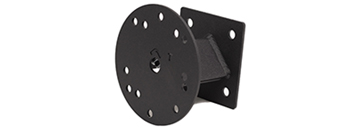

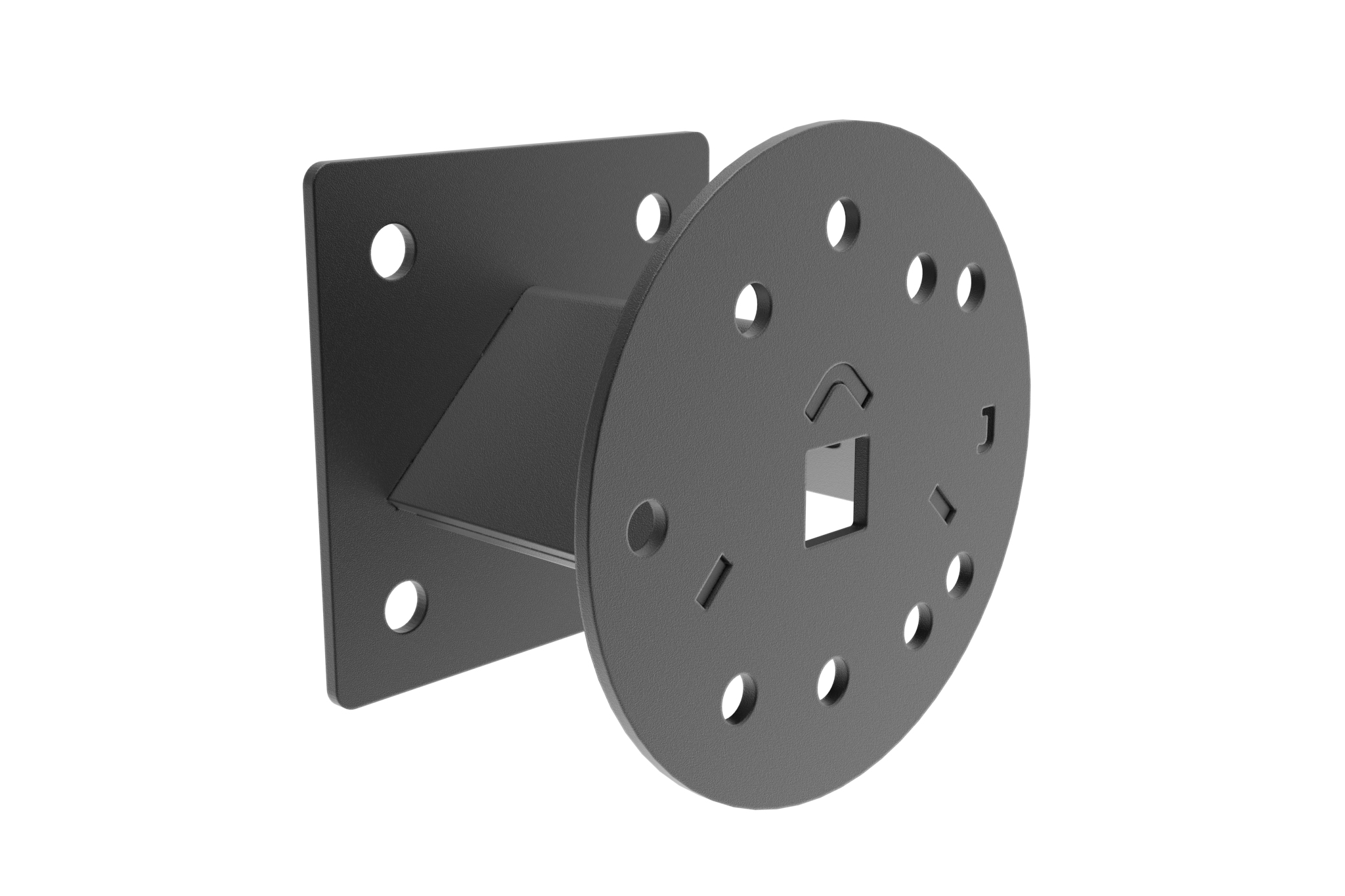

Universal Tire MountThe tire mount is constructed of .188 thick steel. Built in adjust ability for the exact backspacing of your wheel.
Wheel studs, lug nuts*, and mounting hardware included.

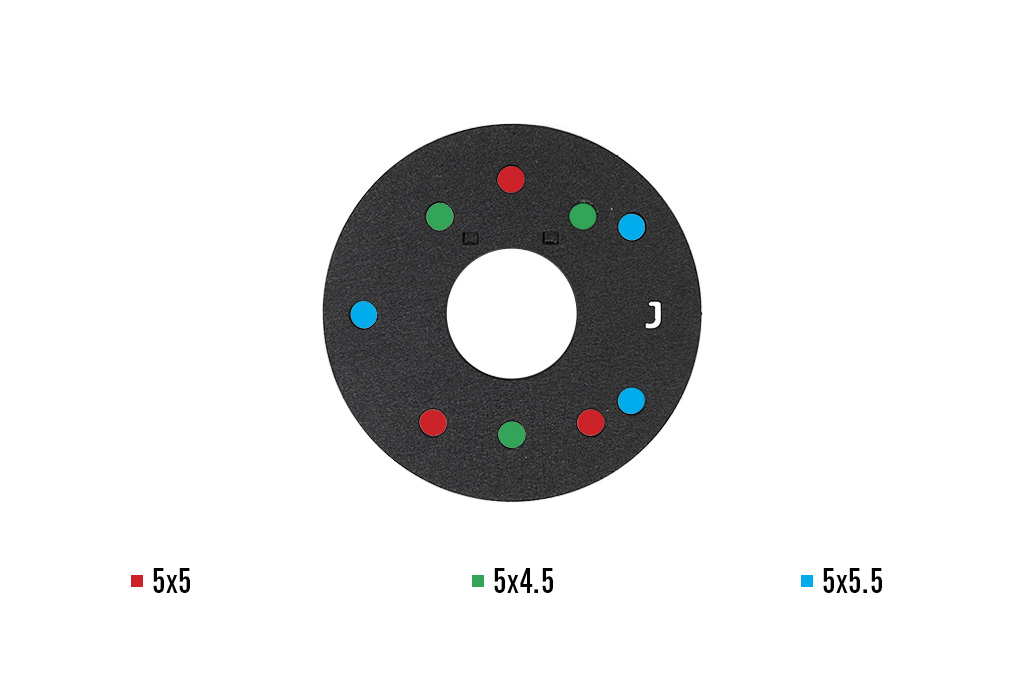

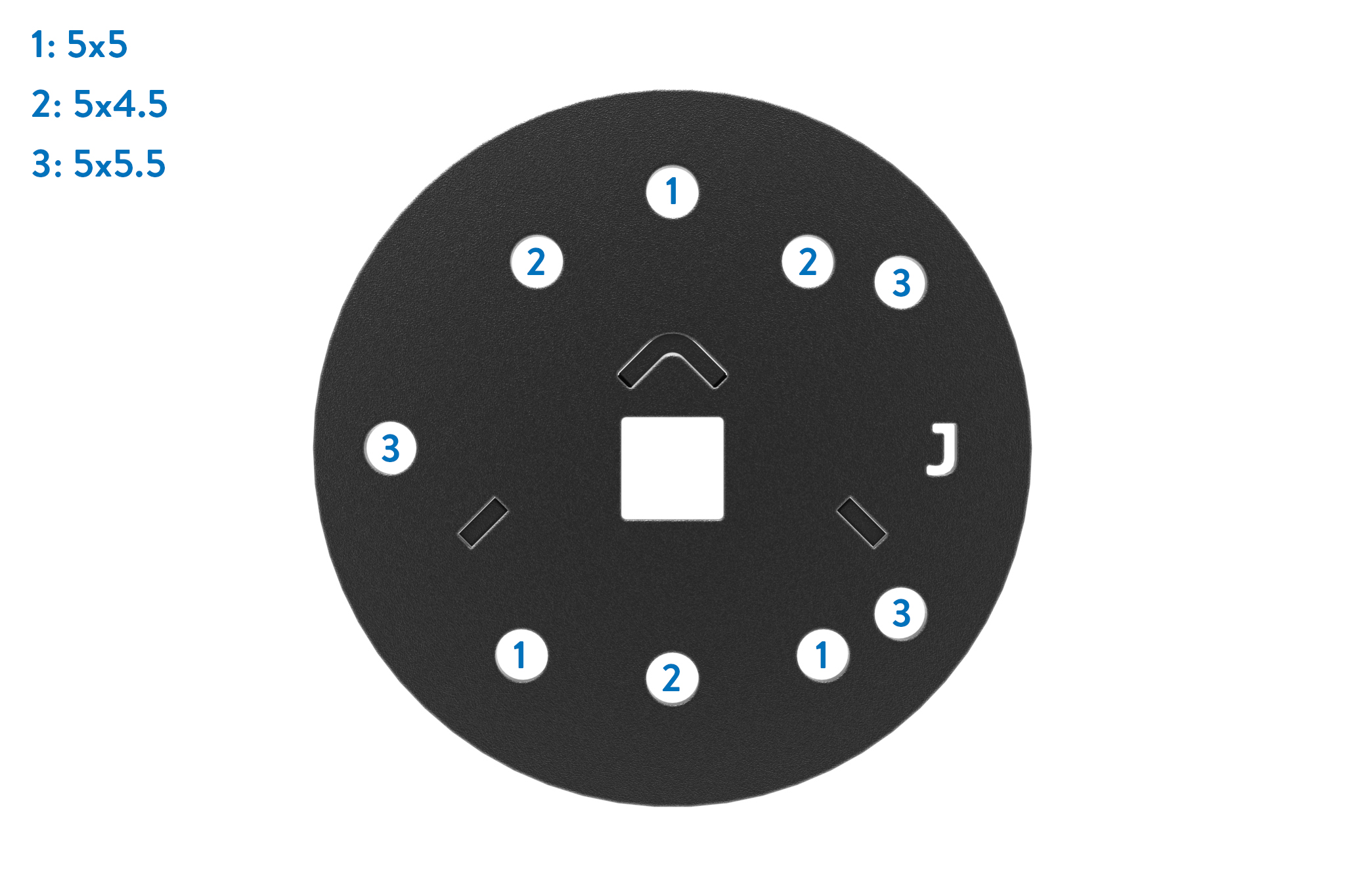

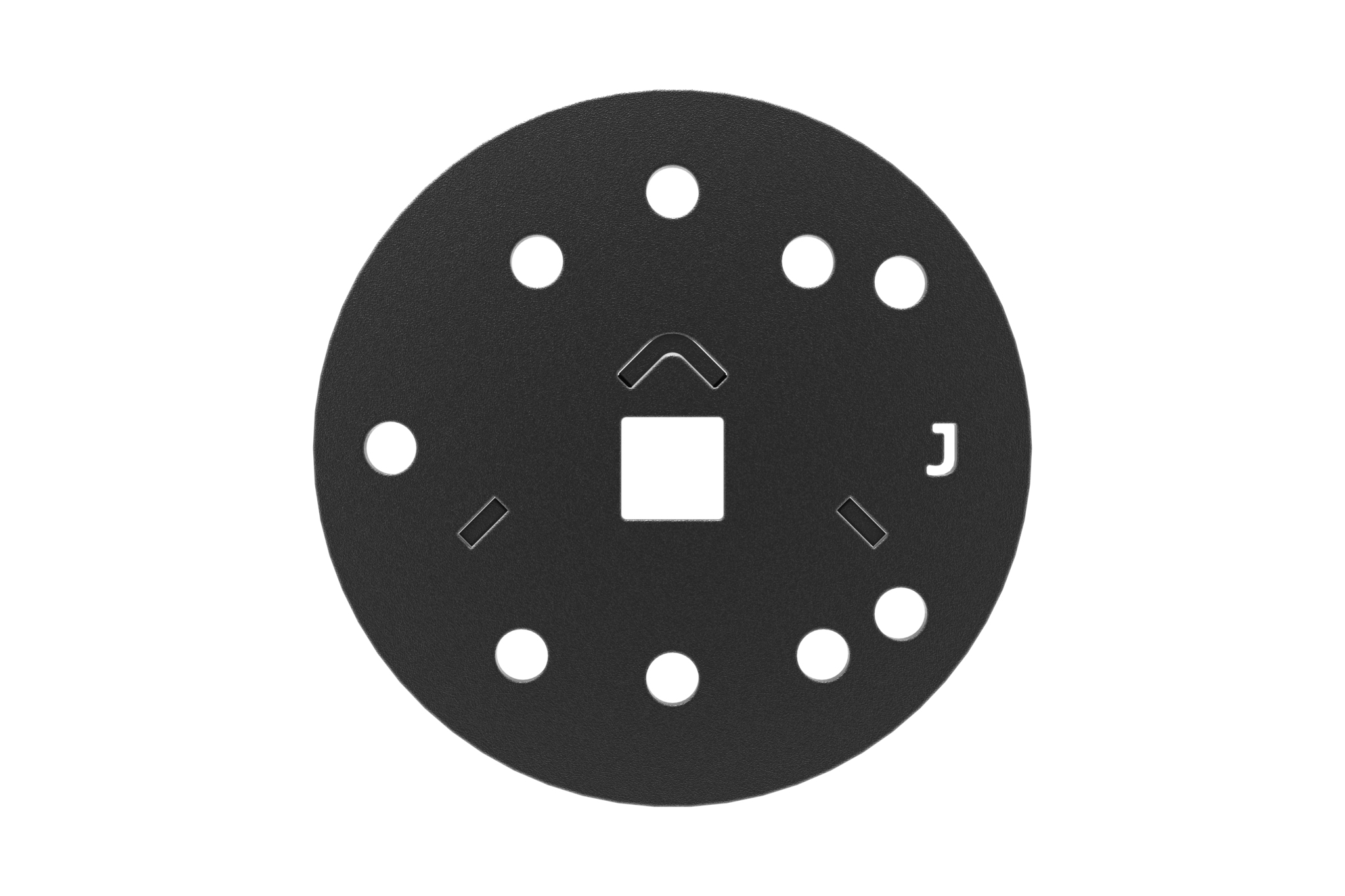

Jeep Patterns (5 Lug)

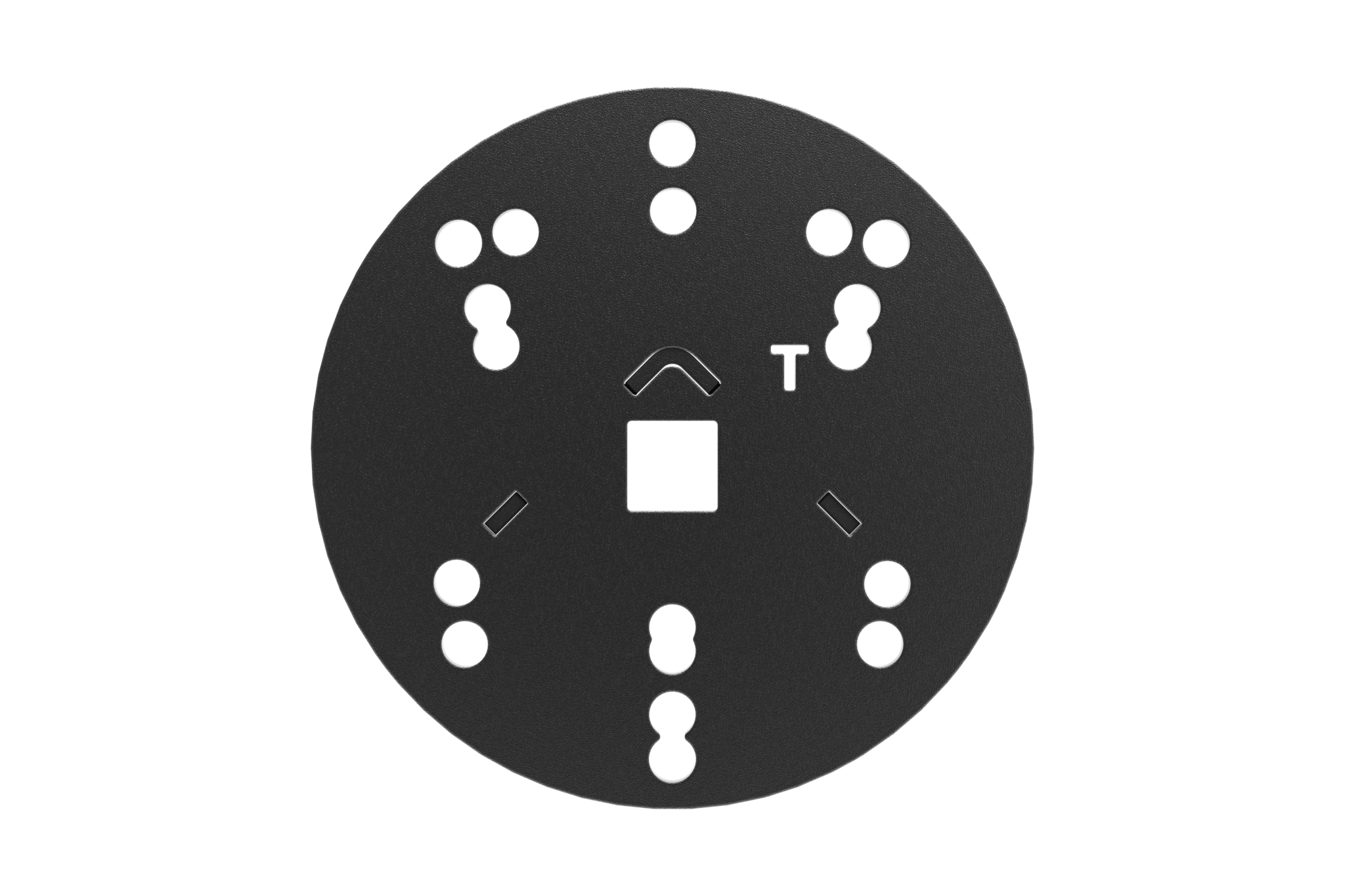

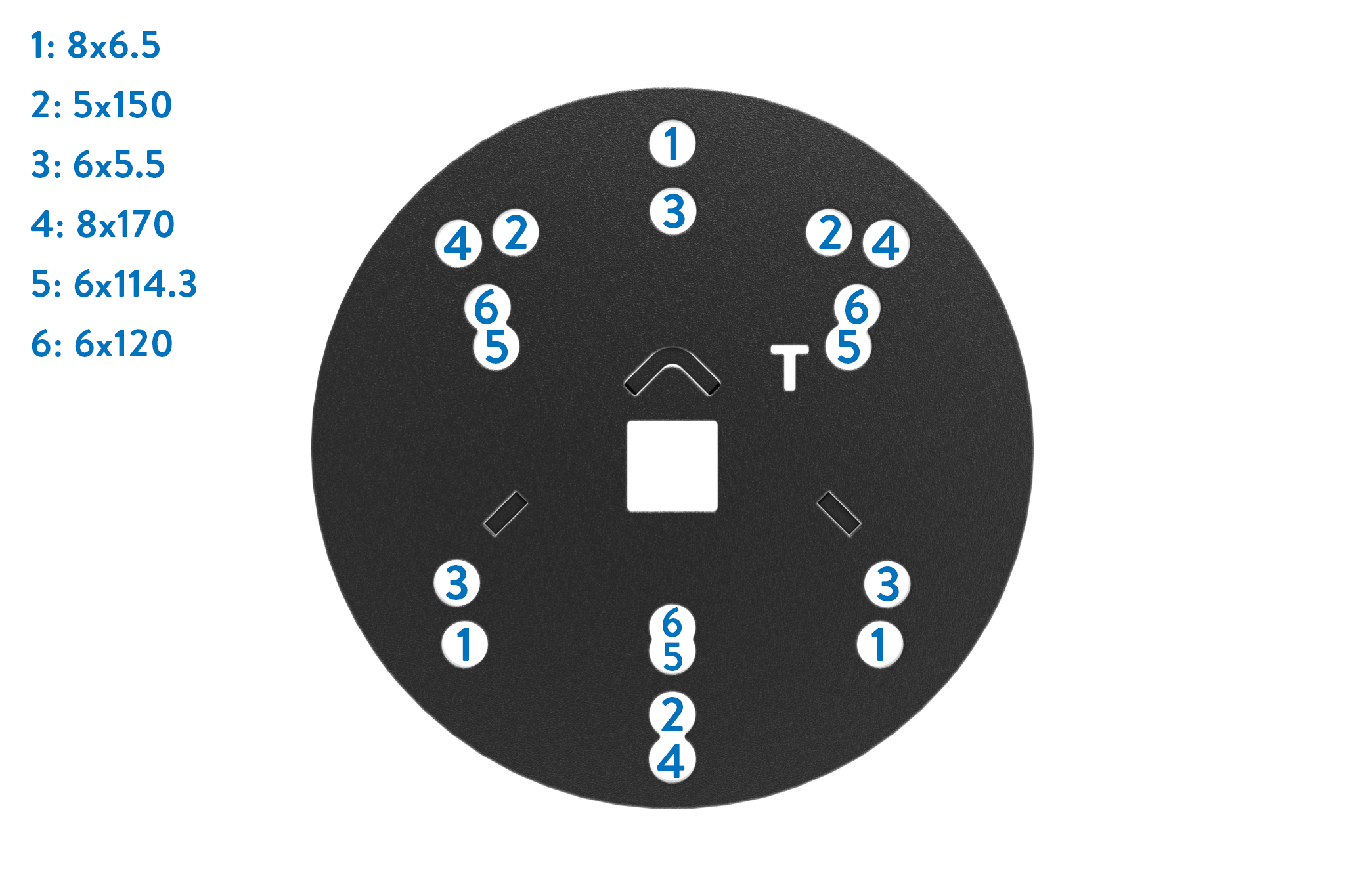

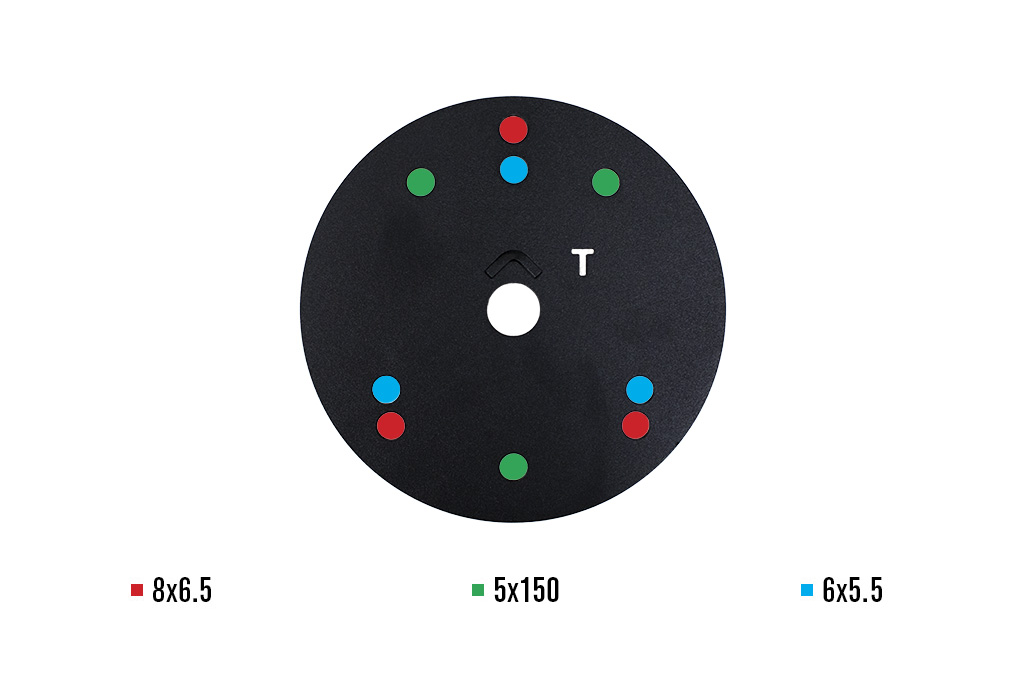

Truck Patterns (6 and 8 Lug)
*Supplied with 1/2-20 wheel studs and acorn lug nuts (uses 13/16" socket.) Depending on wheel, different lug nuts may need to be sourced. For factory Toyota wheels, use Gorilla Automotive 72187 short shank lug nuts.
The tire mounts are designed for a wheel mount surface to tire sidewall distance of 5 - 8" (this should not be confused with backspacing, the tire sidewall will add extra width to your backspacing number.) The tire needs to be adjusted tightly against the carrier or surface once installed to help stop vibrations from fatiguing the tire mount, carrier, rack, or bumper. If your tire does not sit flat against your mounting surface when installed please contact us.
Looking for answers to common questions about us or our products? See our FAQ here.
18 Questions asked on Universal Tire Mount •
Ask us anything
Q Joshua • 05/17/2020, 2:58:48 PM Will you be making these as angled mounts too or always straight up and down?
A 05/19/2020, 2:35:51 PM We are only making them this way right now.
Q Steve • 08/01/2020, 3:58:13 PM Will this bolt up to and work with the new roof basket?
A 08/05/2020, 11:51:45 AM There not provisions in the roof basket for the tire mount. Honestly a high quality ratchet strap works best for a tire in the basket.
Q Nick mcnutt • 10/05/2020, 1:12:45 AM Will this work with the adventure carrier
A 10/06/2020, 2:10:22 PM Yes it will.
Q Ben • 11/24/2020, 9:46:30 AM Can a tire be mounted vertically with this, say to a rear door, or is this only for a roof rack with the tire mounted flat on top of it?
A 11/25/2020, 2:45:55 PM Yes, we use this exact mount on our tire carriers.
Q Nikhil • 12/03/2020, 11:00:48 PM Can you directly mount this onto the backdoor of the 4runner?
A 12/04/2020, 12:13:29 PM No
Q Jason Garner • 02/23/2021, 2:58:50 PM Will this combo naturally with the tacoma bed front molle panel for a tire mount up against the cab or will i have to outfit a backing plate of sorts to put the two together? is the molle panel secure enough to hold this tight against any possible vibrations?
A 03/01/2021, 3:13:17 PM This front MOLLE will not work well for a tire mount.
Q Brian Felio • 04/14/2021, 6:06:42 PM Will this mount on the side of the full size bed rack system for 2012 Tundra?
A 04/21/2021, 2:11:12 PM It was not designed for that specifically, no.
Q Justin • 07/25/2021, 4:10:49 PM Would this mount work with the Tundra bed side molle and accessory storage panel?
A 08/12/2021, 3:19:20 PM They are not designed to work with each other.
Q Garrett • 09/22/2021, 3:03:08 PM Will this work to mount a 285/70R17 on the back of a 4Runner?
A 09/23/2021, 1:26:44 PM Along with our VAC and V4R5RS (or V4R4RS depending on year of your vehicle) yes.
Q Cole Duininck • 10/19/2021, 11:58:08 PM How could this be mounted below a bed rack? Could you use cross bars that are mean for the roof rack to create a place to Mount this bracket in the middle thianks!
A 10/28/2021, 11:48:20 AM You could mount VRKACM on the front to rear bars of the rack and the tire mount to that.
Q Dustin Schnack • 12/26/2021, 1:15:16 AM What is the space between the surface mounting holes?
A 12/27/2021, 12:10:58 PM There is a hole in the center to route backup camera and license plate light wiring for our Camera/License Plate Relocation kit.
Q Megan • 12/30/2021, 10:10:40 AM Does this mount onto the roof rack? If I buy the roof rack could I mount the tire on top?
A 12/30/2021, 11:40:34 AM Yes, it can mount to the roof rack. It will require our Roof Rack Accessory Mount to do so.
Q Daniel Seifer • 02/20/2022, 6:45:19 PM How does this adjust for backspacing? Can ya'll build them with specific dimensions or is this adjustment something we do after purchase? My application will need just about 6" of total surface-to-surface depth. Thanks!
A 03/04/2022, 2:40:36 PM The two pieces are slotted and allow for adjustment for backspacing.
Q Alex M • 04/05/2022, 10:00:35 PM What is the distance between the 4 base mounting holes? Is it square?
A 04/06/2022, 9:48:06 AM Yes, it is square, 4".
Q Jim • 04/08/2022, 7:48:43 PM Will this fit on the a factory tire for a 2007 4runner. I am getting the steel back bumper and swing arm already. I am looking to add my spare tire to it.
A 04/13/2022, 12:14:27 PM Yes, you will need to select the Truck 6 & 8 lug option.
Q Jim • 04/09/2022, 1:09:38 AM Will this fit a 2007 Toyota 4runner wheel as is ?
A 04/25/2022, 10:58:12 AM Yes
Q zak • 01/08/2023, 12:32:37 PM Can it carry 35 inch wheel? if it is mounted on GX REAR BUMPER with ADVENTURE CARRIER
A 01/10/2023, 12:51:06 PM Yes, it can. Although on a GX you will need to move a 35" tire as inward as possible (center of the vehicle) on the Adventure carrier slots not to block the taillight.
Q Luis Estrada • 03/14/2023, 9:34:46 AM Can I mount this on the rear door of a 2012 Chevy Express 2500. It’s a work van and I want to put a spare like a jeep.
A 03/30/2023, 2:59:46 PM Not sure your door is designed to handle that much weight.
