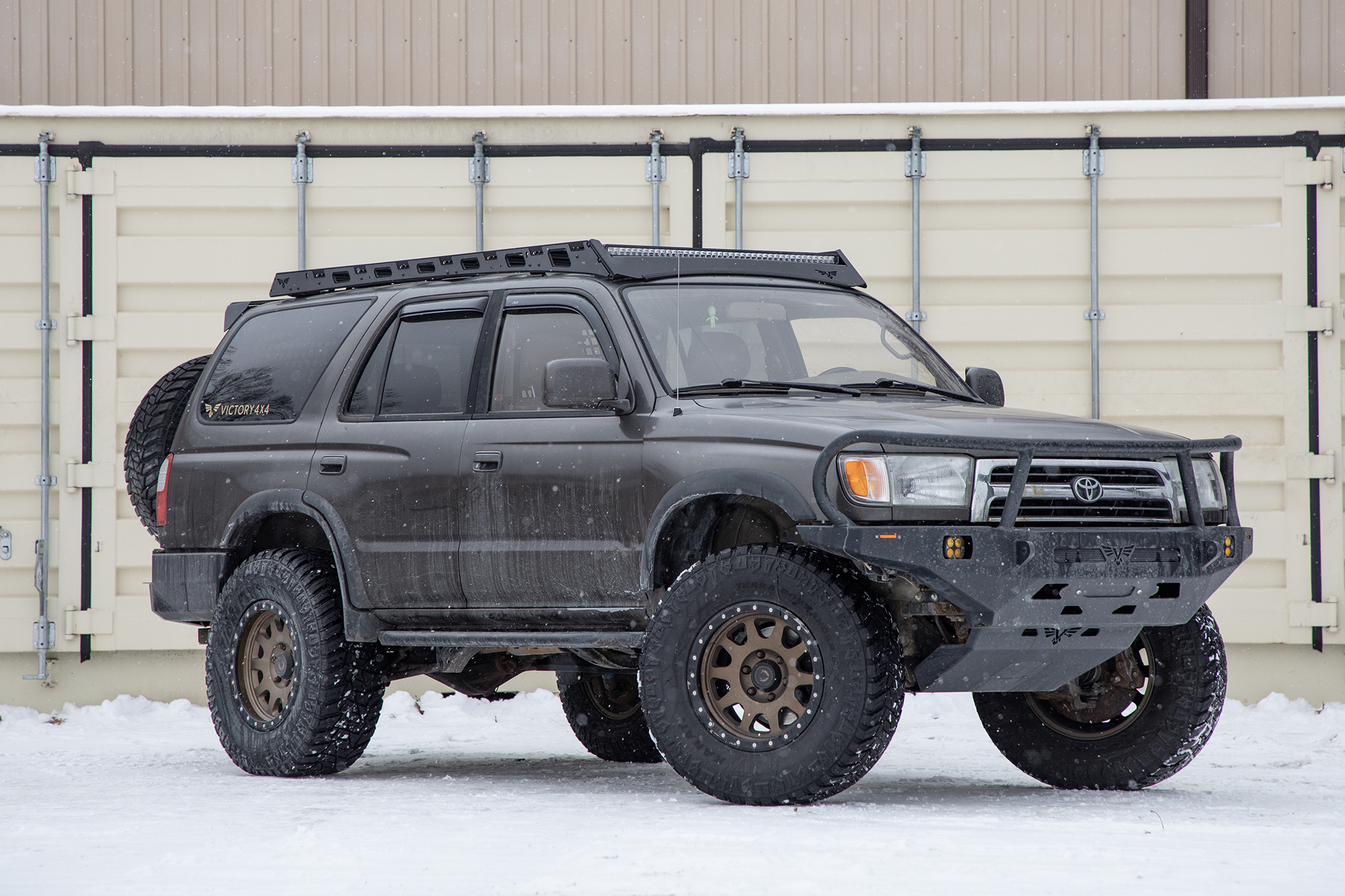

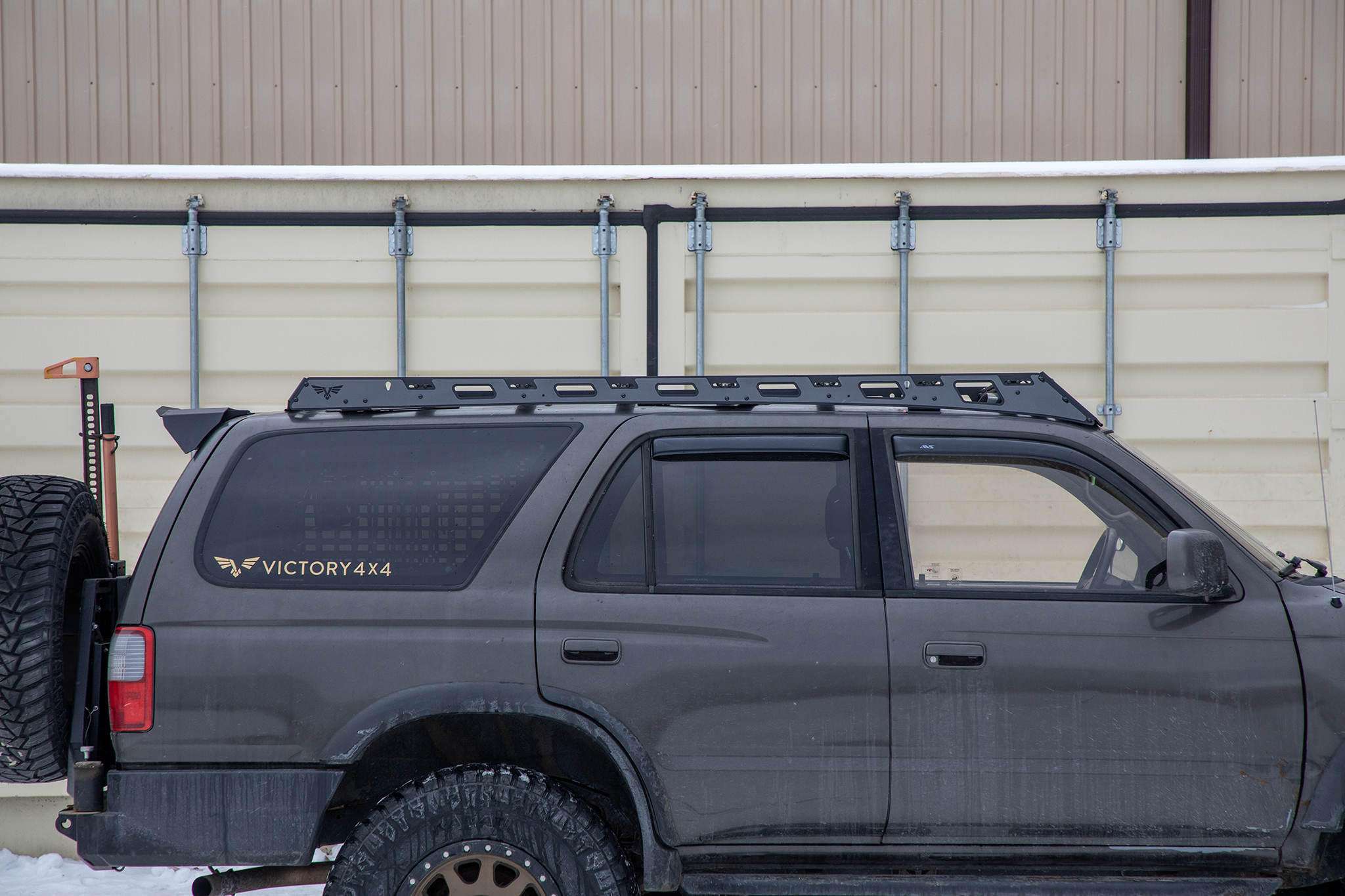

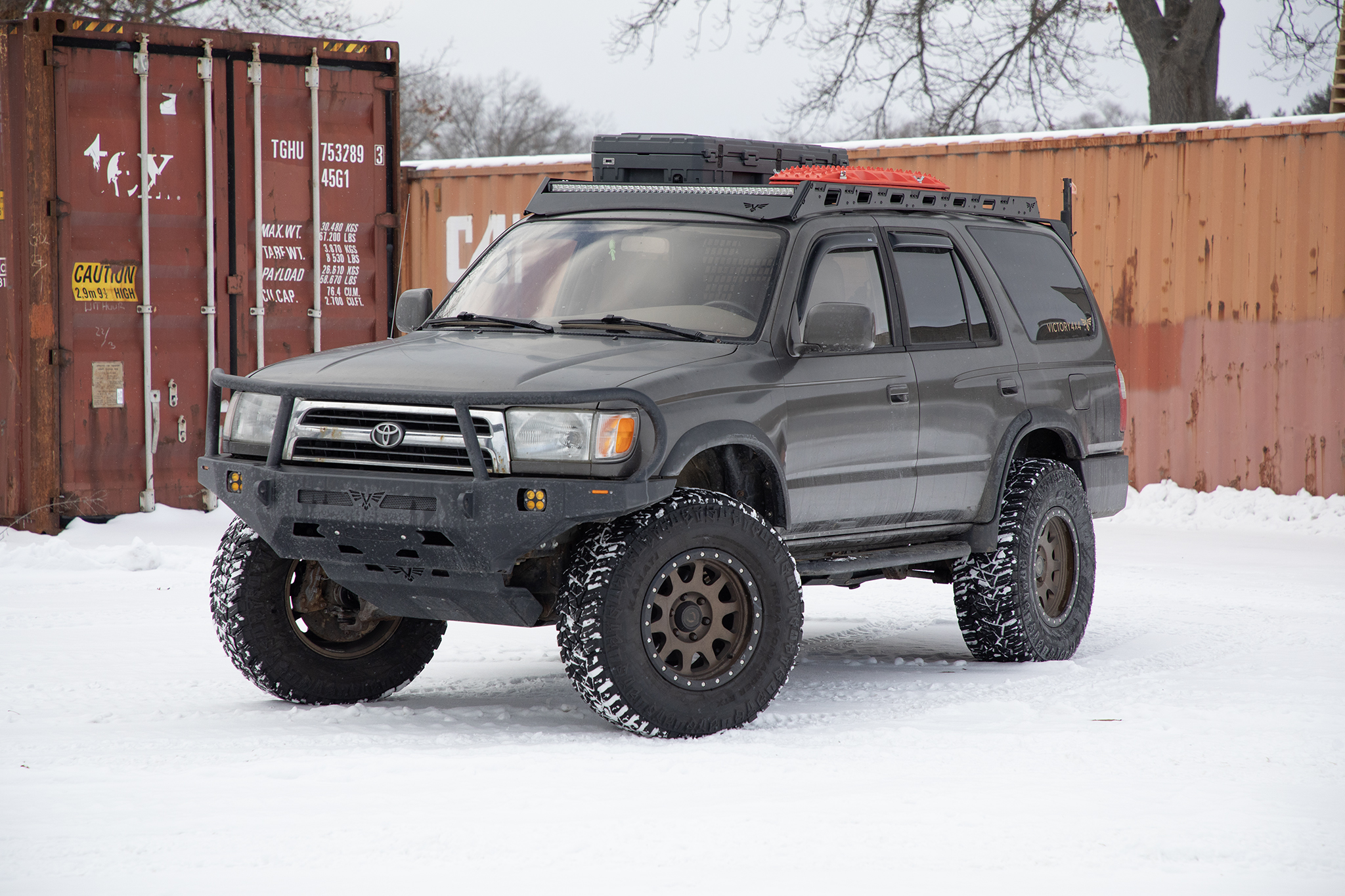

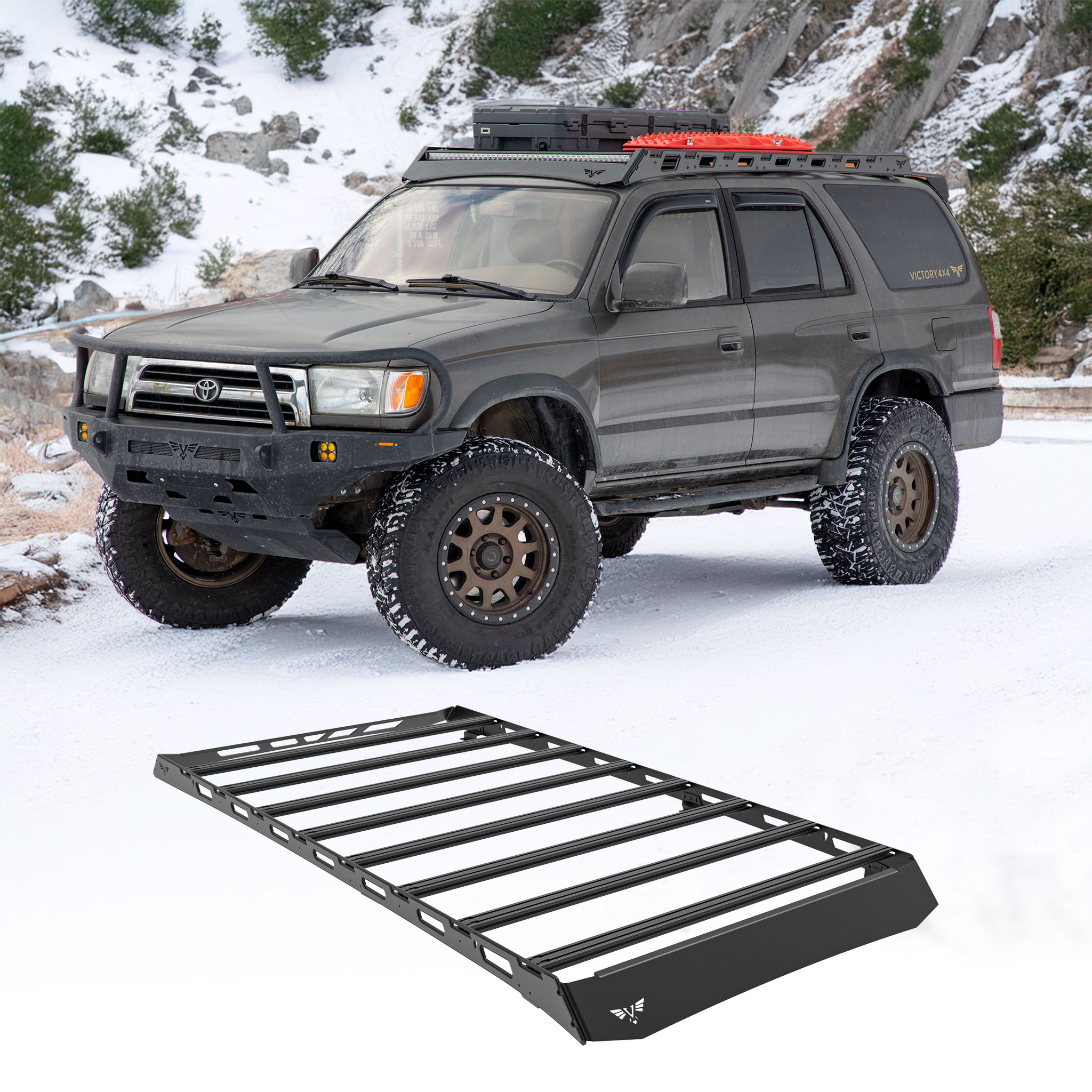

    Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)

    5.0 · 6 ratings
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    • Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)
    Fit at a Glance More questions? See the FAQ
    Fits
    1996-2002 3rd Gen Toyota 4Runner
    Size
    81" x 44.5" x 2.5", 49 lbs
    Load
    300 lbs dynamic, 1000 lbs static
    Install Time*
    Home: 1 day · Shop: 3 to 4 hr
    *Times are estimates and vary with vehicle condition and installer skill.
    $955.40
    Regular
    $1,124.00
    Black Friday All Month Sale – Save $168.60
    $14.95 Flat Rate Shipping

    Code: V4RRK-3G | Weight: 49 (lbs)

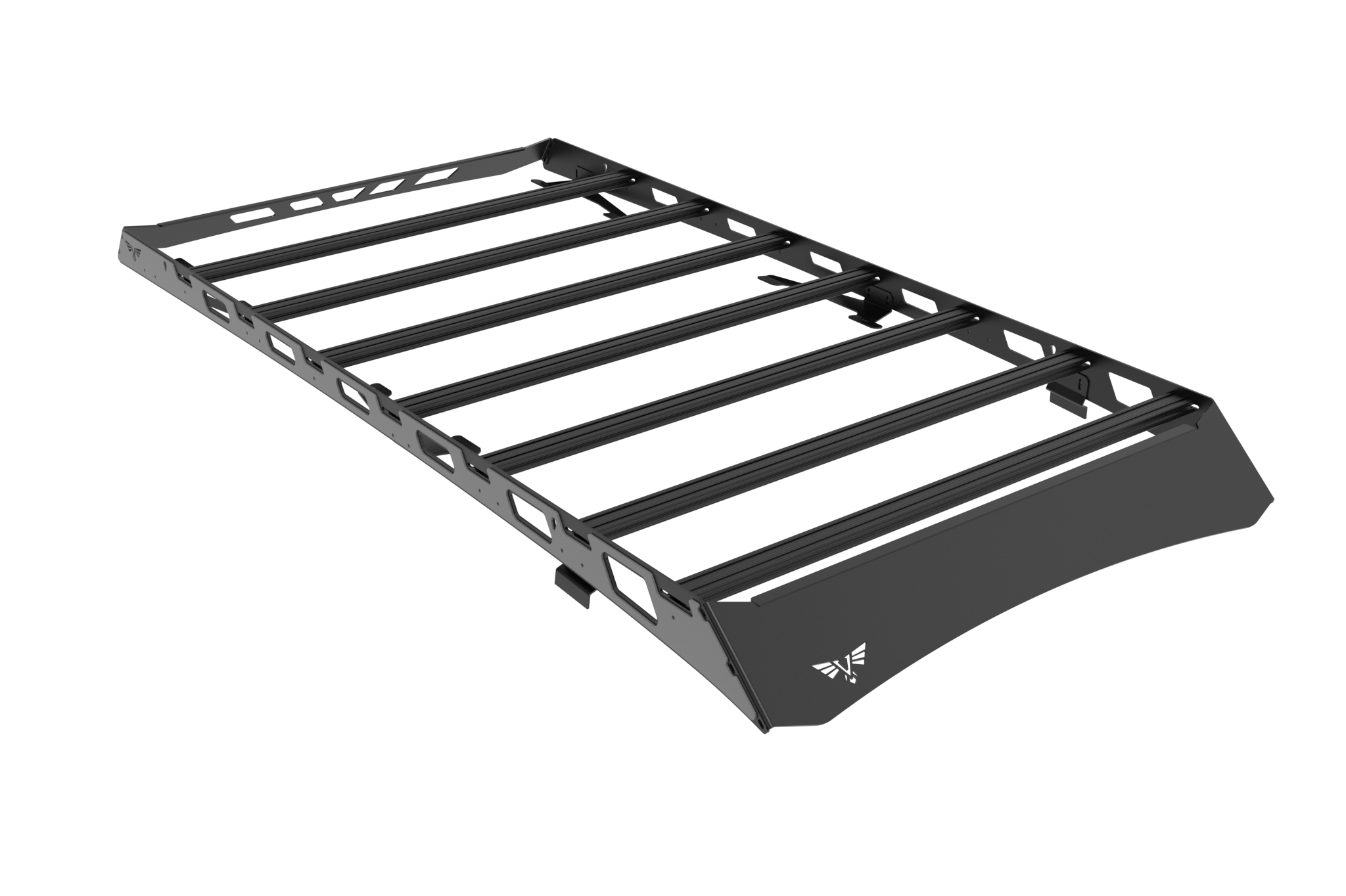

      Roof Rack | Evolution Series | Toyota 4Runner 3rd Gen (96-02)

      ✓ Vehicle: 1996-2002 Toyota 4Runner (3rd Gen)

      ✓ Finish: Stealth Black or Signature Silver Accents, satin textured powder coat

      ✓ Material: Laser cut aluminum side rails, 3/16" inner with 1/8" outer layer

      ✓ Rack Dimensions: 81" x 44.5" x 2.5"

      ✓ Weight: 49 lbs

      ✓ Load Rating: 300 lbs Dynamic / 1000 lbs Static

      ✓ Warranty: Limited Lifetime

      ✓ Made in USA: Made to order in Kalamazoo, Michigan

      Your 4Runner runs out of room quickly once recovery gear, camp kit and a cooler go in, and a roof top tent needs a platform you can trust overnight. The Evolution Series gives you that platform with a strong, low-profile rack that grows with your build, so your gear rides up top and the cabin stays open.

      Strength comes from layered side rails, a 3/16" aluminum inner rail backed by a 1/8" outer layer, which carry a 1000 lb static rating while keeping the whole rack at just 49 lbs. Versatility comes from milled t-nut drop-in spots and a convertible front fairing, so lights, awnings, tents and recovery boards bolt on wherever you need them. Every Evolution rack is laser cut, formed and bolted together with no welds, because welding softens aluminum around every weld.

      Want to see that strength in the real world? See what happened when a 200-year-old oak fell on an Evolution rack.

      Comparing brands? Read our 2026 buyer's guide: Who Makes the Best Roof Rack for a 4Runner?

      You also choose the look. Stealth Black gives you a clean profile that matches your factory trim, while Signature Silver Accents finishes the outer rail layer in textured silver for the Victory style that stands out at the trailhead.

      Victory 4x4 has built over 10,000 roof racks in Kalamazoo since 2019, and every one is made to order by the team that designed it.

      Built Strong

      • Layered side rails with a 3/16" inner rail and 1/8" outer layer, laser cut from aluminum for rigidity without the weight of steel

      • 1000 lb static rating, enough for a roof top tent and the people sleeping in it

      • Steel mounts made for the 3rd Gen 4Runner for a direct, secure fit

      • Powder coated crossbars that won't fade or turn purple in the sun the way anodized finishes can

      Built to Adapt

      • Milled t-nut drop-in spots let you add t-slot hardware without pulling the crossbars, so you can mount gear anywhere along the rack

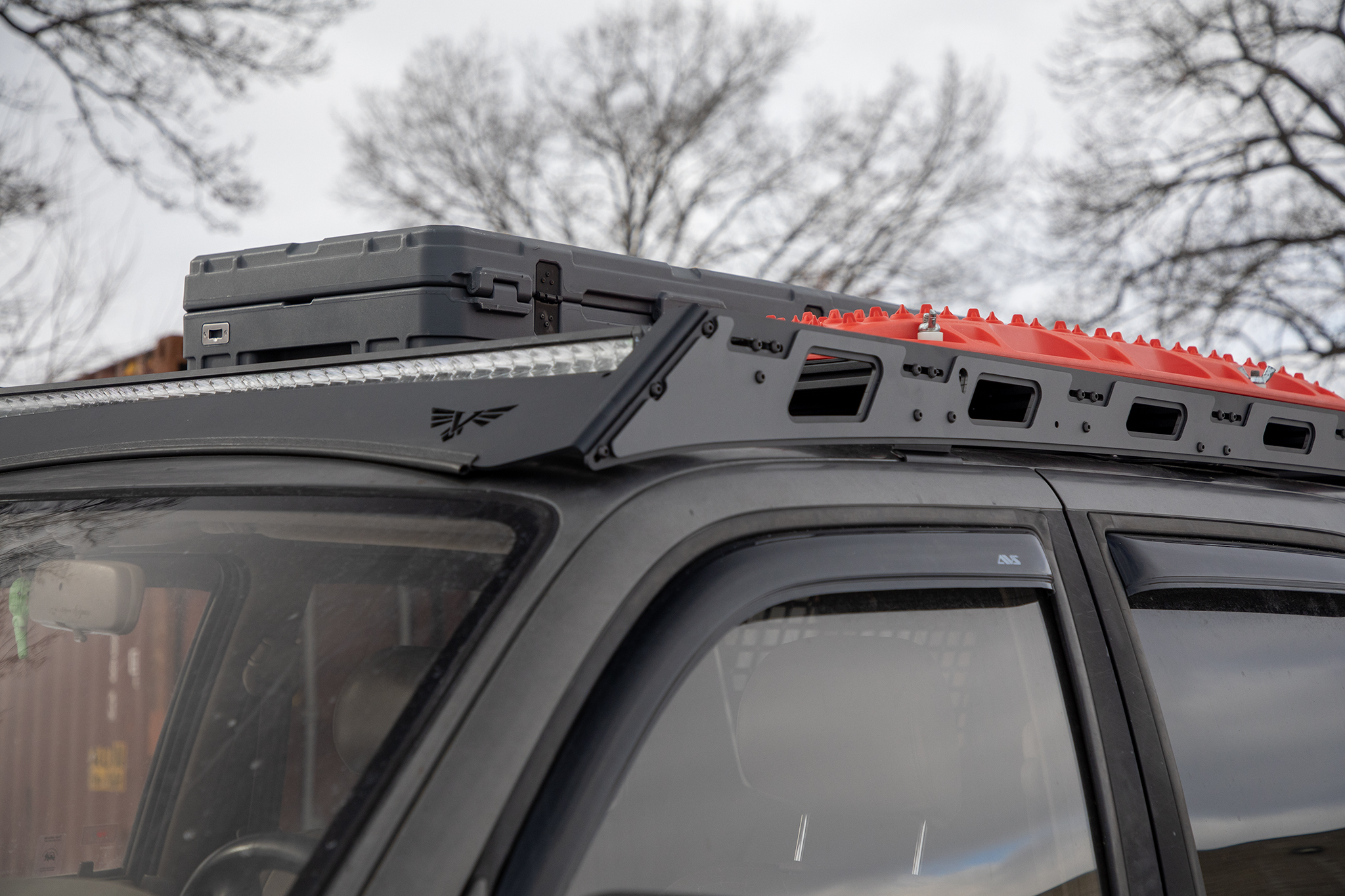

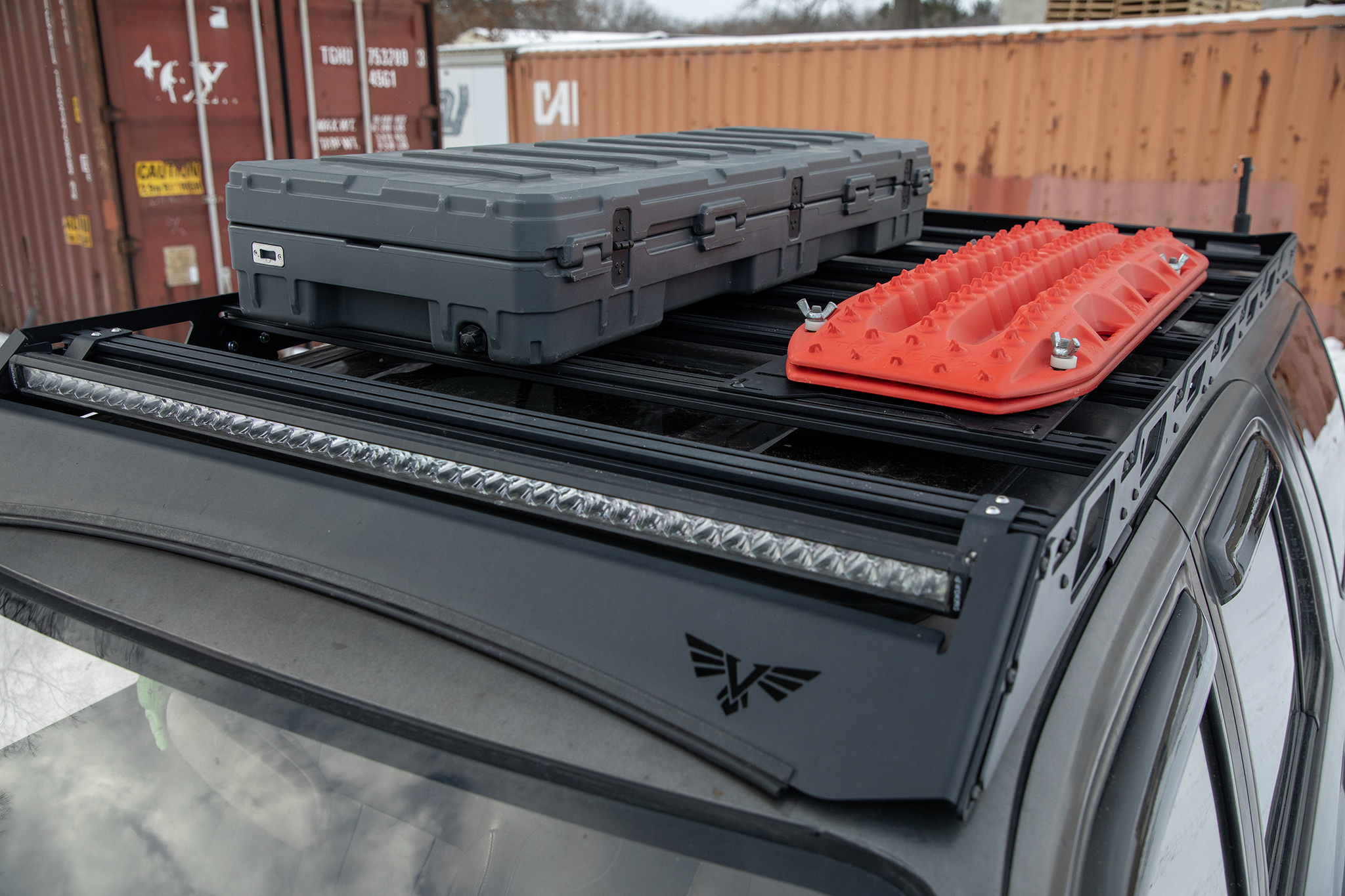

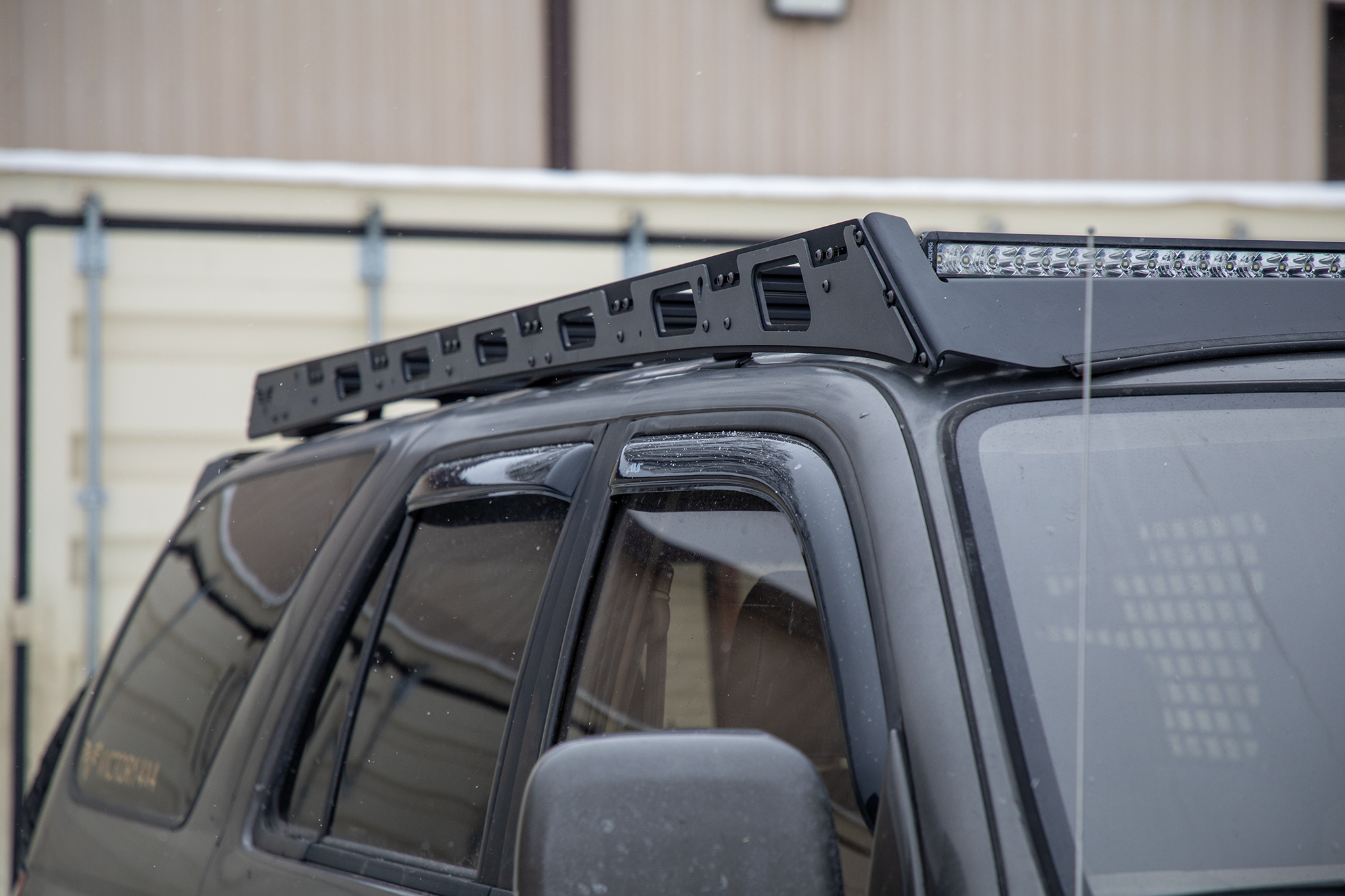

      • Convertible front fairing that sits raised for a finished look or drops down for a 40" single-row light bar

      • Fits roof top tents, awnings, recovery boards, lighting and our full line of rack accessories

      • Two finishes so the rack matches the build you have in mind

      Built to Last

      • Black stainless hardware included, ready to install out of the box

      • Paint protection film, anti-seize and Ultra Black sealant included

      • Full bolt-on install with no drilling

      • Limited lifetime warranty against material, manufacturing and design defects

      Accessories & Add-Ons

      Build out your setup with the Roof Top Tent Mounting Brackets, Awning & Accessory Mounts, Platform Panels and the Roof Rack LED Light Kit. Everything bolts straight to the rack's crossbars using standard t-slot hardware. Need extra hardware for more accessories? Grab the T-Slot Nut and Stud Kit (set of 12), or the T-Slot Nut and Bolt Kit and T-Slot Stud Kit. Browse roof rack accessories →

      Fitment & Notes

      • Fits 3rd Gen 4Runner (1996-2002)

      • Your sunroof tilts and slides normally with the rack installed

      • The rack sits 2.5" above the highest point of the roof

      • The light bar cutout version includes light bar mounting brackets. The cutout fairing fits a single-row LED light bar up to 41.25" lens housing width, and bars up to 43.5" (mounting stud width) fit with our mounts after trimming the fairing

      • We recommend paint protection film (included) under the front and rear fairings where they touch the vehicle, so trail dust can't scratch the paint over time

      • See full warranty details here.


    What comes with the roof rack besides the hardware?

    Every rack includes paint protection film for the contact points, anti-seize for the bolts and Ultra Black sealant for the roof mounts, so you have everything you need for a clean, protected install.

    Which vehicles does it fit?

    It fits the 1996-2002 3rd Gen Toyota 4Runner.

    How much weight can it hold?

    It is rated for 300 lbs dynamic (while driving) and 1000 lbs static (when parked).

    Will my sunroof still work?

    Yes. Your sunroof tilts and slides normally, and the rack sits 2.5" above the highest point of the roof.

    Can I leave out the crossbars so they don't block the view out of my sunroof?

    Yes, you can. If you leave the crossbars in, your sunroof still works like normal.

    How big is it and what does it weigh?

    The rack is 81" x 44.5" x 2.5" and weighs 49 lbs.

    Can I run a light bar?

    Yes. The light bar cutout version includes mounting brackets and fits a single-row bar up to 41.25" lens housing width. Bars up to 43.5" mounting stud width fit after trimming the fairing.

    Will the fairings scratch my paint?

    We recommend paint protection film (included) under the front and rear fairings where they touch the vehicle.

    Still have a question about fit?Talk with the team that builds it, right here in Kalamazoo. Mon to Fri, 8:30 AM to 4:30 PM ET.

    Customer Reviews

    5.0
    6 ratings · 6 written
    5★6
    4★0
    3★0
    2★0
    1★0
    Jul 23, 2026

    Easy build, easy installation

    Nice sturdy construction unlike how the Sherpa Matterhorn looks sorta flimsy, directions were pretty easy for the most part, easy installation, just make sure you have a friend or two to help, pretty happy I went with this one over the Matterhorn, saved a couple hundred bucks by not buying that one as well. Haven’t carried anything on it yet so I can’t speak on that behalf but wind noise also isn’t an issue whatsoever, I don’t even hear it when on the highway.

    Corey F.
    Apr 14, 2026

    Stop Window Shopping

    My only beef was my own mistake. I googled instructions instead of checking the website directly. Im absolutely stoked about my rack.

    Just buy it. The black and graphite accent plates are BEAUTIFUL.

    Kenneth
    Jan 23, 2022

    Just what I order

    True to description and worth the price. Assembly was simple enough. Hope it lasts!

    Andrea
    Oct 11, 2020

    After a lot of research choose this one

    I do like this rack - and I looked at arguably 95% of them out there. i love the fact I didn;t have to drill new holes through the roof. It is admittedly probably overkill for my use. I find that I'm hauling lumber a lot more unfortunately than overlanding gear. It looks handsome and although I have yet to fully research all that 80/20 accessories have to offer it seems like the modifications are endless. I find myself often having to tie things down to the side rails. My one suggestion for improvement if Victory wants this sort of thing is to somehow make the rail cut-outs' inside edges less sharp. No doubt that they will slice though taut rope tied through them. I solved it by fashioning a multitude of short swedged- 3/16 cable slings with thimbles which I feed through the cut-outs then tie-off rope to the slings. I suppose I could use an 80/20 eye fastener tie off to but I like a cleaner look and not leaving random stuff up there during everyday use. Cheers. Also I popped for the optional black hardware kit which I totally recommend.

    Sym
    Oct 8, 2019

    Full length with light bar cutout

    I was in the market for a full length rack. I had emailed others about the racks they offered. Victory 4x4 was the first and the fattest to reply to me. Mitchell had answered all the questions I had about the rack. I really liked that Victory's full length didn't come assembled already. It was nice to get everything to two boxes ready to assemble. The rack its self was really easy to put together. Very little wind sound at all from the rack. Also lead time was as advertised like they said. Like everyone else said they packaged he rack very well. The powder coating looked really good and wasn't damaged at all. I will recommend Victory to everyone I know in the market that's looking for a rack or anything Victory carries.

    Edgar
    Aug 9, 2019

    Easy and high quality

    Very impressed with how easy this was to put together and how bolt on it was. Video explained each step completely. Very thick and strong. Great product.

    Bernie

    Reviews come from our customers. Buyers are invited to rate their parts after their order ships, and those reviews are marked Verified Buyer. We publish positive and negative reviews alike.

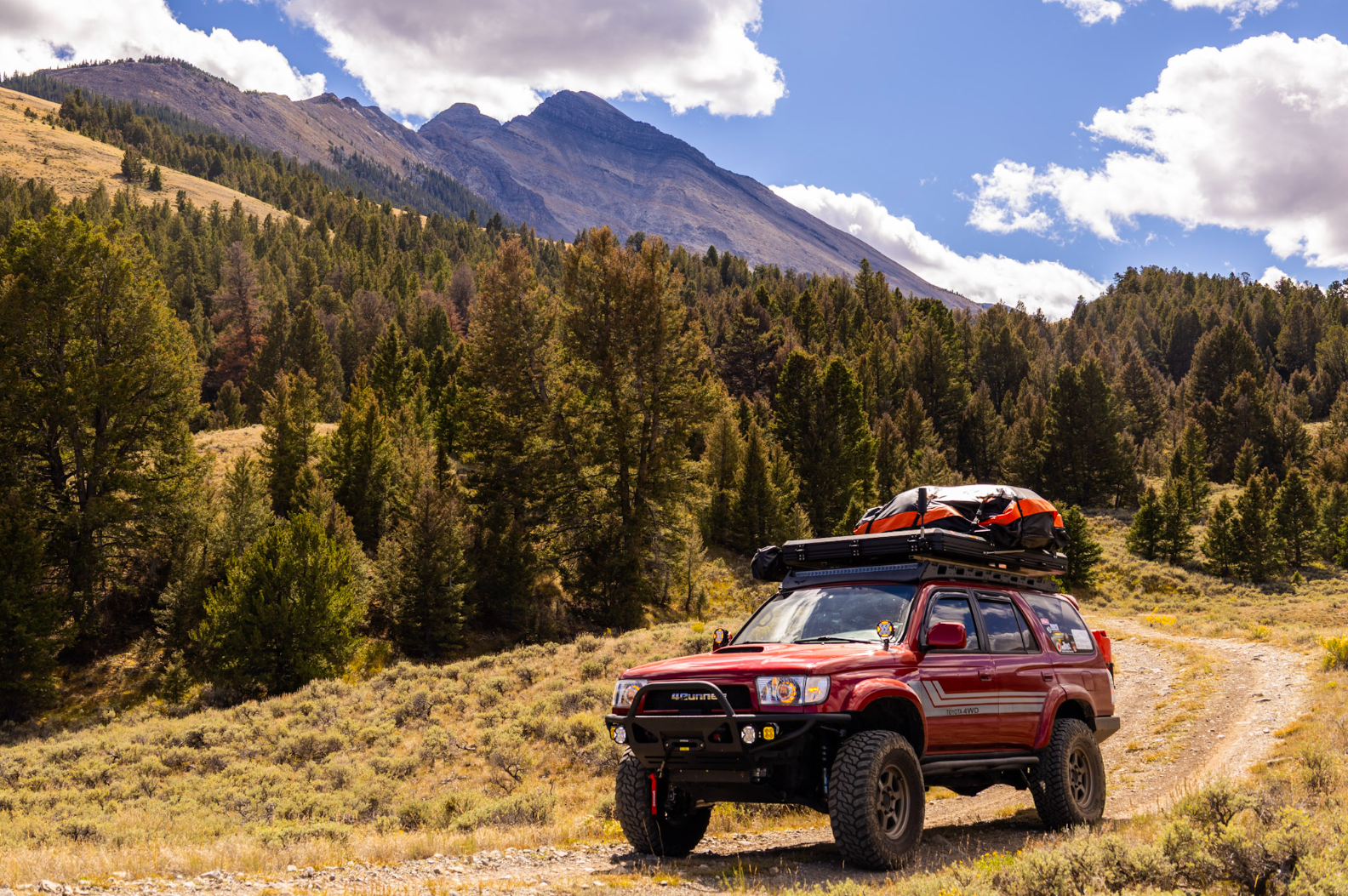

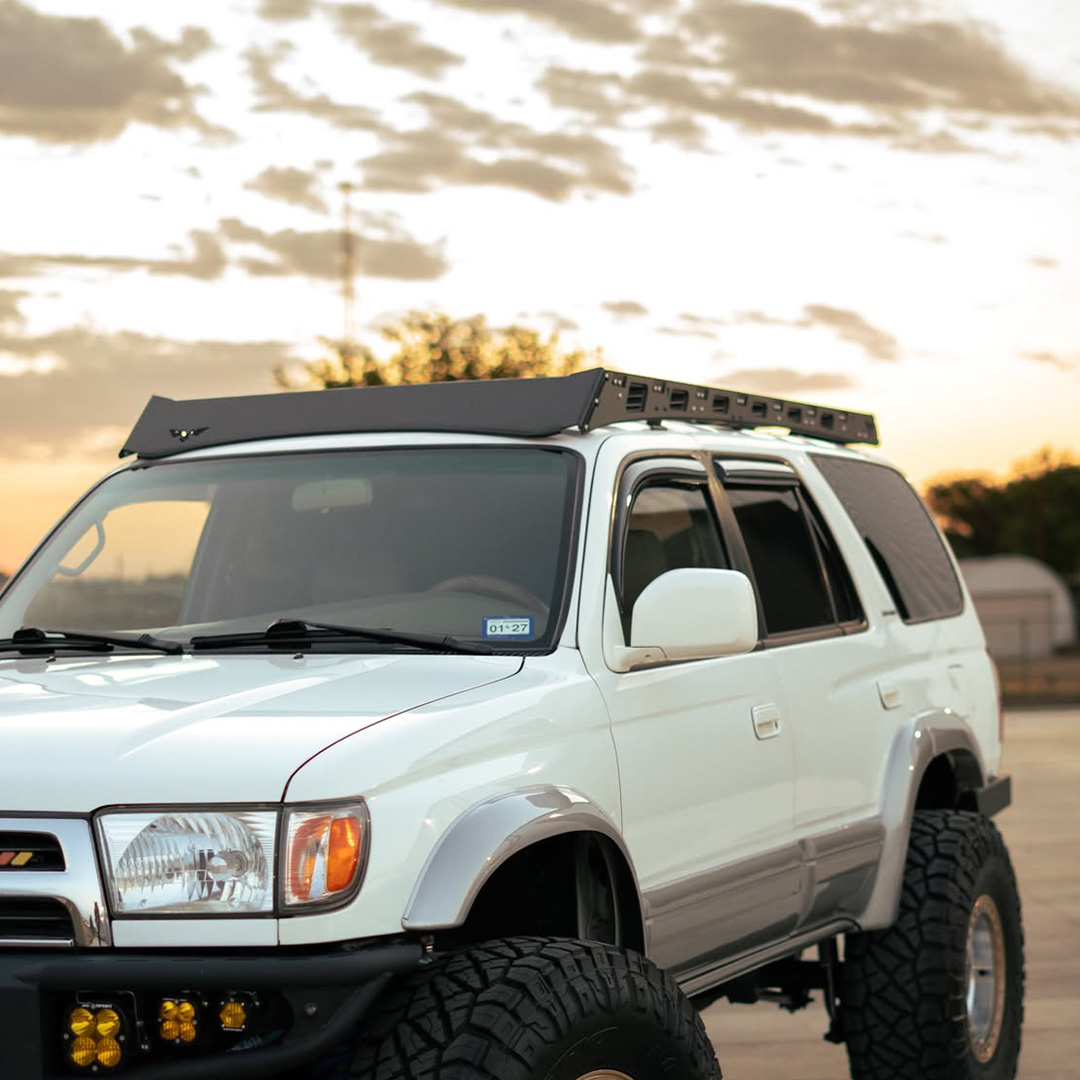

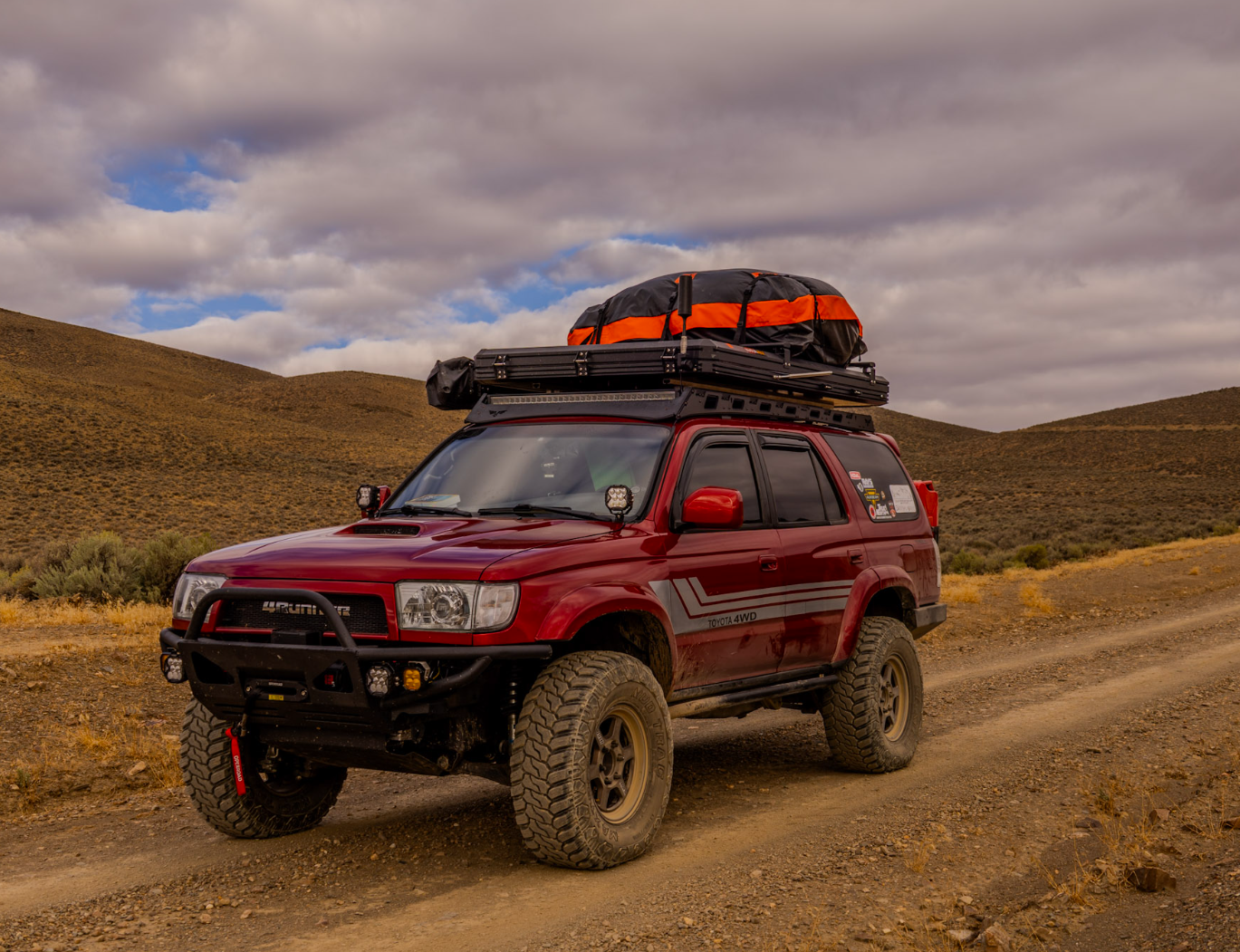

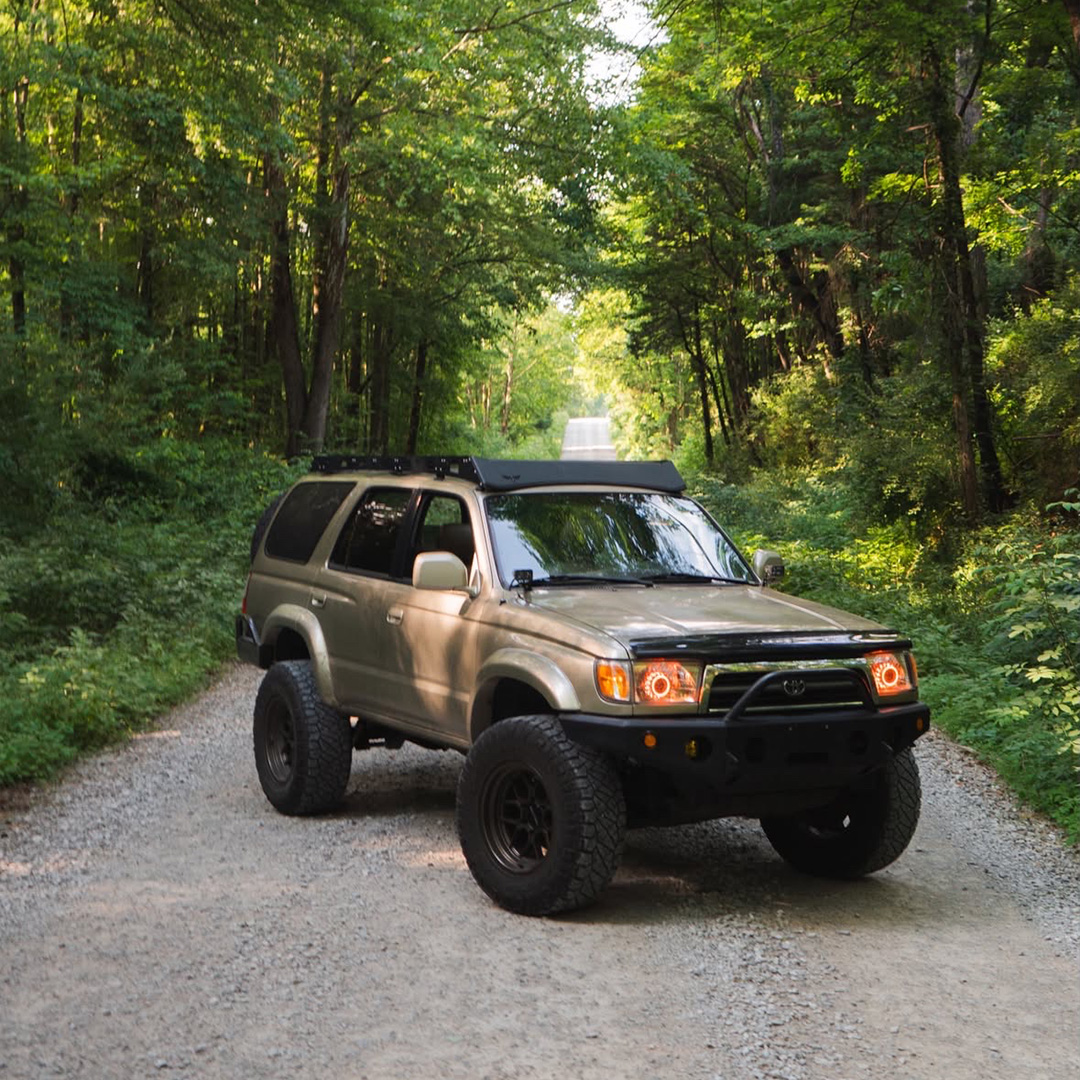

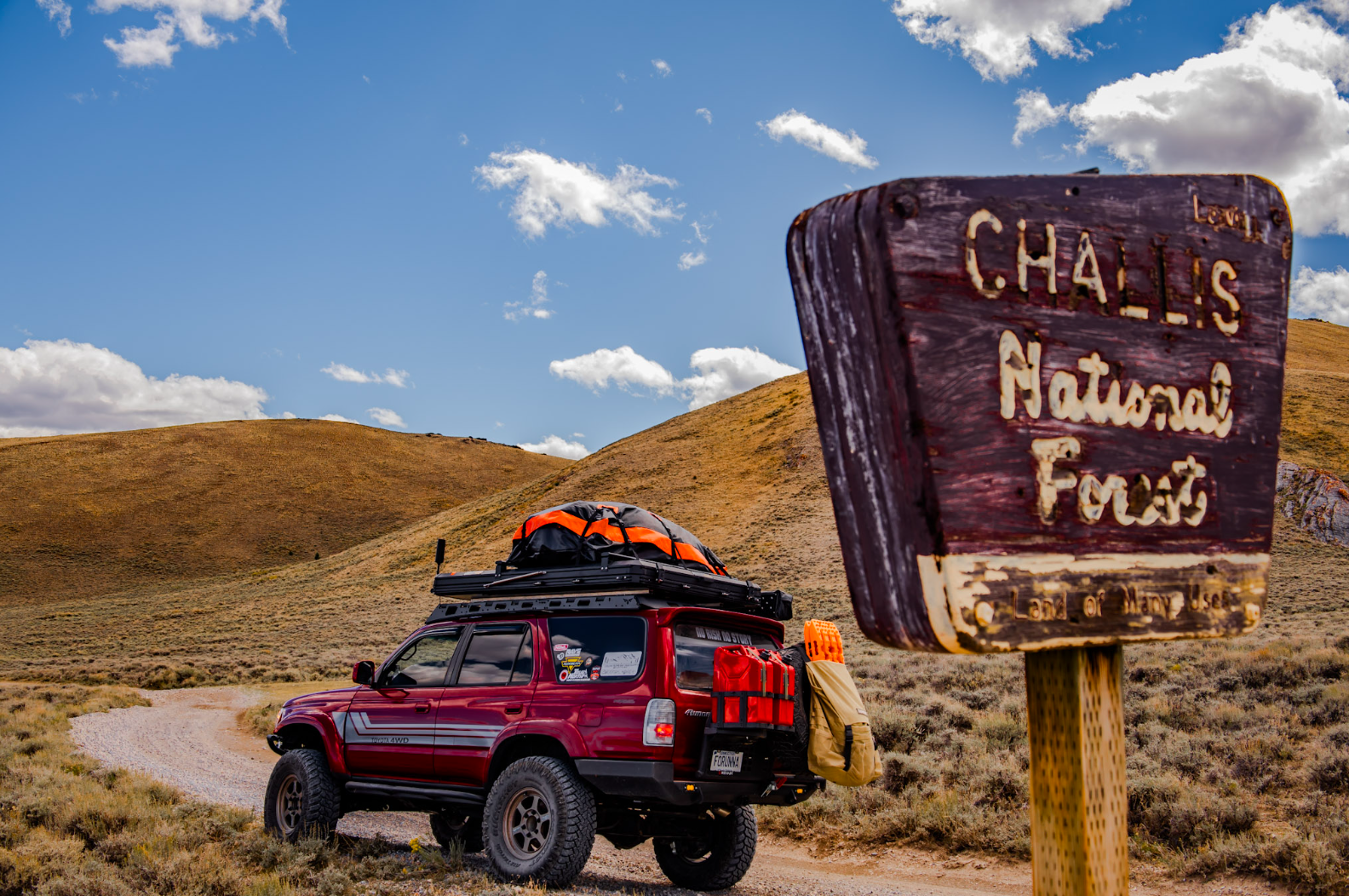

    Real builds from Victory4x4 customers.
