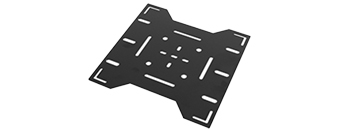

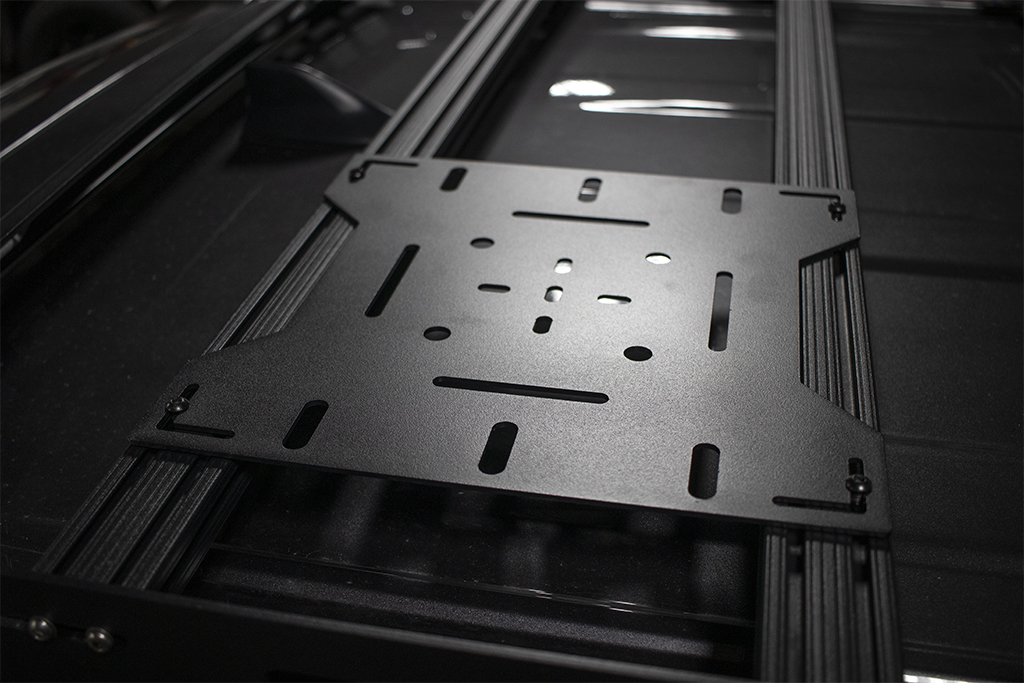

Roof Rack Accessory Mount
★★★★★
5.00/5 Stars. (4 Reviews)
$79.00
Code: VRKACM
Weight: 5 (lbs)
Free Shipping!
- Allows for mounting accessories
such as Rotopax Containers, Traction boards, Axes, Shovels, etc. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.
- Made form 11ga steel
- Includes mounting hardware

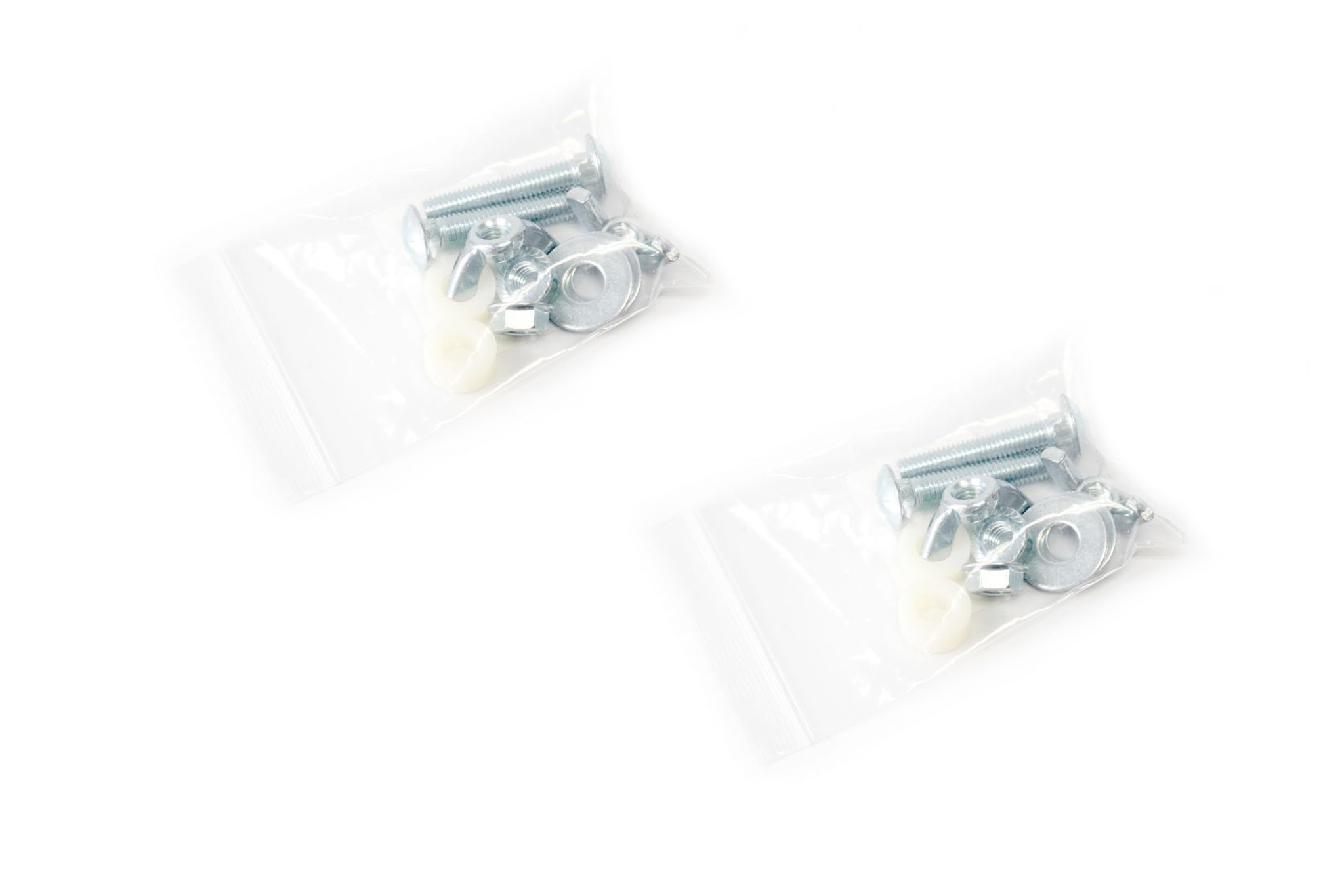

- Traction boards will require (2) qty panels and (1) qty Recovery Board Accessory Mount Bolt Pack (TRACBO-BP)
- Sold individually
- Made in the USA!
Looking for answers to common questions about us or our products? See our FAQ here.
14 Questions asked on Roof Rack Accessory Mount
•
Ask us anything
Q
Nate • 05/10/2020, 2:27:41 PM
What are the dimensions of these? Can they be used on the universal cargo rack?
A
05/11/2020, 2:36:52 PM
It would be easier to just drill the holes you need in the universal basket.
Q
Will Schäfer • 07/21/2020, 8:54:48 PM
Hi! Absolutely love the sliders I bought from you, but went with the Prinsu rack before I discovered you guys. Are these accessory mounts comparable with the Prinsu? Thanks!
Will
A
08/05/2020, 11:01:24 AM
They should work just fine. Glad you love your sliders!
Q
Tony Vizzini • 12/12/2020, 9:34:06 PM
How do you mount a rotopax mount to your roof rack accessory mount? Do you bolt the aluminum piece to your mount without the rotopax steel flange or did I need to drill holes?
A
12/15/2020, 1:34:26 PM
Correct, you don't need the steel rotopax adapter. Just mount he aluminum mount directly to the panel.
Q
David • 03/18/2021, 4:39:25 PM
What is the length and width of this? I'm considering mounting it to my rear bumper swing out with bolt holes measuring 12" x 12" so I can vertically mount my rotopaxs.
A
03/22/2021, 6:22:06 PM
It's roughly 13" x 13"
Q
Aaron • 04/01/2021, 3:10:22 PM
I have 4 of the mounting plates now and have purchased 4 rotopax to go on them (2 gas, 2 water). I can figure out for the life of me how to attach the rotopax mount to these plates and be able to utilize all 4 bolts on the rotopax mount. No matter how I rotate or shift around on the plate, I can only get 2 adjacent holes on the rotopax mount to line up with the variety of holes/channels in the mounting plate. What's worse, with only 2 bolts, as I tighten down the rotopax, it starts to lift up the side of the plate that does not have bolts. Is there somewhere that indicates which holes can be used? I would rather not have to drill additional holes in your mounting plate. Thanks.
A
04/02/2021, 1:17:54 PM
The mounts are designed to not use the the mounting adapters on the Rotopax mounts. The aluminum mount will bolt directly to the panel.
Q
Andrew Copeland • 04/24/2021, 11:05:09 AM
I was wondering if this accessory panel will work with the max trax mounting pin set. Thank you
A
04/28/2021, 5:52:40 PM
Yes it will.
Q
sam • 05/03/2021, 1:36:39 PM
Does this mount plate come with the T-slot nut and bolt?
A
05/05/2021, 1:19:38 PM
Yes, comes with 4.
Q
Matt • 06/13/2021, 10:40:08 PM
Are these compatible with your factory crossbars for 5th gens?
A
06/25/2021, 11:53:18 AM
Yes.
Q
Brian • 10/11/2021, 5:01:04 PM
is this compatible with gobi racks?
A
10/18/2021, 11:11:00 AM
It is not. These are designed to mount with T-nuts to our roof rack crossbars.
Q
Robin Case • 02/07/2022, 3:26:38 PM
Is this compatible with the xbull traction boards, and how many would be needed?
A
02/08/2022, 1:16:10 PM
They are designed to work with Maxtrax and Tread Pro boards. The xbull boards use different hole spacing and you will need to drill holes in the Accessory Mounts for them to work. You need two Accessory Mounts for a pair of traction boards.
Q
Kevin N • 02/27/2022, 11:15:28 PM
What’s the dimension of this? Need a tray that’s at least 17 inches for your universal cargo rack. (I need a piece to mount below the tray intentionally to retrofit something.) thank you!
A
03/04/2022, 2:04:39 PM
They are 13" x 13"
Q
Michele S. • 11/13/2022, 11:54:11 PM
What’s the weight capacity on these? Could a person stand on them?
A
11/14/2022, 1:24:19 PM
75 lbs dynamic, 150 static.
Q
Iain • 11/30/2022, 6:05:52 PM
I'm looking to mount two Tred Pro boards onto my Yakima Lock N Load platform, but with the boards running across (not along) the direction of the rails. In your pic, you're showing Tred Pros mounted along the length of the rail; I need to go in the other direction. Will two of your plates and one set of the traction board hardware enable this?
A
12/01/2022, 10:54:56 AM
We aren't sure our plates have the correct hole spacing to work with a Yakima Lock N Load platform in either direction.
Q
Kirk • 01/02/2023, 11:55:21 AM
Is this product compatible to be mounted to the bed rack with the universal tire carrier?
A
01/03/2023, 2:29:09 PM
The spacing between the upper mounting bars doesn't get narrow enough to mount this plate.
4
0
0
0
0
Gary (Colorado) | March 11th, 2022
I spent literally hours trying to get these panels to work for me. I was intending to mount recovery boards to them. Victory4x4 didn't clearly state in the listing for them that these will likely ONLY work with Maxtrax. I got another brand, which stacked up too high for their mounting hardware. I was told to go to a hardware store to find longer bolts. I went to 4 stores, none of which had the correct sized bolts (& correct material). I ended up only finding zinc bolts, which are terrible for outdoor use - I sprayed them with Rustoleum hoping that'd do the trick. I again spent a couple hours trying to get my DV8 recovery boards installed, and they never fit correctly (the third party mounting hardware didn't help this cause). Long story short, I threw these boards away, they were useless for my needs. I can't speak to the quality of the material - it seems great, but I didn't get to use them. They probably work for other applications too, but again, mine were for recovery boards only. If you have Maxtrax brand, these will work. Otherwise, don't bother. I wish they'd said at the start that these will only fit one type of board.
Alex Meyer (Seattle, WA) | April 10th, 2021
These roof rack accessory mounts are heavy-duty and do exactly what I had hoped! I purchased 4 of these and am currently using them to mount Yakima Control Towers to my rack so I can mount my Yakima Sky Box above the load bars. But I'm sure they will get plenty of good use with other accessories as needed. Thanks Victory! You saved me the headache and expense of having to fabricate something specifically for this application.
(I'd be happy to share pictures if there is a way to upload them ...)
Ryan L (Colorado) | March 27th, 2020
I'm using this to attach my rotopax for the time being but I'm sure it'll serve a variety of applications over the years, as I've changes the roof rack configuration a bunch since I've added more and more mods to my Runner.
Brad Jansen (Colorado) | February 28th, 2020
Ordered 4 for my Victory Roof Rack and they work great. Easy to install and numerous holes to choose for securing the mount to the rack. Unlike other brands that "slide" into the roof rack cross members, the Victory mounts are secured by bolting it to the cross member and can be relocated on the roof rack in minutes. Great product and will purchase more if needed.
Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
