Roof Rack Tie Down Rings
★★★★★
5/5 Stars. (1 Review)
$20.00
Code: 046-0065
Weight: 1 (lbs)
Free Shipping!

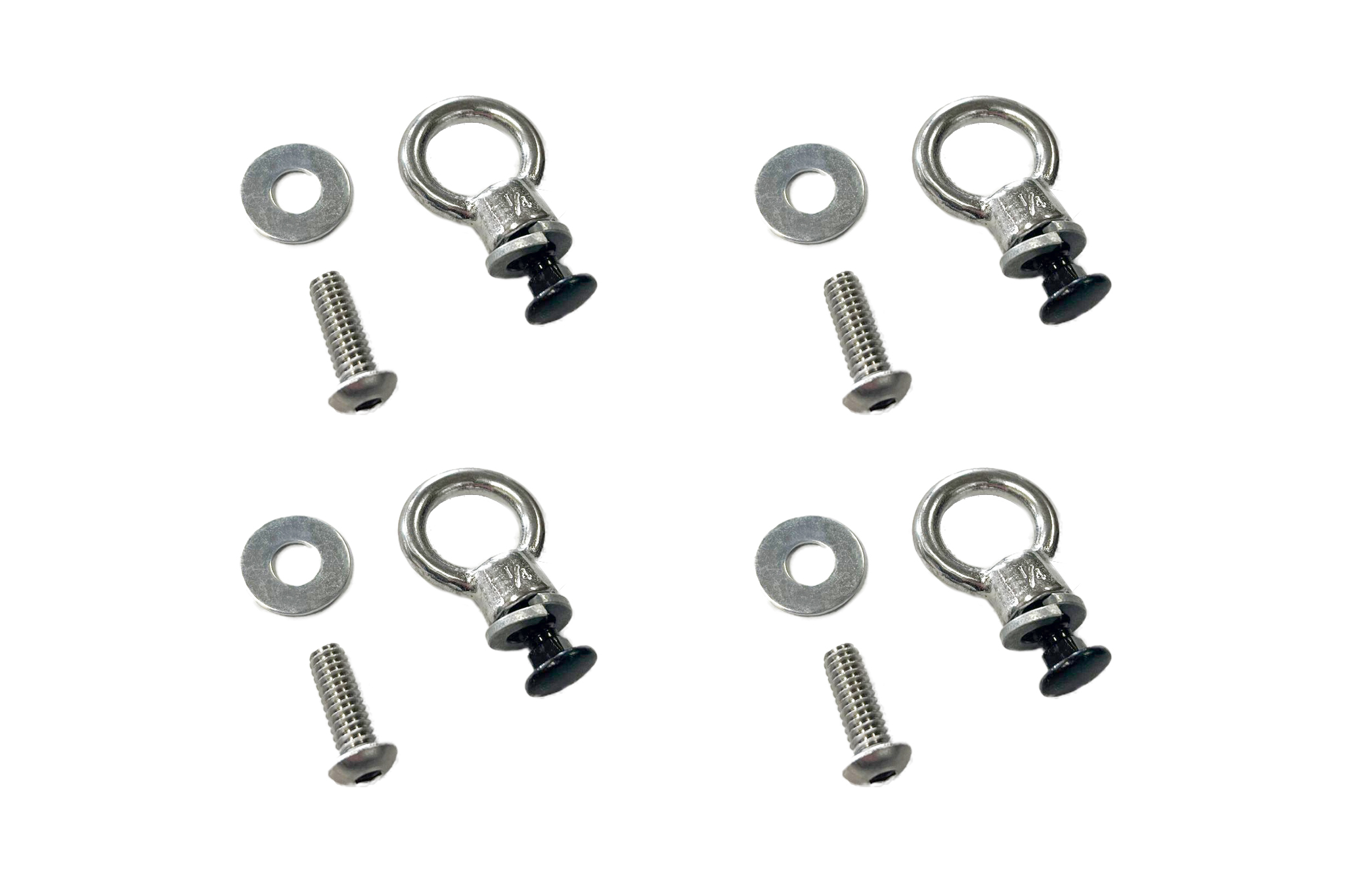

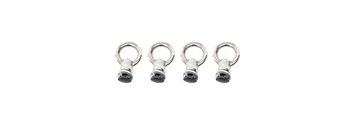

- Roof Rack Tie Down Rings
- For all Victory 4x4 Roof Racks
- Set of 4
- Work with 4Runner Factory Rail Crossbar
Customize your tie-down points to whatever you happen to be hauling!
Looking for answers to common questions about us or our products? See our FAQ here.
15 Questions asked on Roof Rack Tie Down Rings
•
Ask us anything
Q
Kyle • 08/28/2020, 3:57:25 PM
Are these available powder coated?
A
09/03/2020, 9:03:48 AM
They are not.
Q
Matt • 09/24/2020, 1:34:43 AM
Will these work with your OEM cross bar replacements?
A
09/24/2020, 11:01:43 AM
The carriage bolts included will be too small for the slots in the bars, but you could just use regular 1/4" bolts and washers from the hardware store with the rings.
Q
Adam Scott • 12/18/2020, 5:39:07 PM
Are these the only tie downs that work with your rack? My existing tie downs are hex bolt style and do not fit into the t-slot on my V4x4 rack.
A
12/23/2020, 5:37:41 PM
These are the only ones that we sell that work. There may be others on the market, but we haven't tested.
Q
Matthew Crumpler • 03/06/2021, 7:56:10 AM
Do these work with the Victory 4 runner cross bars I bought?
A
03/08/2021, 1:18:58 PM
They work with any of our roof racks, but aren't designed for the 4Runner crossbars (V4RRK-CS)
Q
Jennett • 06/11/2021, 6:02:34 PM
Is this all I need to use these or will I need to also use the t-slot nut with these?
A
06/25/2021, 11:53:18 AM
They include the t-slot nuts.
Q
brian • 06/25/2021, 3:00:46 PM
What is the weight rating for these brackets? I did not find anything listing this.
A
07/08/2021, 1:15:34 PM
The only data we have on them is 132 lbs safe working lifting load. These are not rated for overhead lifting however.
Q
Gil Villanueva • 06/27/2021, 2:25:30 PM
Will these fit the Land Rover OEM rack for Defender 2021?
A
07/08/2021, 1:15:34 PM
Not sure, sorry.
Q
brian • 07/08/2021, 2:31:05 PM
I had previously asked about weight rating and this is a follow up.
Is it possible to get something like what is provided here (my selection was example only I know dimensions do not match exactly)?
https://www.mcmaster.com/eyebolts/
https://www.mcmaster.com/33045T77/
https://www.mcmaster.com/mvC/library/20170918/33045T770_304%20STAINLESS%20STEEL%20EYEBOLTL.GIF
A
07/23/2021, 10:58:16 AM
We don't have that data, sorry.
Q
Jerry • 08/12/2021, 1:54:06 AM
What material are these made from? Chrome plated steel? Stainless steel?
A
08/12/2021, 4:22:04 PM
304 Stainless Steel
Q
Cohen Bruce B. • 11/22/2021, 10:58:21 AM
Will these fit 80/20 series 15? I have an Overland camper and that is what the OEM used on the rack.
A
12/01/2021, 9:39:41 AM
Our racks use 1/4" hardware. Looks like series 15 might use 5/16", but have not tested to confirm.
Q
Mike • 07/11/2023, 1:21:13 AM
Will these work on the GoFast Beef Rack Load Bars?
A
08/04/2023, 4:31:40 PM
These are specific to 80/20 10 series extruded aluminum bars.
Q
Bharath G • 12/12/2023, 11:26:56 AM
Hi,
Am looking to add a bunch of Roof Rack Tie Down Rings (Code: 046-0065) to my Victory 4x4 roof rack (for my Lexus GX460). The main purpose would be for to haul my fullsize spare tire on the roof (tie down). I have 17 inch Method 702 wheels with falken wildpeak at3w 285/70r17 - so that would be around 90 lbs of static weight.
Request your guidance if the above mention part would be a good fit for my usage.
A
07/17/2024, 1:44:23 PM
Tie down rings would work for that, however an accessory mount can be bolted directly into the crossbars and you can attach one of our universal tire mounts to that accessory plate, for a more a secure mounting surface. Here are links to both products.
https://www.victory4x4.com/product/VRKACM.html
https://www.victory4x4.com/product/UNI-TM.html
Q
Ryan Noruzi • 03/08/2024, 8:03:03 PM
Will these work with the other roof rack bars?
A
06/05/2024, 5:01:03 PM
This hardware will mount into any roof rack that uses 80/20 10-series extruded aluminum bars.
Q
Drew • 05/27/2024, 10:16:02 AM
What is the inner diameter of the eyelet/ring?
A
01/08/2025, 4:35:02 PM
3/4"
Q
Jeff • 09/28/2024, 4:12:59 PM
I have the 4Runner Roof Rack.
I see there are two bolts per ring. What is the stainless bolt for?
A
01/08/2025, 2:54:47 PM
Those would be used for applications other than extrusion channels of our roof racks, ie: bolting through a bed rack or bed slide, etc.
0
0
0
0
1
Austin L (Texas) | July 5th, 2022
These are great. They are easy to install. They hold firm. The bolts could be a couple mm shorter so they don't clog the loop though.
