Tundra Roof Rack | (07-21)
★★★★★ ★★★★★ 4.70/5 Stars. (10 Reviews)

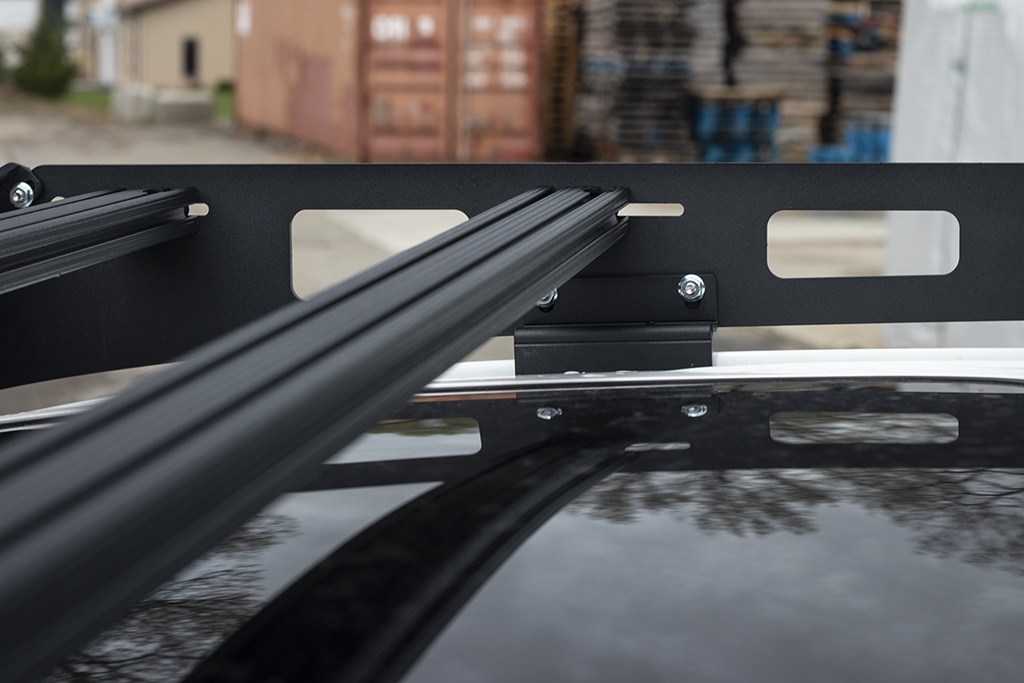

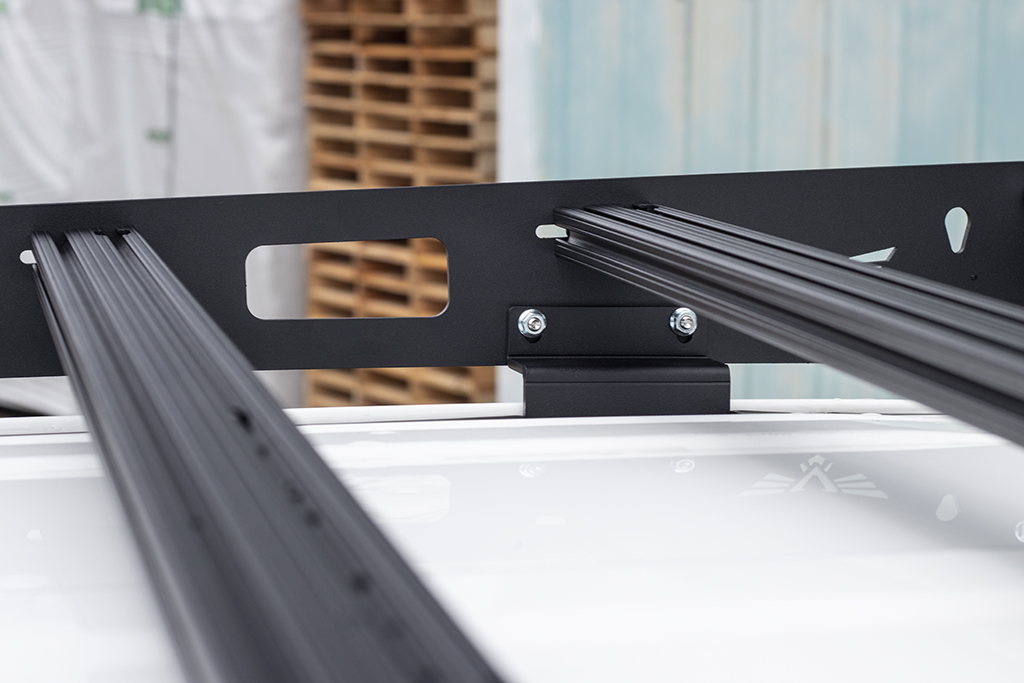

- CNC cut and formed from 3/16" aluminum (steel mounting brackets) with extruded aluminum rails
- Easy bolt together installation
- Drilling required
- Available with or without 40" lightbar cutout
- Lightbar cutout version includes light bar mounting brackets
- Cutout fairing designed for 41.25" max lens housing width single row LED light bar. Up to 43.5" (mounting stud width) bar will fit with our mounts, but trimming of the fairing will be required
- Milled T-nut access points
- Hardware Included
- Black stainless hardware available, see related products
- Made in the USA
- Free shipping!
This roof rack system allows for mounting almost anything, freeing up valuable bed space for other trip essentials. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.
We recommend using paint protection film under the front and rear fairings, where they contact the vehicle. This will prevent dirt and debris from scratching the paint over time.
Looking for answers to common questions about us or our products? See our FAQ here.
30 Questions asked on Tundra Roof Rack | (07-21) •
Ask us anything
Q Jeff Tamietti • 05/09/2020, 11:48:52 AM What is the weight capacity of the Tundra crew max roof rack?
A 05/11/2020, 2:36:52 PM Toyota rates the Tundra roof with a factory rack at "Max load 165 lbs evenly distributed." Our rack itself can handle significantly more weight than that, and we've had 250lbs dynamic weight on it without issue, static capacity is certainly well above that. All these weight will be at your discretion as they are above Toyota "recommended" capacities. If you need more information please contact us directly at [email protected]
Q JEFF J STANGE • 06/10/2020, 1:47:51 AM im looking at buying one of this but wanted to know what bracket system i would need to install a bike rake or kayak rack? or you make a system for just that?
A 06/10/2020, 4:43:34 PM We don't make anything specifically, but many mounts can be bolted or clamped to the bars of these racks.
Q brent sowul • 06/15/2020, 10:16:50 PM what are the dimensions, specifically how wide is it?
A 06/16/2020, 10:12:23 AM The crossbars are 54" wide.
Q Kassie • 07/08/2020, 1:11:54 AM Does the KC gravity pro 6 lights work on this rack for a 3rd gen?
A 07/13/2020, 5:03:20 PM We have not tested this.
Q Will Bedell • 07/12/2020, 7:09:46 PM How long is the platform for the Tundra double cab? Looking to do a solar system and don't want the panels to hang off the rack.
A 07/15/2020, 1:48:15 PM Right around 63" of usable length.
Q Nick Hatchett • 07/13/2020, 11:17:08 AM Does this rack allow all operations of the sunroof on the Crewmax?
A 07/13/2020, 5:12:22 PM Yes it does.
Q Edsel • 08/07/2020, 10:39:24 PM Can I install a roof tent on this rack?
A 08/11/2020, 5:22:43 PM Physically, the tent will install. Please note Toyota rates the Tundra roof with a factory rack at "Max load 165 lbs evenly distributed." Our rack itself can handle significantly more weight than that, and we've had 250lbs dynamic weight on it without issue, static capacity is certainly well above that. All these weight will be at your discretion as they are above Toyota "recommended" capacities. If you need more information please contact us directly at [email protected]
Q Kevin • 08/09/2020, 11:40:31 PM Will this rack work for mounting an RTT? Planning on running a softopper over the bed and need somewhere to put the tent.
A 08/11/2020, 5:32:46 PM Physically, the tent will install. Please note Toyota rates the Tundra roof with a factory rack at "Max load 165 lbs evenly distributed." Our rack itself can handle significantly more weight than that, and we've had 250lbs dynamic weight on it without issue, static capacity is certainly well above that. All these weight will be at your discretion as they are above Toyota "recommended" capacities. If you need more information please contact us directly at [email protected]
Q Chris Poff • 08/10/2020, 4:10:45 AM Can this be used with an after market 3rd brake light? Like Dirt Kartels w/Antenna mount for com radios
A 08/11/2020, 5:32:46 PM We have not tested the rack with this configuration.
Q Dusty • 08/30/2020, 4:00:50 PM I am looking to eventually mount a rack on top of my camper shell as well as the roof of my 2010 double cab tundra. What height is the cab rack you make and do you sell/make anything that would compliment it on the camper shell as well? I just want them to be at the same height.
A 09/09/2020, 3:26:39 PM Check out this product https://www.victory4x4.com/product/VRKCAP.html
Q Thayne • 09/11/2020, 5:26:45 PM How tall does it sit off the roof?
A 09/14/2020, 3:57:08 PM Around 2.5" to 3" above the roof.
Q Jason Orgeron • 10/21/2020, 1:05:21 PM Do you sell the light bar?
A 10/26/2020, 5:00:50 PM Yes, see: https://www.victory4x4.com/product/7040XX.html
Q AV • 11/18/2020, 1:02:16 AM How high is it off the truck. If I have 5.5” clearance to my garage trim will it fit? Thx
A 11/23/2020, 11:28:19 AM Around 2.5" to 3" above the roof.
Q AV • 11/23/2020, 0:14:59 AM How high is it off the truck. If I have 5.5” clearance to my garage trim will it fit? Thx
A 11/23/2020, 11:28:19 AM Around 2.5" to 3" above the roof.
Q Raoul Duke • 12/08/2020, 4:29:06 PM Will there be any clearance issues when operating the sunroof or with the shark fin antenna on a 2020 Tundra TRD Pro crew max ?
A 12/09/2020, 4:56:08 PM No, you can still use both.
Q Dillon Behen • 01/05/2021, 10:13:14 PM Is this safe to mount roof top tent to?
A 01/07/2021, 1:16:37 PM Toyota rates the Tundra roof with a factory rack at "Max load 165 lbs evenly distributed." Our rack itself can handle significantly more weight than that, and we've had 250lbs dynamic weight on it without issue, static capacity is certainly well above that. All these weight will be at your discretion as they are above Toyota "recommended" capacities. If you need more information please contact us directly at [email protected]
Q Jeremy • 01/30/2021, 10:28:56 PM What is the height of the side supports? Trying to figure out how night this will be on top of cab for garage clearance. Has to be more than 2.5 to 3 inches as previous answers stated. Thanks
A 02/02/2021, 12:30:16 PM The center of the rack is 2.5" higher than the roof's highest point.
Q Ryan Boggs • 02/26/2021, 6:49:39 AM Hey there. Curious what you guys have tried on the tundra roof rack with light cut out for lights. Any certain brand and model that stood out?
A 02/26/2021, 10:01:00 AM If you are looking for a light bar checkout the Baja Designs 40" Light Bar victory4x4.com/product/7040XX.html If you are looking for side lighting checkout our Roof Rack LED Light Kit victory4x4.com/product/VRKLED.html
Q Trevor • 03/07/2021, 11:37:08 AM Will the rear crossbars clear the shark fin style antenna on the roof of the newer double cab Tundras?
A 03/08/2021, 1:18:58 PM Yes
Q Miles • 07/16/2021, 2:34:48 PM Since 2020, is there an update on the dynamic weight capacity on the roof rack?
A 07/23/2021, 11:15:25 AM There is not.
Q Jeremy Daniel • 09/14/2021, 2:11:34 PM What is the usable length (flat part - not including the length of the fairings, etc.) for a Gen 2 Crewmax. Specifically looking to mount a iKamper Skycamp 2.0 Tent.
A 09/15/2021, 2:45:47 PM The rack is 54" wide and about 65" long (not including fairings).
Q Giovany Rodriguez • 11/07/2021, 10:21:13 AM I have a double cab roof rack but I’m purchasing a crew cab tundra, will my old rack from the double cab fit properly on the crew cab? Is there a difference in size on the roof racks?
A 11/08/2021, 10:17:32 AM It will not, they are model specific and different sizes.
Q Troy • 02/25/2022, 11:26:38 AM If I want to buy this rack and the awning mount, what is the widest awning you could mount on this roofrack using the mounts you sell? 2017 CrewMax
A 03/04/2022, 2:04:39 PM The mounts don't really dictate the awning width, you could mount whatever awning you want depending on how much overhang past the mounts the awning manufacturer is OK with. This rack is about 66" long and 40" on center would be your widest spacing for our rack mounts, for reference.
Q o • 05/26/2022, 1:20:06 AM WIll this fit the 2022 crew max cab tundra?
A 05/26/2022, 9:38:45 AM It will not. We will be developing products for the '22 soon!
Q kevin • 06/22/2022, 5:48:49 PM Will this roof rack be level in conjunction with your victory modular 18" bed rack?
A 06/27/2022, 10:54:31 AM It will not
Q Ty Quach • 08/30/2022, 1:33:12 PM Regarding the milled slots, is this same as T track? My OC rack mentions t-bolts. Does this fit T-bolts?
A 08/31/2022, 1:02:04 PM Yes, you can use T-bolts. Look for part # 046-0060 on our site.
Q Robb • 09/10/2022, 11:35:20 AM How tall is the roof rack?
A 09/12/2022, 12:10:02 PM About 2"-3" higher than the roof.
Q John G • 09/17/2022, 11:44:48 PM can you run kc hilites with this rack and the 40" cutout? i want my tundra to look like marty mcflys truck on steroids lmao
A 09/28/2022, 3:21:28 PM In theory you could run the non-light bar fairing and attach the round KC lights to the front crossbar pointed upwards (with some kind of bracket) but that would make things pretty tall.
Q Burley • 10/10/2022, 6:51:19 PM I was thinking of getting this for my 2020 tundra. My radio antenna is on the roof, near the 3rd brake light. Will the antenna impede installation?
A 10/11/2022, 4:41:02 PM This rack will clear the factory shark fin antenna.
Q Alex • 03/02/2023, 3:47:30 PM What are the side slots width & height, looking to mount Rigid lights to the sides but need to know the size before I order this rack, and lights.
A 03/13/2023, 11:54:40 AM All the slots are 4" wide. We offer a light kit for the side rails here: https://www.victory4x4.com/product/VRKLED.html The Rigid Industries LED Scene Lights part 86610 are 4.8" wide, so you may have to drill into the side rails to mount them.
4.70/5 Stars out of 10 Reviews
Write a Product Review: Tundra Roof Rack | (07-21)
Austin L (Texas) | July 5th, 2022
Installation was not easy. Getting the rivnuts installed plumb was a challenge even with a dedicated rivnut tool. There is a good chance rivnuts are just hard or hard for me. Getting them straight and in position was a challenge for me on my kayak as well. I learned about drilling into metal that night. After things started off poorly I ended up getting some drill lube and going slow with high pressure and having much better results. One of my rivnuts was not straight enough to get the provided bolts all the way down into. I picked up a shorter one to replace it and was able to get it in. That was about 9 months ago. Since then, I have loved having my roof rack. I can throw a couple kayaks up there and head to the river. Currently I have a solar panel mounted to power my fridge. The t-nut connections are so strong and flush, I am very pleased!
Note From Victory 4x4: Thanks for the long term review! Sorry to hear about the rivnut install, they can sometimes be a bit of a bear, but glad to hear you got through it. Any other issues please don't hesitate to reach out.
Carl V (AZ) | February 3rd, 2022
Awesome built and looking roof rack. The quality of the rack and its components is tip-top and it looks badass! Assembly and installation were mostly a breeze- as others mentioned the rivnuts take a little patience and time. I found that using a screw driver or screw gun to tighten the rivnuts worked much better than a ratchet. The screw driver or screw gun with a socket allow you to apply pressure down through the center of the rivnut making install much easier than with the socket. Hope that helps. Enjoy!!
Mike Sexton (ABQ NM) | May 22nd, 2021
Love the rack! It’s exactly what I was looking for, something for my weekend excursions and also during my week as a hands on contractor. I paired the cab rack with the basket rack on my Leer shell. Install was just as expected and took about an hour. The only “rub” was the supplied bit. I’m always skeptical of supplied tools because 90% of the time they suck. After attempting the first hole and after the pilot, I tossed the bit for a $20 bit, installed the bit stop and was quickly back on track. Again, love this rack and it’s not just for show, it’s gets a work out. My .02 here is loose the supplied bit and maybe shave off the cost of the bit. I’m glad I chose Victory over the others.
Kimo (ID) | May 18th, 2021
I'm very happy with my purchase of this roof rack. Assembly was straight forward. Installation was a bit scary, drilling holes in the roof is worrysome. I wish it came with proper sealant, but I did purchase my own through 3M (please don't use silicon). Although it does come with a homemade rivnut tool, a beefier version would also be nice. It's definitely easier to install with the help of a friend. In the end I'm very pleased with the look and function at this price point. I've mounted some storage boxes for recovery gear as well as an awning and occasionally climb on top to adjust my roof top tent (not attached to this rack).
Cory (Oregon) | September 24th, 2020
First time ever installing a rack like this. Was a little put off a first about drilling into my truck and first time drilling into metal. Slow and steady is key I quickly learned and use some wd40 as lube. The rack has been awesome for putting my kayak on the roof and is much quieter than existing Yakima racks I've had. The best advice I can give is don't use the tool they provide to install the rivnuts. You've already spent $800 on a rack, spend an extra $40-$50 at amazon and get a rivnet tool (I wish Victory gave you the option to add it onto the order). Anyways it's a must unless you like coming up with new swear words as the bolt starts to strip and have to scramble around town trying to find another one. Other then that, install is pretty easy if your comfortable with a drill and tape.
Melanie Hauschild (Indiana) | December 30th, 2019
This thing makes the truck! Got the light bar cutout and I can’t wait to add the light! Well made and instructions were clear and precise
Note From Victory 4x4: Thanks for the order and review!
Blane Maddox (Virginia) | December 17th, 2019
Great rack, simple use with any accessory. Install was a bit difficult as the ribnut tool is cheap and stripped the head off the hex bolt. A threaded rivet gun made this job so much easier. Quiet rack and excellent customer service, my Tundra has Victory 4x4 products all over it!
Note From Victory 4x4: Sorry about that tool. Glad you got it handled! We wish we could include a rivnut drill tool in every kit :)
Brad Jansen (Colorado) | December 7th, 2019
Purchased the roof rack for my 2018 Tundra Limited and it fix great. I went together as advertised, watching the video was a great benefit. I was a little apprehensive about drilling into my roof, but after drilling one hole, the others weren't a problem. Hint use the sized drill bit that comes with the kit, the threaded inserts fit that hole size perfect. It will take 2 people to lift the rack up to the roof to mark the holes and then down and then for finial installation. Best to have a step ladder to get the leverage for drilling. Total assembly and installation is about 2 hours with a few beers. Awesome rack!
Note From Victory 4x4: Thanks for the order, glad you like the rack!
RJ Coleman (West Virginia) | January 15th, 2020
The rack itself is fantastic, went together in a very short amount of time, even drilling into the truck went fairly quickly. I found issues in the tool used to set the rivnuts. One, if you aren't steady, they can be misaligned. No fault of Victory on that, just be careful. On the fifth hole, the bolt's threads for the tool completely just shredded themselves at the bottom, which meant I couldn't set any more rivnuts. Monday morning, I called Victory, and they were very helpful in finding the exact bolt name, picked some extras up, and I was done. Incredibly great rack, feels/looks solid(especially due to using steel feet!), and cheaper than the competition. Very happy with it!
Note From Victory 4x4: Sorry for the troubles, but glad we got you squared away. Thanks for the order!
Ryan Boggs (Wisconsin) | March 7th, 2021
Great rack. Quality product. Reason for the mid level review is their install instructions. Going by their list and video is a decent starting point, but actual kit is different than what is sent to you. Their kit for installing the nut inserts is simply a zinc bolt with a 5/16” rod coupling for a sleeve. Please check what you get as a 5/8” wrench is too big. The kit I received required a 7/16” open ended wrench and I purchased different nut inserts from the hardware store. Also received the different rear end cap piece than what is needed. Waiting to hear back from victory. Be sure to check all parts before installing. Although they don’t really have a decent label or model number displayed nor a thorough detailed parts list. Once I was able to figure out the differences install went ok. Just a bit frustrating that what was given me was different than what they indicated. Always a bit disconcerting especially for a product you're drilling through your trucks roof for.
A wide variety of accessory / lighting mounts available and the list is growing!
See related products below!
Allows for full functionality of all standard sunroofs
BUILT FOR ADVENTURE
Designed with your outdoor gear in mind.
Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
