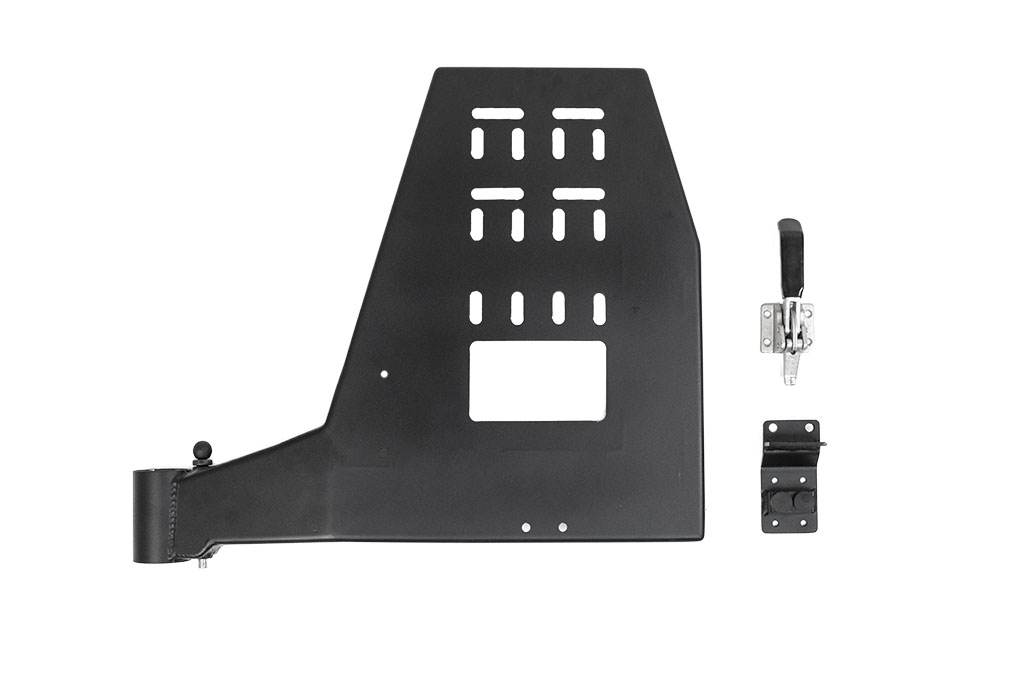

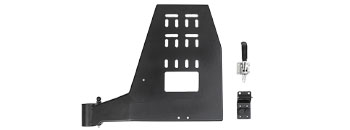

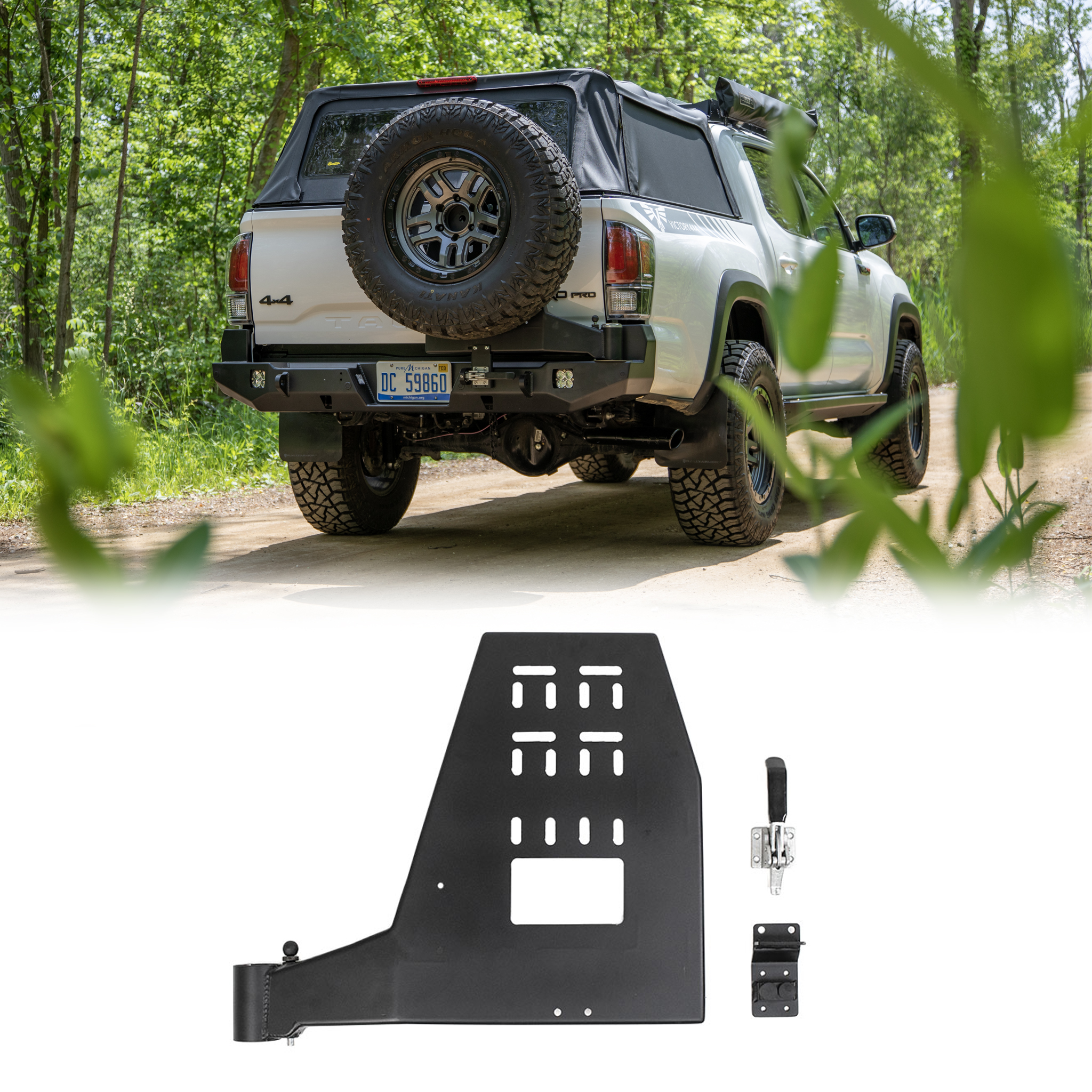

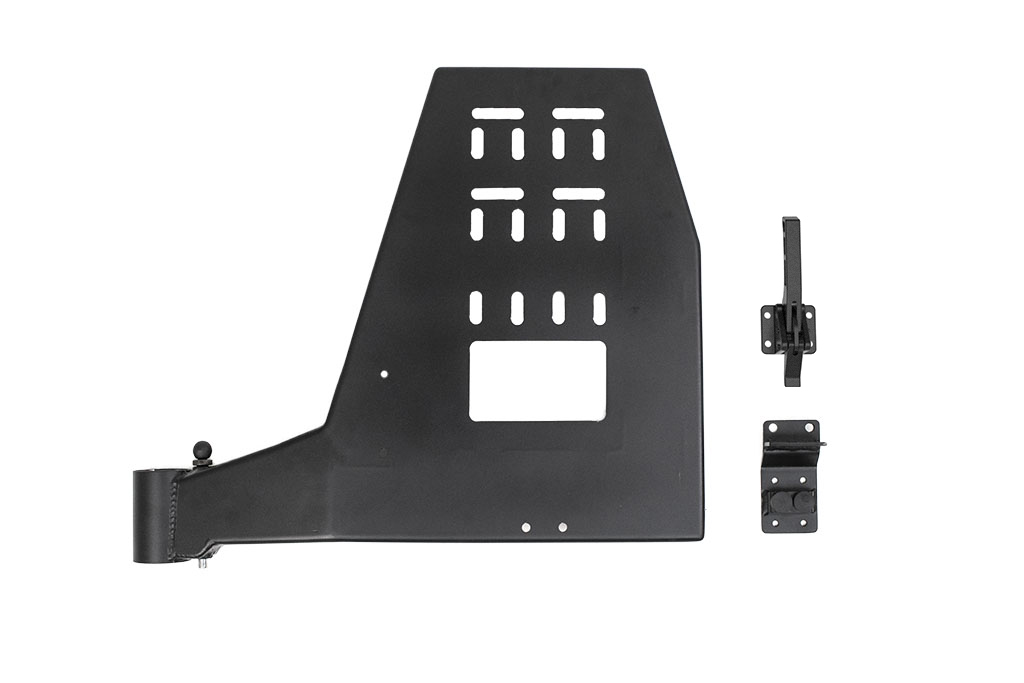

Adventure Carrier | Rear Bumper Swing-out
★★★★★
5/5 Stars. (6 Reviews)
Price:
$769.00
Now:
$692.10
Code: VAC
Weight: 40 (lbs)
Free Shipping!
- CNC cut and formed from .188" steel.
- Allows for mounting almost anything (spare tire, jerry cans, tread boards, Rotopax, Hi-lift Jack, fold down table, etc...)
- Optional tire mount not included (see related products below)
- Add them to your bumper at any time.
- Bolt-on installation.
- Proudly designed and made in the USA.
Designed to add storage capacity to Victory 4x4 rear swing-out bumpers. Add left, right, or both carriers! Available in a 2 stage satin textured black powdercoat over durable zinc primer finish, or in bare metal.
All carrier accessories are à la carte to fully customize your setup. See related products below for tire mount, camera mount, table, jerry can mount, hi-lift mount, etc..
Looking for answers to common questions about us or our products? See our FAQ here.
65 Questions asked on Adventure Carrier | Rear Bumper Swing-out
•
Ask us anything
Q
Lorie Featherby • 05/13/2020, 5:37:48 PM
Will it fit a Mercedes ml500?
A
05/15/2020, 1:52:09 PM
No.
Q
Duy • 06/27/2020, 2:18:27 PM
Will the bumper swing out work with the hatch ladder on the 4runner 5th gen? If not, then do you have plans to build a swing out that is compatible?
A
07/01/2020, 10:08:43 AM
The passenger side one will work, but the driver side will not. We do offer a ladder for our driver swing, see part: VTC-LDR-PC (https://www.victory4x4.com/product/VTC-LDR-PC.html)
Q
Marc Beaudoin • 08/01/2020, 10:22:21 AM
The spindle and bearings, do they come with the swing arm?
A
08/05/2020, 11:51:45 AM
Yes they do.
Q
Joshua Laughlin • 08/05/2020, 5:34:45 PM
Will it fit a 2004 Nissan xterra?
A
08/11/2020, 5:22:43 PM
No, we do not currently have a bumper for an Xterra.
Q
Matt • 09/12/2020, 4:11:39 PM
Do you have bumpers for 2011 Jeep Grand Cherokee limited
A
09/14/2020, 3:57:08 PM
We do not.
Q
Peter • 10/19/2020, 10:53:26 PM
What is the clearance from the back of the adventure carrier to the hatch? Trying to determine if my C4 summit ladder will fit behind a driver side swing arm.
A
10/20/2020, 7:03:20 PM
Depends on the vehicle. Please contact us at [email protected]
Q
jerid walters • 12/06/2020, 5:44:06 AM
For a 5th GEN 4Runner, will the driver side swing arm leave enough clearance for the GOBI ladder when closed?
A
12/09/2020, 4:56:08 PM
It does not.
Q
Goose • 12/17/2020, 5:39:49 PM
What is the weight of a single swing out?
A
12/23/2020, 5:37:41 PM
40 lbs
Q
Louis • 12/21/2020, 10:27:33 AM
Will it fit a 2003 Toyota Sequoia limited
A
12/23/2020, 5:37:41 PM
At this time we don't make a bumper for that vehicle to accept these carriers.
Q
Marc • 12/23/2020, 10:23:41 PM
Will this work with a stick tundra bumper
A
12/30/2020, 4:56:07 PM
It will not.
Q
Johnny • 12/24/2020, 0:15:34 AM
Will this fit on a 1st gen toyota sequioa ?
A
12/30/2020, 4:56:07 PM
It will not.
Q
Howard Scalzi • 01/23/2021, 8:02:31 PM
Can you mount 2x 4 gallon RotoPax, flat against the back?
A
01/25/2021, 12:06:24 PM
Sure, but you may need to drill holes for the mounts.
Q
John Haller • 02/14/2021, 9:51:42 PM
OK - maybe a different question. If you have a Thule bike rack like the one linked here mounted in the hitch (on maybe a 7" - 12" extender) will the swing-out clear the Thule rack when the Thule rack is folded down? Thanks
A
02/15/2021, 1:16:04 PM
It really depends on the vehicle model of bumper you are attaching this carrier to. In our experience it usually does not however on most vehicles.
Q
John • 02/15/2021, 4:55:34 PM
I like the modularity of the adventure carrier. Question - I understand to remove a carrier you just take off the bolt on the bottom and pull the whole thing out, spindle and all. But wouldn't the spindle just rotate freely in the bumper? How do you grab the spindle and stop it from rotating if the nut is tight and it's been on there a while? Thanks, probably overthinking it.
A
02/26/2021, 10:25:49 AM
There is enough tension from the top nut/carrier weight to hold it in place to break the bottom loose.
Q
Chris Durkee • 02/27/2021, 1:39:09 AM
Does it come with the latch bracket or does that come with the bumper? If they come with the bumper, would you sell them separately?
A
03/01/2021, 3:13:17 PM
They come with the carrier, please contact us directly to order them separately.
Q
Jayden • 03/04/2021, 1:50:28 PM
Would this fit a 2005 Subaru Forester?
A
03/05/2021, 10:08:23 AM
It will not.
Q
Brent Taylor • 03/05/2021, 5:35:27 PM
I already have a custom steel bumper from a different company on my GX 470. Could the adventure carrier rear bumper swing-out possibly be made to work on my bumper?
A
03/08/2021, 1:18:58 PM
It would likely require fabrication on your end.
Q
Kristen • 03/31/2021, 11:06:37 AM
Will this fit a 2006 Nissan Pathfinder R51 SE
A
04/02/2021, 1:17:54 PM
It will not.
Q
Tom • 04/07/2021, 12:08:24 PM
Just to verify, this does fit a gx 470?
A
04/12/2021, 1:13:17 PM
It fits on the GX470 rear Strike bumper (VGXRS), yes.
Q
James • 05/26/2021, 4:33:08 PM
Will this, LH side, close properly IF I have a Nash Fab Co. Curved ladder on the pass side also? I'm looking to open my rear door and open the Swing out on the opposite....
A
06/04/2021, 10:30:55 AM
As long as the swing and ladder are on opposite sides of the vehicle it should not be a problem. You can't run a hatch ladder and a swing on the same side however.
Q
Mark Pacis • 06/29/2021, 12:33:38 PM
how much does the bumper/swing out weigh and is your bumper made out of steel?
A
07/08/2021, 1:33:12 PM
40lbs, steel.
Q
JAMISON HOLLINS • 07/09/2021, 6:02:41 PM
DOES THIS FIT A 3RD GEN TACOMA?
A
07/23/2021, 10:58:16 AM
Yes, they attach to VT3RS
Q
Sean G • 08/16/2021, 6:27:03 PM
Is there a max weight limit on the adventure carrier in its swing out state?
A
09/02/2021, 12:29:40 PM
We don't have an official weight limit, but we try and keep it under 200 lbs in our installs here. Easier on all the components, and easier to manage opening and closing the carrier.
Q
Coley Oliver • 08/26/2021, 6:26:09 AM
I have and ADD Stealth Fighter bumper on my 14' Tundra. Could I retrofit it to accept one of these?
A
09/02/2021, 3:54:08 PM
Anything can fit depending on how much fabrication you want to do.
Q
Doug • 09/01/2021, 9:36:21 AM
Can you add a 2" receiver for a bike rack on the end of the swingout to accept a platform bike carrier that could carry up to 4 mountain bikes? Kind of like the RIGd hitch tire carrier.
A
09/02/2021, 3:54:08 PM
We have tested this, and the amount of flex at the end of the back rack was unacceptable.
Q
Lee • 09/08/2021, 5:09:33 PM
What comes with this? And does it fit on a 2019 4Runner
A
09/09/2021, 10:31:13 AM
This includes all the mounting hardware necessary to install it on our 5th Gen Strike Rear Bumper (not included). Accessories are available separately (see related products below).
Q
Ross • 09/13/2021, 5:03:14 PM
Where is this rear bumper you have for the Tacoma? It doesn't exist on your site...
A
09/15/2021, 3:20:32 PM
We no longer offer the cut style rear bumper. Our current rear bumper doesn't require cutting the bed sides and still allows for carriers.
Q
Alex • 10/02/2021, 11:11:23 AM
Will 37” tires be fine with this?
A
10/05/2021, 5:33:34 PM
The swing can handle it no problem, but it may be an issue with the tire blocking the taillight depending on vehicle model. Contact our customer service team for more help on this.
Q
Frank • 10/22/2021, 5:14:01 PM
Once the spindle and gears are installed, if i need to remove the swing out arm to transport larger drywall and have my tailgate down, how is it removed?...is it pretty simple?...if it's just the bottom bolt keeping it on, when you're removing it does the spindle and gears need to be removed, or does it come off in 1 piece?
A
10/25/2021, 11:38:23 AM

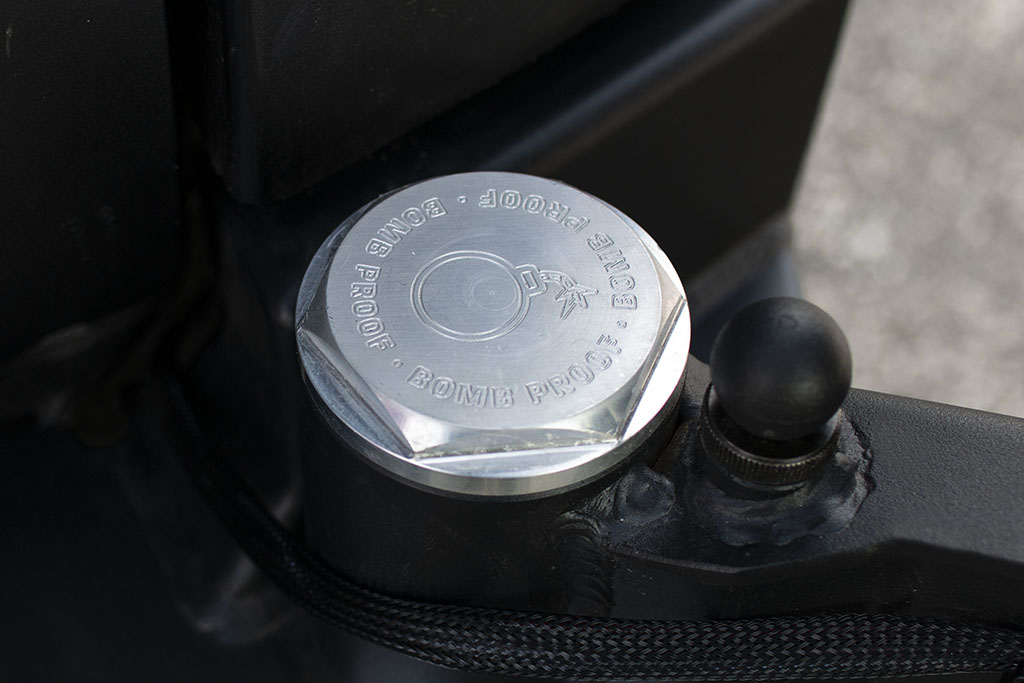

You can remove the spindle cap and nut on top only, then lift the carrier off of the spindle. You can then leave the spindle in place or remove it as well and cap off the spindle sleeve.
Q
Eric • 12/29/2021, 10:51:13 AM
Will the Tundra model fit a 2015 Toyota Sequoia?
A
12/29/2021, 1:23:48 PM
It will not, but the Sequoia is on our list for the future!
Q
Victor Monjaraz • 01/23/2022, 2:18:01 PM
Do I have to buy the other swing and for the Jerry can rack?
A
01/24/2022, 12:11:55 PM
The Jerry Can mount will work on either carrier. If you plan to run it with a spare, you will need two carriers.
Q
Chance • 04/12/2022, 12:40:35 PM
What is the max tire size/ weight it can hold?
A
04/27/2022, 12:01:31 PM
We have ran a 37 on it at the shop without issues.
Q
Joseph G • 05/05/2022, 11:57:41 PM
What comes with this? Does it also include the lights on the bumper and does it fit on a 2016 GX460? Thank you
A
05/06/2022, 11:19:33 AM
This is the Adventure Carrier and it comes with the mounting hardware to install it on one of our Strike Rear Bumpers. It will work with the GX460 Rear Strike Bumper. Lights are not included.
Q
Chris • 06/04/2022, 1:11:58 PM
for Strike install on Gx470 If I use right side swing out for mounting stock rim & tire will it block oem camera. it appears there is some adjustability for tire mount but not sure.
A
06/06/2022, 2:52:11 PM
There is some adjustability for the tire mount. With a tire on the carrier, at least part of the camera view will be obstructed. Depending on your setup, you may want to relocate the camera to the spare using our Camera Relocation Bracket.
Q
Kyle Roberts • 08/22/2022, 0:16:20 AM
What is the swing out length. From hinge to end of the swing out? Thx
A
08/23/2022, 1:59:59 PM
27" From the center of the spindle to the edge of the carrier.
Q
Benjie • 10/07/2022, 11:57:12 PM
Is this gonna fit on 3rd gen Toyota 4Runner?
A
10/10/2022, 5:43:44 PM
It does using our 3rd Gen Rear Strike Bumper! V4R3RS
Q
Bill • 10/12/2022, 10:11:22 PM
What size hitch pin fits in the lever safety lock
A
10/20/2022, 10:16:58 AM
5/16" is the max size.
Q
david bevins • 10/21/2022, 1:41:20 PM
what antenna mount is on the red 4 runner in the adventure carrier gallery?
A
10/27/2022, 10:07:38 AM
Sorry, that was a customer's rig and we aren't sure.
Q
Eric Thierjung • 11/08/2022, 11:04:02 AM
What is the weight rating for each Adventure swing out? I'm thinking about a spare tire and receiver for bike rack on one side at approximately 175lbs total.
A
11/14/2022, 12:42:37 PM
We don't have an official weight limit, but we try and keep it under 200 lbs in our installs here. Easier on all the components and easier to manage to open and closing the carrier. Depending on the bike rack length and leverage you may need to stay well under that weight, though. We also recommend careful periodic inspection of the carrier, spindle, and latch with this much weight.
Q
Jared • 11/25/2022, 4:54:55 PM
Will this work with a 2007 Toyota Land Cruiser
A
12/01/2022, 10:38:33 AM
Mounted to this bumper, yes: https://www.victory4x4.com/product/V100RS.html
Q
David • 01/23/2023, 2:36:53 AM
How do you take the spare tire off on the trail? I watched the install video, excellent video by the way!! Is it an involved process? I’m installing the camera and license plate relocated kit. Thank you
A
01/30/2023, 4:39:19 PM
You unbolt the two pieces of the license plate bracket and disconnect the wires before removing the spare. Very quick process.
Q
Greg • 02/07/2023, 12:06:35 PM
Do you make, or is there a way to hook up, a bike mount to the adventure carrier/bumper?
A
02/14/2023, 4:18:03 PM
We don't make anything at this time.
Q
Jeffrey Sass • 03/18/2023, 10:07:38 PM
Do you have a swing-out carrier for a '94 80-Series LC?
A
03/21/2023, 2:54:02 PM
We do not currently.
Q
James Fuentes • 05/14/2023, 9:05:46 PM
Can I install this on a stock bumper on a 2019 tundra?
A
05/22/2023, 5:30:00 PM
No, our swing outs are only designed to mount to our rear bumpers.
Q
kent • 05/24/2023, 7:00:17 PM
Can the carrier and latch be installed with the bumper already on the vehicle? i have the strike bumper for 100 series landcruiser
A
06/22/2023, 10:32:43 AM
Yes, but it would be pretty difficult, you may need to loosen the bumper up to adjust slightly. It would be best to install before the bumper if possible.
Q
Shaw • 07/12/2023, 1:22:47 AM
Is this higher than 3rd gen Tacoma tailgate? Looking to lift up the truck cap glass without having to swing out the carrier.
A
11/21/2023, 2:33:32 PM
It does sit slightly higher than the top of the tailgate.
Q
Bjorn Clouten • 07/14/2023, 12:33:58 PM
I need to replace the bearings. What is the appropriate bearing spec?
A
08/04/2023, 3:40:31 PM
We use Timken SET5 bearings
Q
Jeff Shelton • 08/05/2023, 0:15:34 AM
Does this bumper and swing kit fit a 2003 4Runner yet???
A
08/09/2023, 12:21:16 PM
Yes, along with our bumper linked below.
https://www.victory4x4.com/product/V4R4RS.html
Q
Juan • 08/31/2023, 10:27:01 AM
Will this fit on a 3rd gen 4Runner?
A
12/01/2023, 11:37:17 AM
Yes, our carriers are designed to fit on our 3rd Gen 4Runner rear bumper.
https://www.victory4x4.com/product/V4R3RS.html
Q
Aron Carle • 09/02/2023, 1:13:40 AM
Do you sell just the handle? Mine has worn down and need a replacement
A
12/01/2023, 12:05:55 PM
Yes, please reach out to our Support team at [email protected] or give us a call 269.353.1184
Q
Eric Tovar • 09/16/2023, 4:29:56 PM
What size rim and tire can fit?
A
12/01/2023, 4:00:48 PM
Depending on the vehicle, we've ran different combinations up to 38" tires without issue.
Q
Kent Gaisford • 12/26/2023, 2:43:48 PM
Do you carry a hitch/latch pin for added security? If not, what size pin do I need to get?
A
01/23/2024, 2:27:31 PM
We do not include anything for that, but a standard snap pin can be used for added security or other styles of locks can be used as well.
Q
Stacey • 01/24/2024, 5:05:04 PM
Will the Adventure carrier fit ‘06 Tundra?
A
01/25/2024, 5:56:03 PM
Our swing outs are only designed to mount to our bumpers, we do not currently have a rear bumper for the '06 Tundra.
Q
Marco Rascon • 03/15/2024, 0:50:59 AM
Will this fit a 2010 Toyota FJ Cruiser?
A
06/05/2024, 4:20:02 PM
These carriers are only designed to install on our rear bumpers. We do not currently offer a rear bumper for an FJ Cruiser.
Q
Vinny • 03/24/2024, 3:32:07 PM
How does one mount a tire? Do I have to purchase. Separate tire mount?
A
06/05/2024, 4:58:38 PM
If mounting your spare tire, you would need this tire mount.
https://www.victory4x4.com/product/UNI-TM.html
Q
Oscar Barrios • 03/24/2024, 9:05:26 PM
Will this fit a 4rth gen 4runner
2005 4runner
A
06/06/2024, 4:08:47 PM
This swing out is designed to mount to our rear bumpers, it would be compatible with our 4th gen rear bumper.
Q
Justin W • 06/23/2024, 3:44:43 AM
will this work on the new bumper for the 23 canyons you just put out?
A
06/25/2024, 12:17:12 PM
Yes, this will work on our Canyon/Colorado rear bumper.
Q
Chris • 07/29/2024, 3:04:46 PM

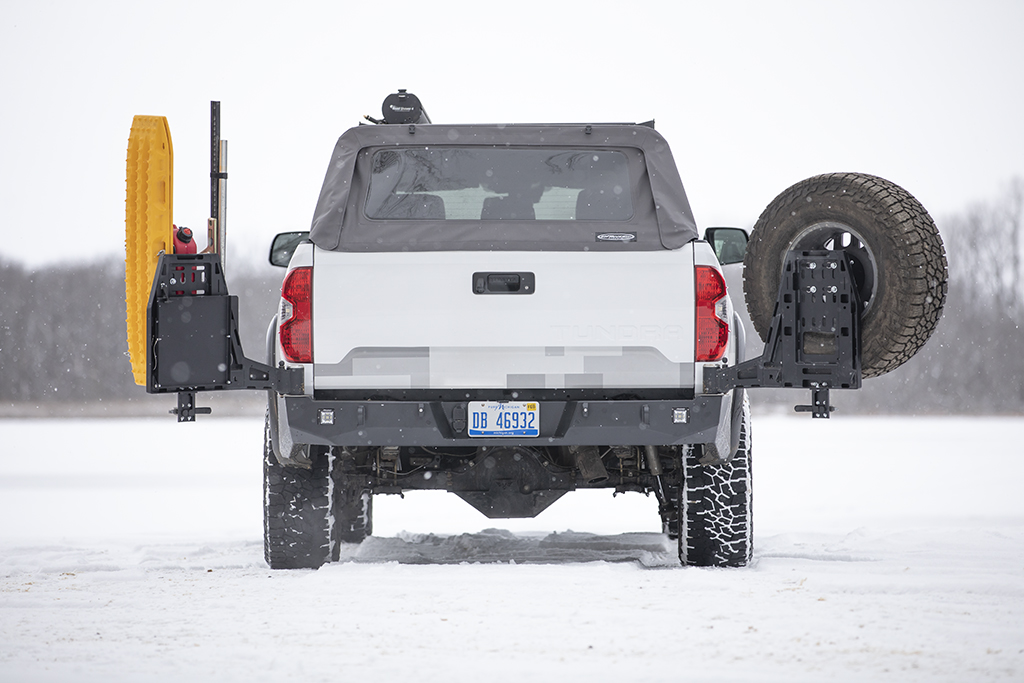

Adventure Carrier | Rear Bumper Swing-out ...does this system have a spot for the trailer lights connection
A
10/16/2024, 4:04:53 PM
Our swing outs do not have a spot for mounting trailer lights, that would be dependent on the bumper itself.
Q
PS • 08/02/2024, 0:03:37 AM
Does this come as a set of 2, one for each side of the rear bumper?
A
10/16/2024, 3:59:56 PM
They are sold individually, you would select the side when adding to your cart.
Q
Daniel • 08/26/2024, 12:08:33 PM
Hi, will it work on a stock 2018 Chevy Colorado ZR2 bumper?
A
10/23/2024, 4:05:12 PM
They will not, their designed to work with our rear bumpers only.
Q
Ern • 09/17/2024, 4:32:19 AM
Does this fit a 2011 Tundra? Thank you in advance.
A
12/27/2024, 4:59:31 PM
It does not, it only works on our rear bumpers.
Q
Fidel • 10/02/2024, 11:34:11 AM
Would this bumper fit a 2011 Tacoma?
A
10/08/2024, 10:38:11 AM
of course! These are designed to mount into our swing out bumpers, it could fit a 2011 Tacoma outfitted with our rear strike bumper.
Q
Corbit Moore • 10/16/2024, 2:30:06 PM
I have this tire carrier on my JCR XJ bumper. It will fit on my GX Strike bumper as well correct?
A
10/16/2024, 3:55:18 PM
As long as it is our current model, it will.
Q
Rohan • 12/03/2024, 10:40:51 AM
Does this fit 4th gen 4Runner?
A
12/24/2024, 10:21:24 AM
It does, with our 4th gen rear bumper.
Q
Chris • 01/03/2025, 8:45:15 AM
If you choose to install swing out later after the bumper is on...how do you bolt on the swing out latch brackets?
A
01/03/2025, 10:01:52 AM
The amount of clearance will change depending on the vehicle, but you can typically access the nuts on the inside of the bumper in order to attach the latch catch.
0
0
0
0
6
Tracy Rolstad (Spokane, WA) | July 11th, 2023
Awesome setup. I am typing this review from Whitehorse, YT. The Adventure Carrier and fuel rack helped me “save” a motorcyclist who ran out of gas on the Alaska Highway. These carriers are beasts! I run a 11 pound propane tank on one side (with a DIY table that holds my stove) and ten gallons of fuel on the other side. These carriers are tweakable to your needs. Expensive yes…but cry once and enjoy what they provide you for capability.
Note From Victory 4x4: Awesome Tracy, thank you!
Daric Morton (Tucson) | March 26th, 2022
I purchased both the left and right Adventure Carriers. Extremely well built and strong. I love the open design. I mounted the spare tire on one and my traction boards and hi-lift jack on the other one. Easy and secure. DOES NOT RATTLE
Adam (Knoxville, TN) | May 11th, 2021
Why other manufacturers haven’t caught onto the modularity design is beside me. So much functionality in just one piece. What I love the most about the adventure carrier is how versatile it can be. Most “overland” folks buy stuff because it looks cool and they get stuck with a bumper that (from other manufacturers ) can’t be changed later when they realize they didn’t really need or like something they thought they just had to have because they saw it on Instagram. This bumper allows you to at any time change that setup up to what is actually important or needed. Unlike others where you spend a months salary or more on a bumper that well you’re just stuck with your decision and can’t do anything about it without permanently removing or adding. I love the fact that I can have my dual Jerry holder and fold down table when I’m going out for a weekend or a week then when I get home I can shed all that. I also love the fact that when I go somewhere I won’t need 50+lb fuel and water on my truck I can switch it up and add the maxtrax and rotopax holder and still be covered. Or if I want to run a bare setup I’m good to go. The adventure carries are what sold me on the victory bumper and I don’t think you’ll find anything else near the quality and modularity as these.
Bird Dog Overland (Chicago) | March 24th, 2021
These function great and look wonderful. Some people only get one side, but I’m glad I got two. Spare tire on the passenger and ladder attachment, hi lift mount, and a license plate mount on the driver.
Stephen husarik (California) | September 18th, 2020
Love my high clearance bumper and swing arms easy install great product holding a full 33 inch tire no problem would buy agin if I ever change vehicles worth every penny I spent on it great fit great finish
Nate | November 26th, 2019
Solid product! Easy to install!

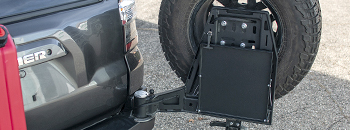

Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
Please be sure to read the PDF installation instructions as well.
