Price: $1,649.00



Code: VGXFB-46-14

Weight: 70 (lbs)

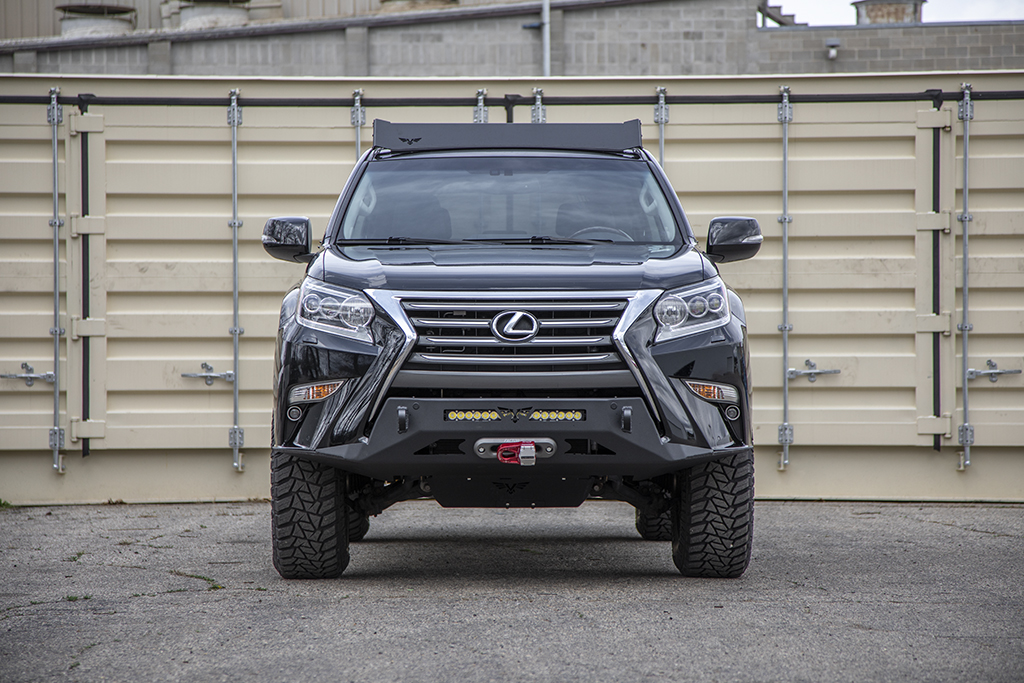

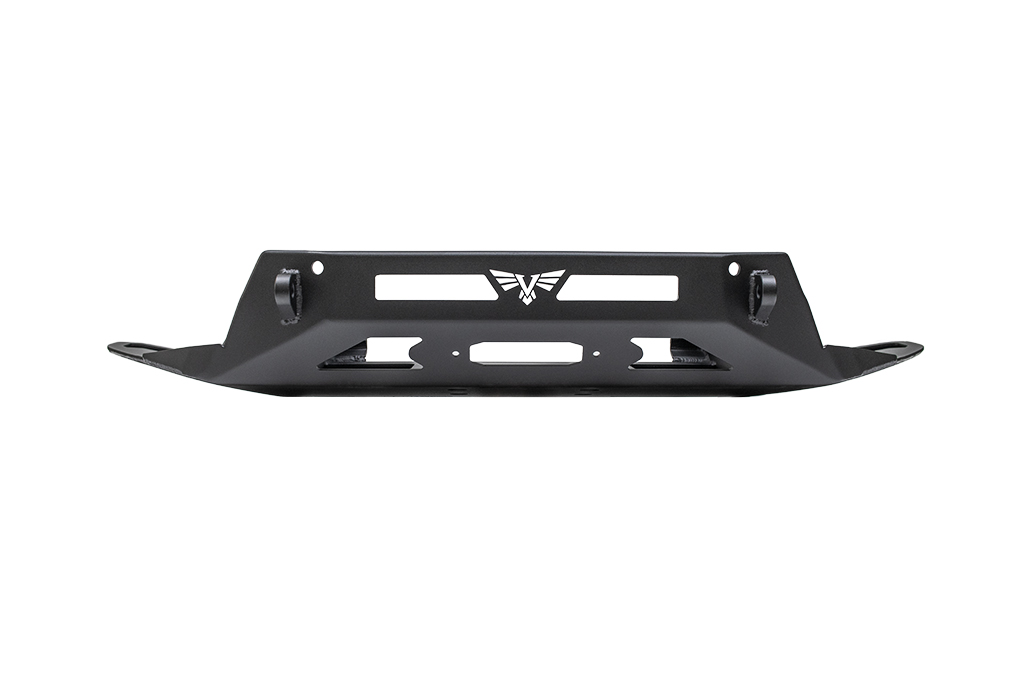

    Victory 4x4 Blitz GX Front Winch Bumper | 2014+
      Our Blitz winch bumper for the Lexus GX is designed to integrate with your factory front bumper fascia for a clean look with maximum recovery options. This made in the USA bumper features an integrated 20" lightbar mount, 3/4" recovery tabs, plus provisions for many industry-standard winches. A fairlead block off plate is included for those that don't yet have, or need, a winch. The bumper is available in a 2 stage satin textured black powdercoat over durable zinc primer finish, or in bare metal.

      Install Document Coming Soon!

      • CNC cut and formed from .25" aluminum.
      • Compatible with most 8-10k non-integrated solenoid or removable selenoid winches.
      • Built in provisions for a 20" single row light bar (22" max mounting width)
      • Proudly designed and made in the USA.
      Listed weights are with no tubing; single hoops and prerunner tube work add roughly 10 lbs in steel, 5lbs in aluminum; full grill and light protection tubing adds 30 lbs in steel, 15lbs in aluminum. (Not all tubing options are available on all bumpers.)
        Ships freight only! Rate calculated at checkout. Please contact us with any questions: https://www.victory4x4.com/CTUS.html

      Looking for answers to common questions about us or our products? See our FAQ here.

      16 Questions asked on GX Front Bumper | Blitz | 460 (14+)

      Ask us anything



      Q Jacob • 04/16/2021, 10:29:37 AM What is the weight of the 14+ Blitz bumper?
      A 04/21/2021, 2:11:12 PM 70lbs
      Q Chris • 04/28/2021, 7:23:03 PM How much clearance does this add over factory?
      A 05/05/2021, 1:00:12 PM Around 5" at the fender edges and an inch our two in the center. We still have to protect the radiator and such, so we can't go a ton higher in the center.
      Q Darrin Roush • 05/07/2021, 1:45:21 PM Does the GX 460 Blitz modification to the OEM bumper open up/expose the engine air intake because the wheel well liner is trimmed? In other words, would this modification necessitate a snorkel or similar in order to mitigate increased exposure/vulnerability of the engine to water ingestion (due to Blitz mod)? Thank you.
      A 05/12/2021, 2:02:55 PM It doesn't open the air intake to dust any more than it is in the stock form.
      Q Chris • 05/07/2021, 11:29:04 PM What is the approach angle with this bumper assuming no lift, stock tire size and wheels?
      A 05/12/2021, 2:02:55 PM We have not measured this. It is much increased over stock.
      Q James • 05/10/2021, 11:37:20 AM Can this fit the newer 2020 & 2021 Lexus GX460 that have the newer, larger grill?
      A 05/12/2021, 2:29:21 PM The new grille is pictured in these photos. It fits both versions.
      Q Sej • 06/03/2021, 2:16:11 PM Does this bumper work with the factory skid plate, or will I need to leave it off or order an aftermarket skid plate?
      A 06/11/2021, 4:51:57 PM It should work fine with the factory skid.
      Q Andres • 06/25/2021, 2:02:21 PM How do you operate the winch clutch lever with thisbumper?
      A 07/08/2021, 1:15:34 PM Reach your hand through the vent holes on the face of the bumper.
      Q Andres • 06/25/2021, 2:03:28 PM Does this bumper fit a warn zeon platinum 12k winch?
      A 07/08/2021, 1:33:12 PM With the solenoid box still integrated on that winch, you may need to trim the grill support slightly.
      Q Barry • 07/26/2021, 11:28:15 AM Is this bumper compatible with a WARN 103255 VR EVO 12-S? Thanks
      A 08/12/2021, 3:19:21 PM Yes, those are the same size body as the 8s and 10s. It's a bit more winch than you need for a smaller SUV however as the 12s is really designed for 3/4 ton and 1 ton trucks.
      Q Ishinder • 08/05/2021, 6:25:57 PM What winch and light bar are used in the pictures above?
      A 08/12/2021, 4:22:04 PM This light bar: https://www.victory4x4.com/product/7020XX.html and a Warn VR EVO 10s
      Q TC • 08/09/2021, 2:28:30 PM The description mentions tubing...can the Blitz be built with a single hoop tubing, and if so do you have any photos of an example?
      A 08/12/2021, 4:22:04 PM That is just a cookie cutter disclaimer for weights. This bumper is not available with any tubework.
      Q Chris • 09/07/2021, 3:27:48 AM Are the recovery tabs aluminum? How are they engineered to handle the stresses that actually trying to recover a vehicle might place on them?
      A 09/07/2021, 1:59:29 PM Yes, they are aluminum. They are tied straight back to the frame mounting locations and also to the frame behind the frame horns with additional tie-in brackets. You can check out the install video for more info!
      Q Alex • 09/08/2021, 3:48:58 PM What does the bumper weigh? Can the factory parking sensors be used?
      A 09/09/2021, 10:30:25 AM It weighs 70lbs and includes mounting locations for the factory proximity sensors.
      Q Chris • 09/13/2021, 3:21:46 PM How much testing have you done with wenches? I'm concerned about the 1/4" aluminum in terms of the wench plate. What have you done to stiffen that part so I can count on not deforming the bumper while wenching?
      A 09/15/2021, 3:25:51 PM We have winched and recovered with this bumper without issues. The winch plate is reinforced and there are additional frame tie-in brackets to the bumper mounts.
      Q Koray • 09/29/2021, 1:57:48 AM With the 70 lb weight, would it work with the stock suspension or does it require any suspension upgrade?
      A 10/05/2021, 5:33:34 PM It will be fine with stock suspension, but if you start adding a winch and other accessories you may need to start thinking about aftermarket options.
      Q Rick • 10/16/2021, 4:57:05 AM My grill is in production as I type this and being shipped to palm desert. How long to install
      A 10/18/2021, 12:32:02 PM About 3 hours for the bumper install, additional 1 hour for winch wiring, additional 2 hours for light bar wiring.
      ★★★★★ ★★★★★
      3.00/5 Stars out of 1 Review
      5
      0
      4
      0
      3
      1
      2
      0
      1
      0
      Great Styling, Average Fit
      (WA) | August 25th, 2021
      Following the install video VERY closely I found everything to be pretty straightforward to install...or so I thought. Once all the bumper prep, cutting, wiring etc was complete I slowly raised the bumper into place with a motorcycle lift only to find it was not even close to fitting. Re-watched the install video several times, sourced photos of others install to confirm everything was cut the same (it was). Ultimately found myself having to raise and lower the bumper numerous time to cut more and more stock plastic off to ensure a fit. Was finally able to install and overall the look is awesome but am disappointed how tight the fit is to the OEM plastic and how much additional material I had to remove resulting in an ok fit only. I also could never quite center the bumper even though the mounts do allow for some movement. The truck has no accident history and no indications of any defects that would warrant an average fit. In short - yes it does look good and is well built but with only an OK fit I question if done again if I would have spend the $ on something different. One side note, I did not receive the 20+ grill fit and after 2 attempts to have to have it sent have yet to receive it.
      Note From Victory 4x4: Thanks for the review. Sometimes some extra trimming is required to get these bumpers to fit perfectly. The stock plastic bumper covers hide quite a bit of variance between the body and frames on these trucks and how they are mounted. If we can futher help in any way please let us know.

      Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
      Please be sure to read the PDF installation instructions (if available) as well.
