    Diode Dynamics Heavy Duty Dual Output 2-Pin Offroad Wiring Harness

    • Diode Dynamics Heavy Duty Dual Output 2-Pin Offroad Wiring Harness
    • Diode Dynamics Heavy Duty Dual Output 2-Pin Offroad Wiring Harness
    $49.95
    $14.95 Flat Rate Shipping

    Code: DD4045 | Weight: 2.45 (lbs)



      Features
      • Powers Diode Dynamics Stage Series light bars and LED pods
      • Dual output: run two pods or light bars from one harness
      • Connects directly to the battery to power your lights
      • High-capacity 14AWG wiring with black protective sheathing
      • 2-pin Deutsch DT output connectors for plug-and-play installation
      • 30A waterproof fuse and 60A, 12V relay safeguard your lighting's electrical system
      • Two-way toggle switch and OEM aux switch adapter included

      Overview
      This harness is intended for Diode Dynamics Stage Series light bars and pods without backlight functionality. It connects directly to your vehicle's battery to power your offroad lighting, and uses a two-way toggle switch, high-capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

      This harness safely powers up to 25A of auxiliary lamps. Current draw per light:
      • SS3 Sport: 1.1A
      • SS3 Pro: 2.7A
      • SS3 Max: 3A
      • SS6 Light Bar: 1.9A
      • SS12 Light Bar: 4.2A
      • SS18 Light Bar: 5.7A
      • SS30 Light Bar: 9.8A
      • SS42 Light Bar: 16A
      • SS50 Light Bar: 18.5A

      Specifications
      • Length: 225 in.
      • Wire Size: 14AWG
      • Relay: 60A, 12V
      • Fuse: 30A, waterproof
      • Shipped Weight: 2.45 lb

      Installation

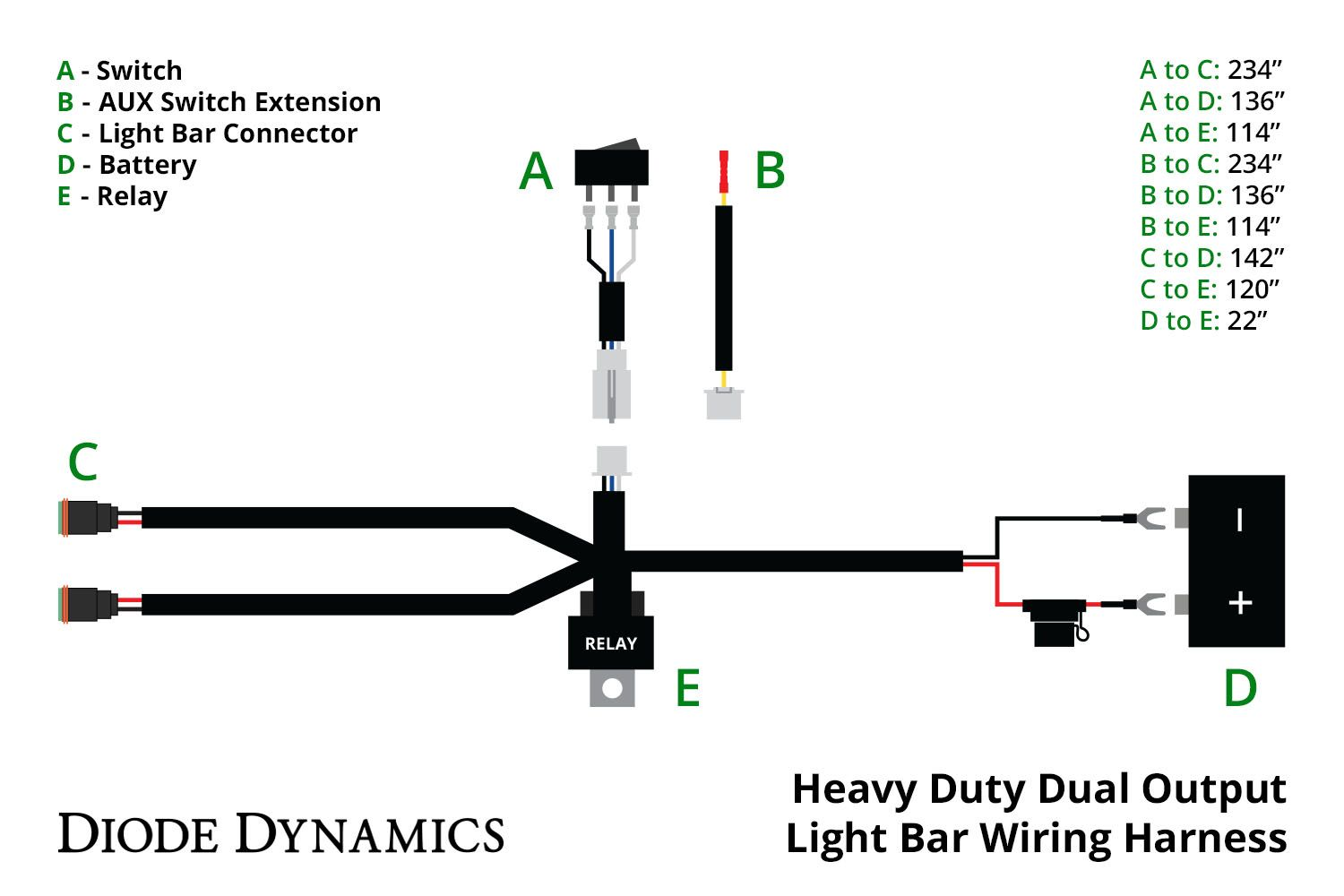

      • Switch wire colors: Relay – Blue, Power – White, Ground – Black
      • The gold spade on the toggle switch connects to the black (ground) wire
      • Installation time: 30-60 minutes
      • Tools needed: basic toolset
      Note: For Stage Series light bars on a 24V system, replace the relay with a 24V relay.

      In the Box:
      One (1) wiring harness
      One (1) toggle switch
      One (1) OEM aux switch adapter
      Quantity: One (1)
      Warranty: 3 year limited replacement warranty


    Customer Photos

    Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
    Please be sure to read the PDF installation instructions (if available) as well.
