Land Cruiser Front Strike Bumper | 100 Series - Lexus LX 470 (98-07)
★★★★★
5.00/5 Stars. (1 Review)
Price:
$1,549.00
Now:
$1,394.10
Code: V100FS
Weight: 110 (steel) | 65 (aluminum) (lbs)
- CNC cut and formed from .188" steel or .250" aluminum.
- Compatible with most 8-10k non-integrated solenoid or removable selenoid winches.
- Built-in provisions for standard 3"x3" cube lights.
- Built in provisions for a 20" single row light bar (22" max mounting width)
- Not compatible with Onx6 20" Light Bar.
- Bolt-on installation.
- Hardware Included.
- Proudly designed and made in the USA.

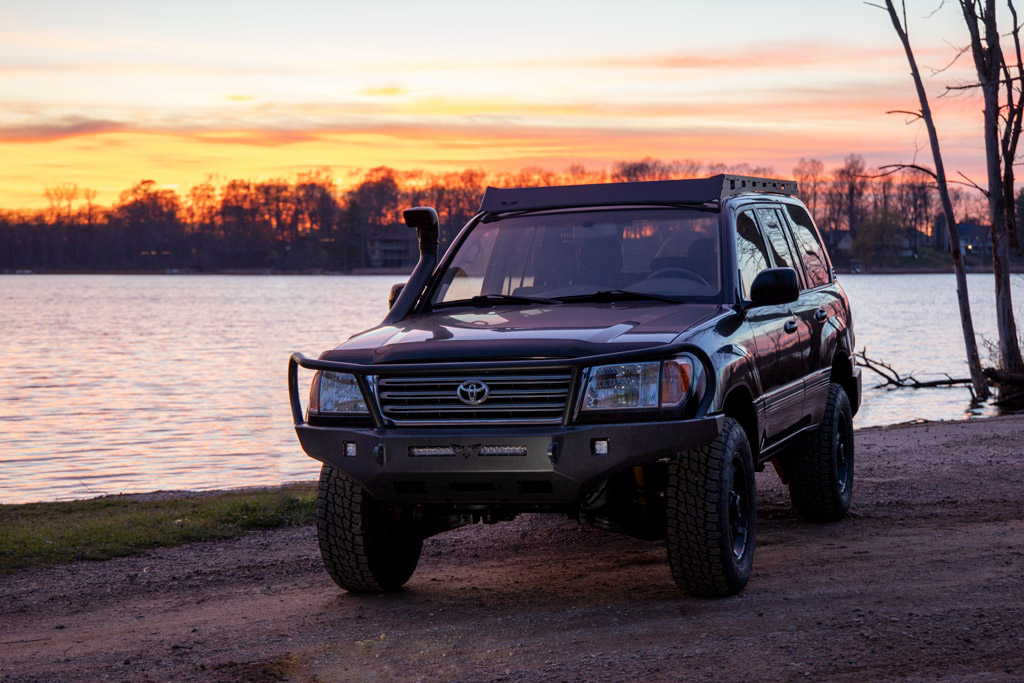

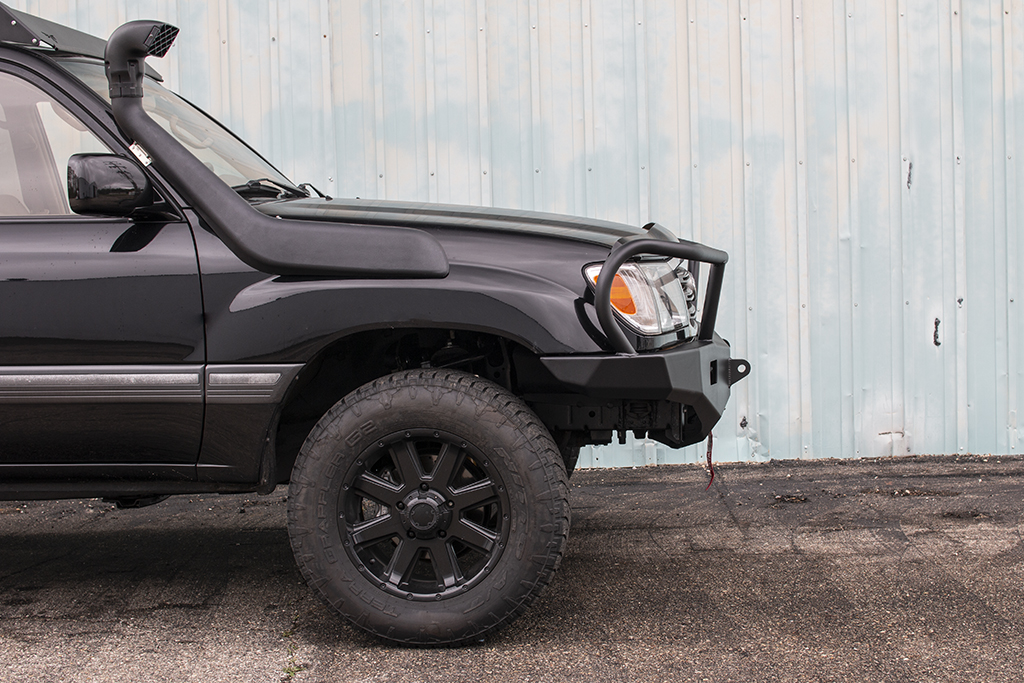

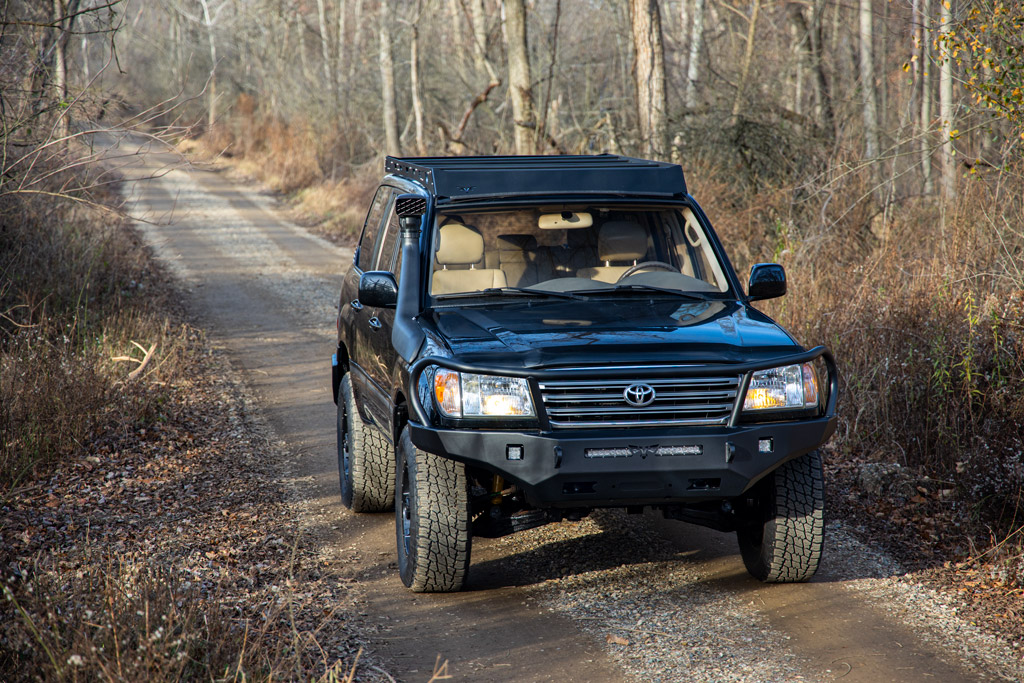

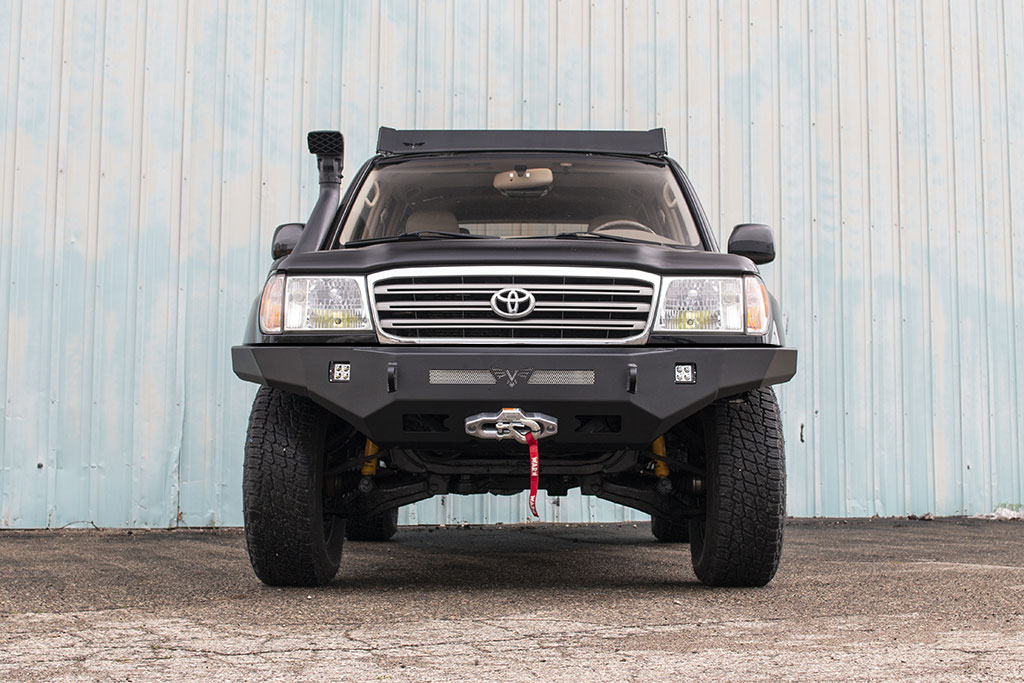

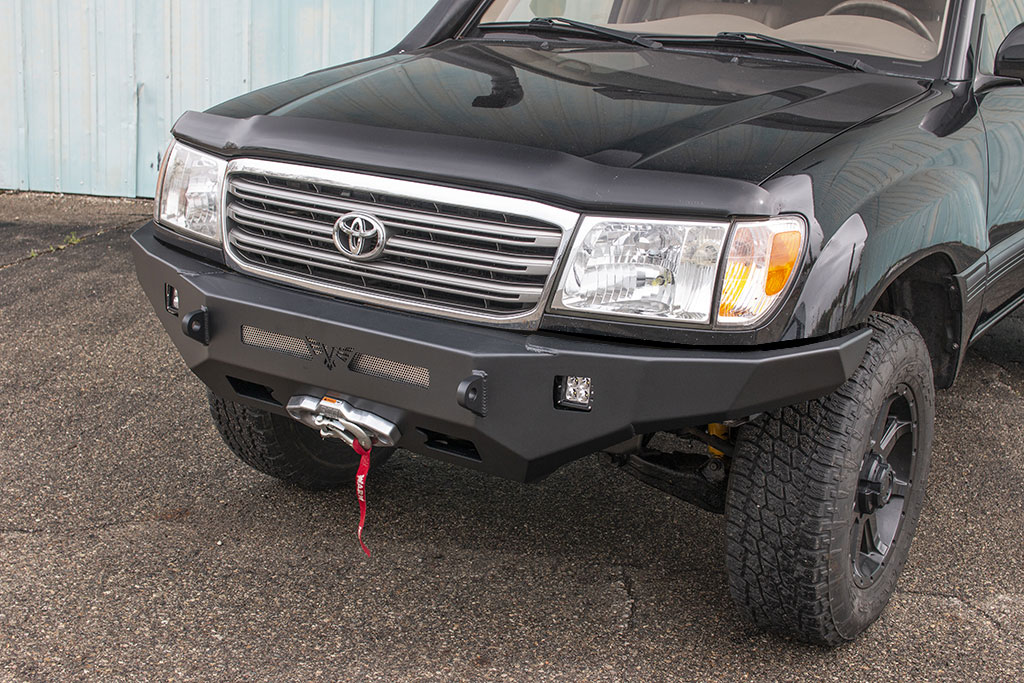

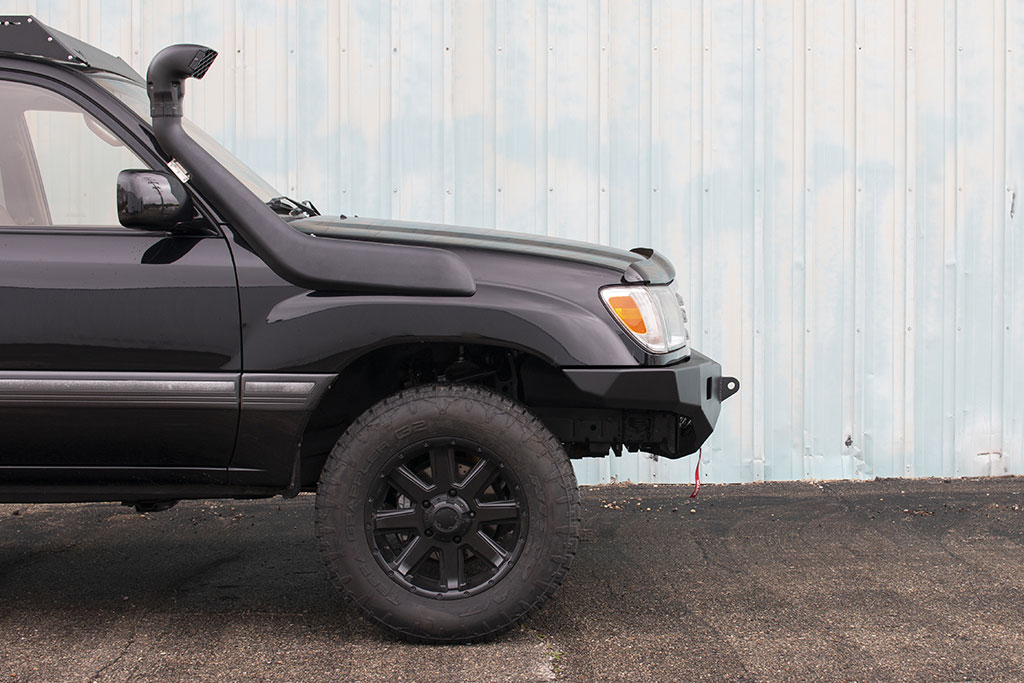

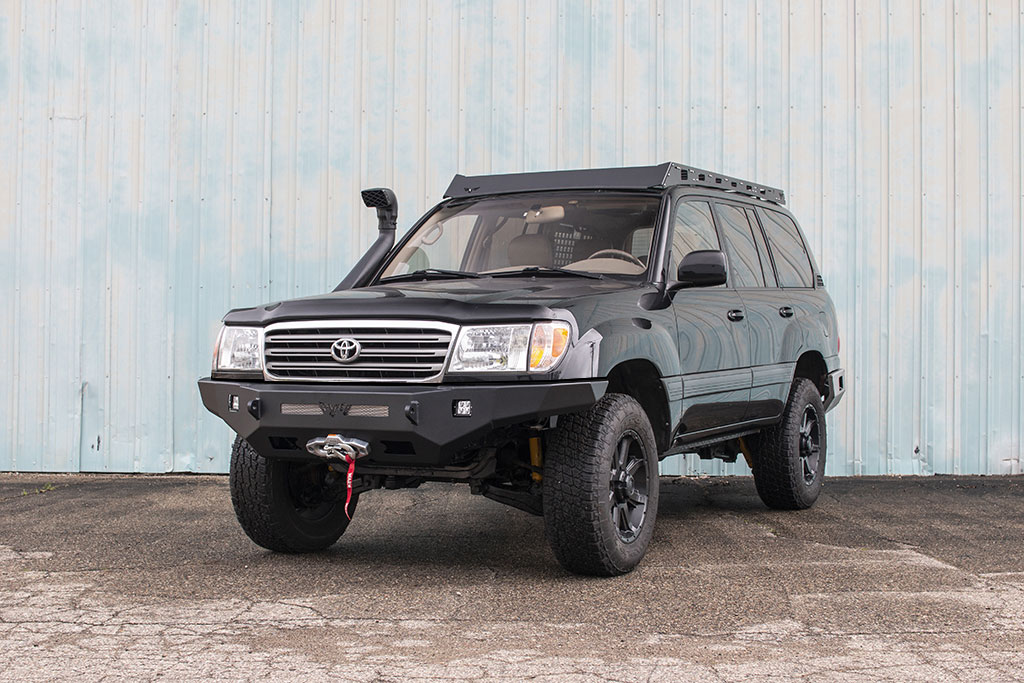

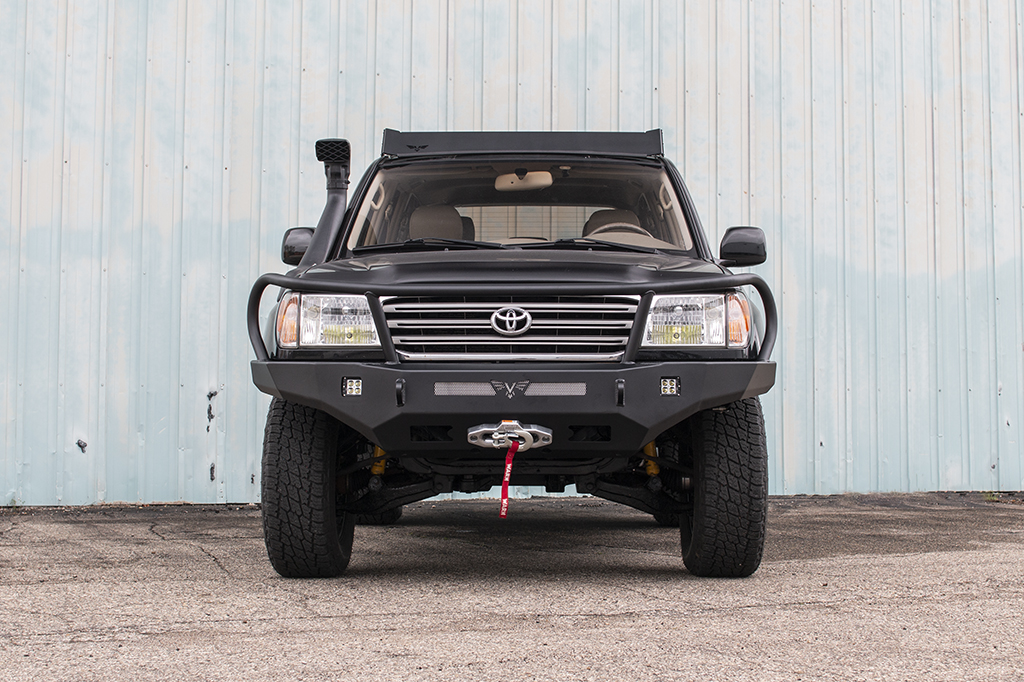

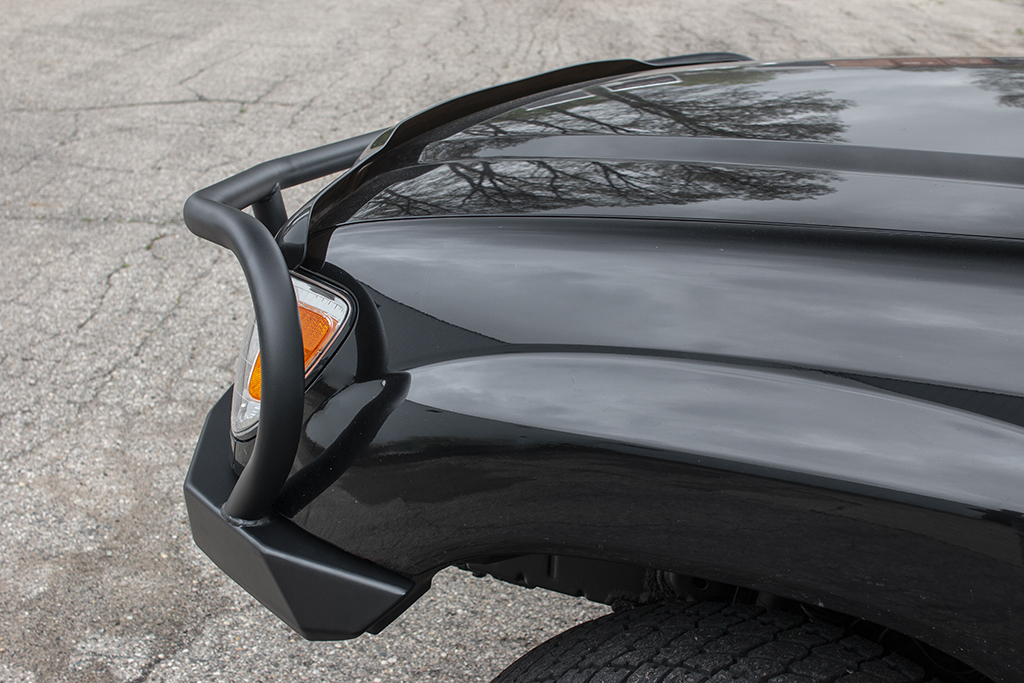

Victory 4x4 Strike Front Winch Bumper | 100 Series Land Cruiser (98-07) - Lexus LX 470 (98-07)*
When you need extra tire clearance, maximum protection, plus recovery options for your Land Cruiser; our Strike Series front bumper is a perfect choice. This made in the USA bumper features an integrated 20" lightbar mount, 3/4" recovery tabs, plus provisions for many industry-standard winches.The bumper is available in a 2 stage satin textured black powder coat over durable zinc primer finish, or in bare metal.
Listed weights are with no tubing; single hoops and prerunner tube work add roughly 10 lbs in steel, 5lbs in aluminum; full grill and light protection tubing adds 30 lbs in steel, 15lbs in aluminum. (Not all tubing options are available on all bumpers.)
*Bull Bar option will not work with the Lexus LX470. The Lexus LX470 will require a customer solution for turn signals as they are located in the factory bumper that is removed. Options are to replace the the Lexus corner lamps with 100 series housings, wiring pigtails, and bulbs (they are dual function) or use a dual function LED like the Rigid Radiance as a combination driving light/turn signal.
Ships freight only! Rate calculated at checkout. Please contact us with any questions: https://www.victory4x4.com/CTUS.html
Looking for answers to common questions about us or our products? See our FAQ here.
11 Questions asked on Land Cruiser Front Strike Bumper | 100 Series - Lexus LX 470 (98-07)
•
Ask us anything
Q
Chris • 08/02/2020, 12:10:12 PM
Does this bumper also work with the 2004 LX470?
A
08/05/2020, 11:51:45 AM
We haven't had a chance to test at the shop to be sure, although we are assuming it will.
Q
Nick Cavellero • 09/29/2020, 5:41:12 PM
Can you please provide the specific weights for the four options you offer? 1) Bumper, no tubes, steel, 2) Bumper w/tubes, steel, 3) Bumper, no tubes, aluminum, 4) bumper, w/tubes, aluminum. Thx.
A
10/01/2020, 1:40:01 PM
110 Steel | Aluminum 60 (No tubing) Add 8 and 4 lbs respectively for tubing.
Q
Nick Cavellero • 09/29/2020, 5:42:52 PM
Can you please tell me if this will work with a 2003 Land Cruiser 105? Model: FZJ105L-GCMNK
A
10/01/2020, 1:40:01 PM
We have not tested this bumper on a 105.
Q
SAL • 10/17/2020, 6:38:58 PM
Hi, I have a 2005 Land Cruiser. Was wondering if this is completely bolt on, no cutting or drilling needed? Thanks!
A
10/20/2020, 7:03:20 PM
Should be no cutting or drilling on your 05.
Q
Mike • 12/18/2020, 11:44:53 PM
What are the dimensions of the light bar cut out and the cube light cut outs? I understand they accommodate a 20 inch bar, but is that single row LED or double?
A
12/23/2020, 5:37:41 PM
Single row. The cutout is roughly 1.75 x 21
Q
Jared Martin • 02/12/2021, 9:52:34 AM
Which finish is featured in the photo (powder coat or bare metal)?
A
02/15/2021, 12:52:47 PM
Powdercoat
Q
Daric Morton • 07/19/2021, 7:27:17 PM
Are there specific winches which do/don't fit? I'm looking at a 10K LB winch and want to make sure the height and width of the winch location is acceptable for different winches. What are the inner dimension for the winch area?
A
07/23/2021, 12:10:40 PM
Most 8k to 10k winches fit fine there is plenty of room for the motor and gearbox. You will need to relocate many of the solenoid boxes however as they can hit the oem bumper plastic support brackets.
Q
Denny • 09/25/2021, 7:28:24 PM
I'd like to use D-ring adapters to attach the bumper to my Roadmaster tow bar and flat tow my LX470 behind my motorhome. Is this bumper strong enough to use as an attachment point for flat towing?
A
10/05/2021, 5:07:44 PM
Yes, should not be a problem. We always recommend that your safety straps mount directly to the frame of the vehicle however. That takes all of the bumper hardware out of the equation in an emergency.
Q
kent • 05/10/2022, 10:41:17 AM
Does this come ready to mount a winch? or do i need a separate mounting plate
A
05/11/2022, 11:20:03 AM
It is ready to mount a winch.
Q
Mel • 08/26/2022, 4:10:17 PM
I'd like to use a Warn Zeon 10s winch. Any issues?
A
08/31/2022, 2:01:02 PM
No problem, we have a 10s in ours. Just be sure to check clearance around the core support when installing.
Q
Adam Gallagher • 11/12/2022, 8:27:39 PM
Will Ironman’s 4x4 MONSTER WINCH 12000LBS fit?
A
11/14/2022, 1:15:04 PM
Yes it will fit.
1
0
0
0
0
Eugene Kwon (Oakland, California) | April 5th, 2021
I purchased a Victory Front Strike bumper without the bull bar, in aluminum with powder coat and I am 100% please with the product. It fits perfectly, love the look, installation was straight forward and my Baja Designs lights look superb!

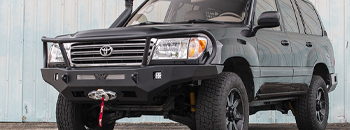

Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
