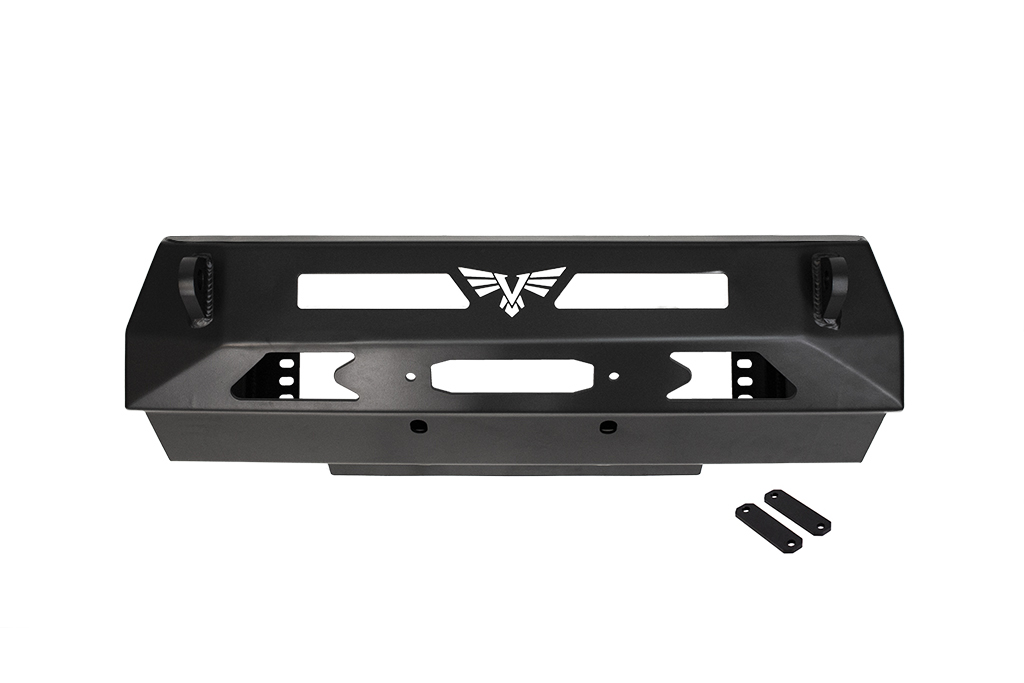

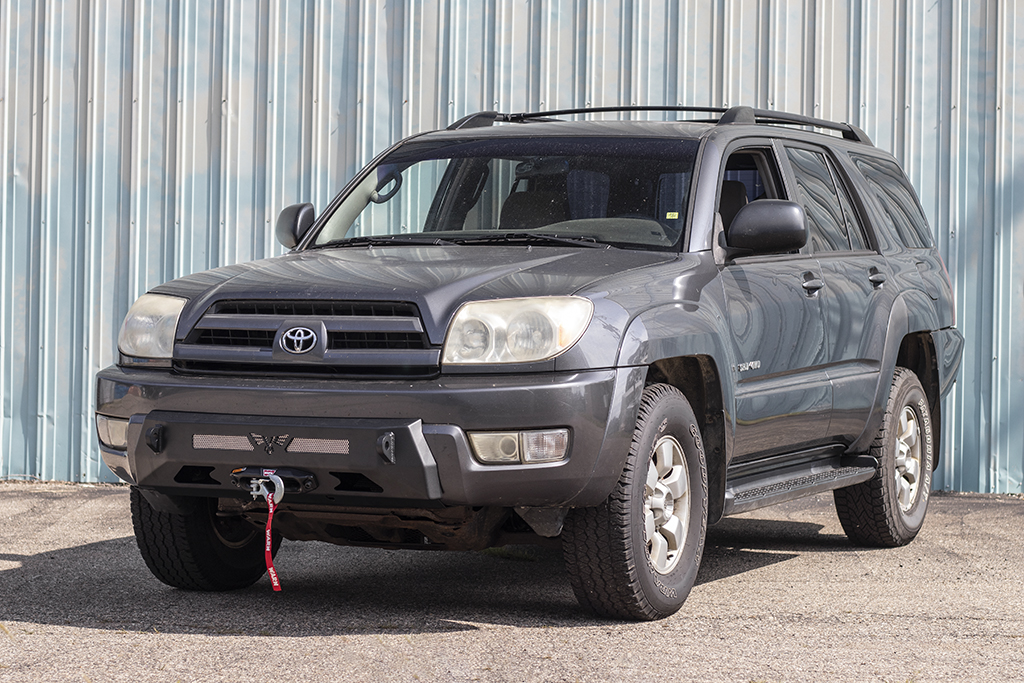

    Victory 4x4 Blitz Slim 4Runner Front Winch Bumper | 4th Gen (03-09)

    Our Blitz winch bumper for the 4th generation Toyota 4Runner is designed to integrate with your factory front bumper fascia for a clean look with maximum recovery options. This made in the USA bumper features an integrated 20" lightbar mount, 3/4" recovery tabs, plus provisions for many industry standard winches. Includes a bull bar for extra front end protection. A fairlead block off plate is included for those that don't yet have, or need, a winch. The bumper is available in a two-stage satin textured black powdercoat over durable zinc primer finish.
    • CNC cut and formed from .188" steel.

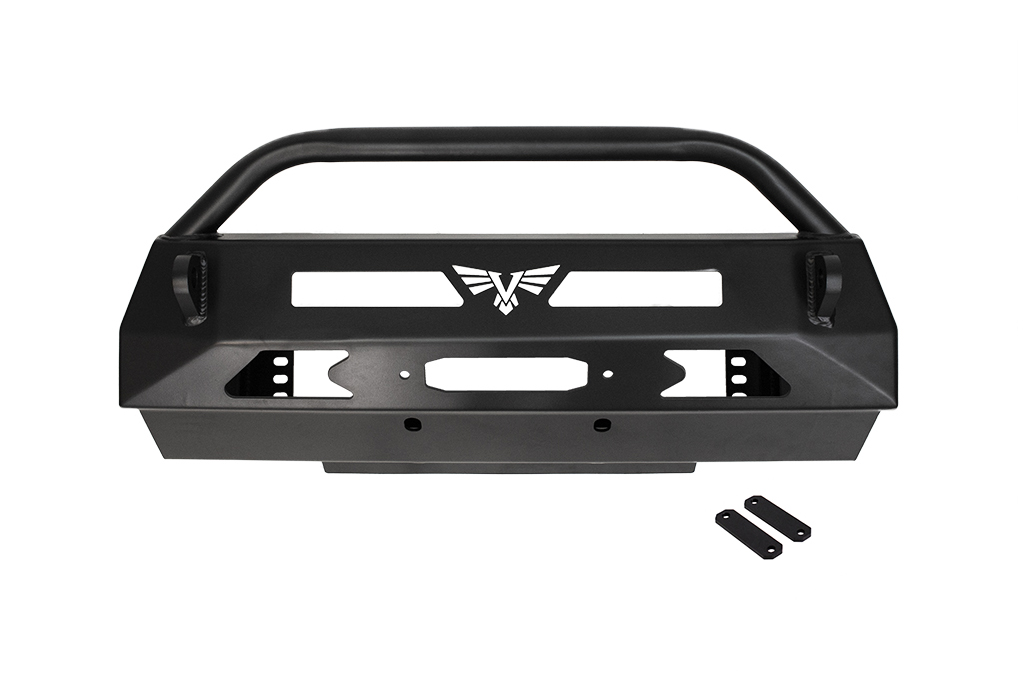

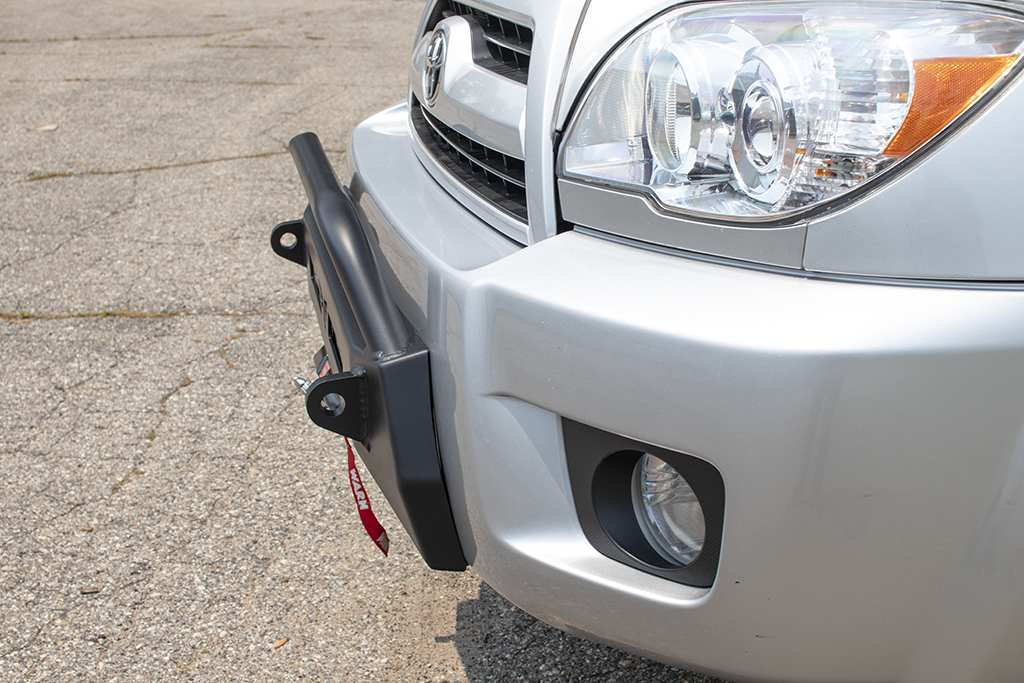

    • Includes 1.75" x .120" tubework for added grill protection.
    • Compatible with most 8-10k non-integrated solenoid or removable selenoid winches.
    • Some integrated winches will fit with a power steering return hose reroute
    • Built in provisions for a  20" single row light bar (22" max mounting width)
    • Not compatible with Onx6 20" Light Bar.
    • Proudly designed and made in the USA.

Looking for answers to common questions about us or our products? See our FAQ here.

33 Questions asked on 4Runner Front Winch Bumper | Blitz | 4th Gen (03-09)

Ask us anything

Q Rob castillo • 03/26/2020, 10:00:05 AM How big of a winch can I place in here and also how much weight can I pull? 12000lbs or 9000lbs?
A 04/06/2020, 1:46:00 PM These bumpers are designed around most 8,000lb to 10,000lb winches. We recommend the Warn VR8, VR10 due to their compact size. Many 10k or 12k are the same size as their smaller counterparts, the only difference being more gear reduction. That said am 8k winch is plenty of capacity for these vehicles.
Q Steve Davis • 04/24/2020, 4:43:53 PM Will this accommodate the Smittybilt x20 Comp 10k?
A 04/27/2020, 3:26:23 PM Yes
Q Kevin J Wissing • 05/02/2020, 10:18:04 AM What’s the difference between the 03-05 and the 06-09 bumpers? Is there a way to tell them apart? Will an 06-09 got on a 03-05?
A 05/04/2020, 10:07:42 AM No, an 06-09 will not fit on the earlier model 4Runners. They both have different front bumper fascia.
Q Joshua Drennan • 05/07/2020, 9:03:28 PM What is the bolt pattern and dimension for the winch?
A 05/11/2020, 2:36:52 PM Bolt pattern is 10" x 4.5"
Q Shane • 05/15/2020, 8:52:54 AM How much does this bumper weigh with the bull bar option? Also is this a bolt on or is drilling required?
A 05/15/2020, 1:52:09 PM 68 lbs in steel with tube. Please see this document for the install process. https://www.victory4x4.com/mm5/installdocs/V4R45FB.pdf
Q Andrew • 05/19/2020, 4:50:55 PM Does it have mounting spots for pod lights on either the top section or bull bar, or can those be tapped after?
A 05/27/2020, 3:57:49 PM It does not. You could either drill holes on the face, or use tube clamp light mounts on the bull bar.
Q Tyler Boothe • 06/09/2020, 11:37:17 PM Will this fit a dual row 20 inch lightbar? https://www.roughcountry.com/20-inch-led-light-bar-70920bda.html this is the one I have and I want to know if it'll fit before i buy the bumper
A 06/10/2020, 4:43:34 PM No, they are designed for single row bars only.
Q William • 06/17/2020, 1:43:01 AM Can we order the bumper with the full light bar area cut out without the Victory emblem?
A 06/24/2020, 5:36:22 PM We do not offer it that way, no.
Q Anthony Quintana • 07/21/2020, 10:09:25 AM I have an 03 4runner but the manual for install shows it being installed on a 06 and it shows where to cut do I cut along the red lines like the install manual shows or do I cut different for the 03?
A 07/21/2020, 11:32:11 AM You would cut out the center piece just like you do in the 06. We just added an illustration to the install document.
Q Joe Bondi • 07/25/2020, 11:46:44 PM Is a Smittybilt XRC Gen3 9.5k compatible with the bumper?
A 08/05/2020, 11:01:24 AM The winch body itself will fit, the solenoid box may or may not have to be relocated. We have not tested this specific winch at the shop.
Q Paul Johnson • 07/31/2020, 7:33:44 PM Does your 4Runner Blitz Bumper only attach to the factory bumper attachments or does it have additional attachment? As an example, the ARB bumper has additional attachment pieces that attach via bolts through the side of the frame rail.
A 08/05/2020, 11:01:24 AM It uses the factory attachment points.
Q Steven Brewer • 08/05/2020, 9:22:35 PM I have a 1" body lift on my 04 4runner. Do you make a different bracket for the 1" difference or custom make the Winch Bumper for the 1" difference?
A 08/11/2020, 5:22:43 PM We do not make anything special for a 1" body lift, but you could trim your bumper fascia accordingly on the install and it would probably look OK.
Q Justin Maxwell • 10/06/2020, 7:46:37 PM How does someone access the winch in the event of a clutch issue?
A 10/16/2020, 3:25:50 PM You can access the clutch lever though the front holes in the bumper.
Q Dante • 10/29/2020, 10:33:50 AM Is there any recommendations for mounting a license plate for states that require it?
A 11/03/2020, 4:03:33 PM https://www.victory4x4.com/product/UNI-FPF-PC.html
Q Shaun Seela • 12/28/2020, 12:09:12 PM Do you have a list of winches that you know fit in this bumper?
A 12/30/2020, 5:10:18 PM It would be best to contact us with what winch you plan on running. [email protected]

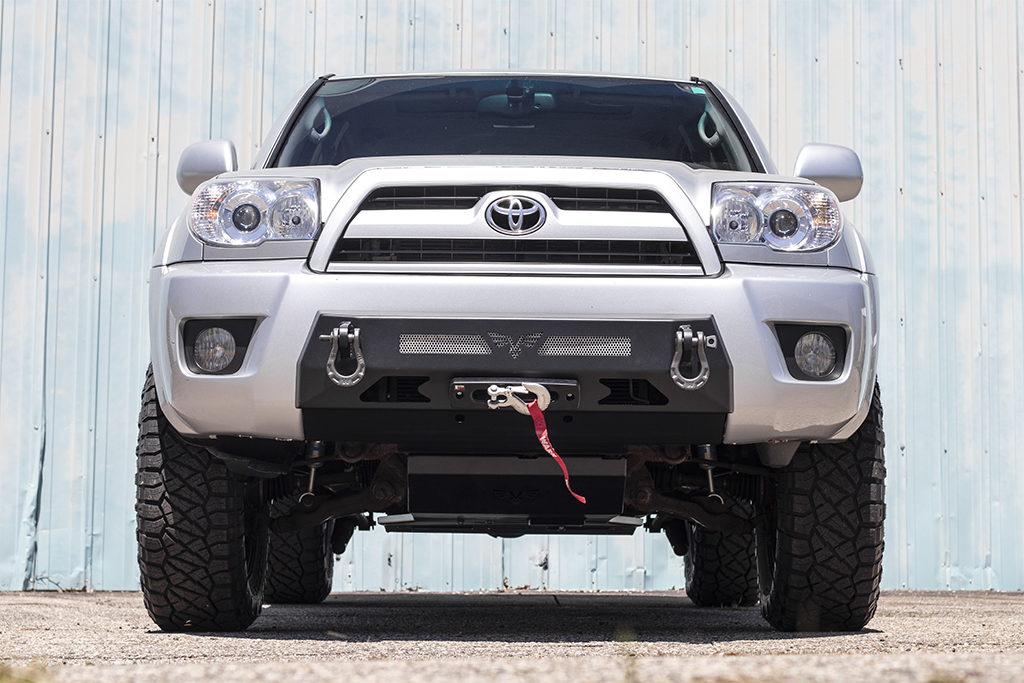

Q Ethan Taylor • 02/06/2021, 1:53:50 PM What winch is being used in the photos with the silver 4th gen?
A 02/08/2021, 11:48:56 AM Warn 8K VR EVO
Q Noah • 02/11/2021, 7:27:00 PM Will your winch bumper for a 2004 toyota 4runner fit a newer WARN EVO VR10?
A 02/15/2021, 12:52:47 PM Yes

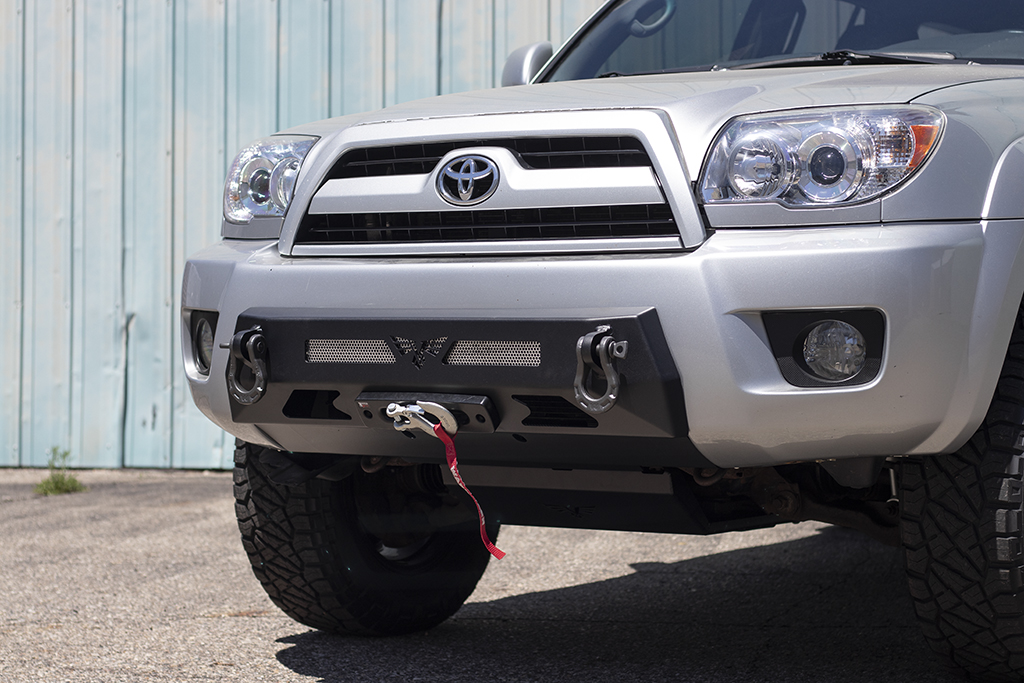

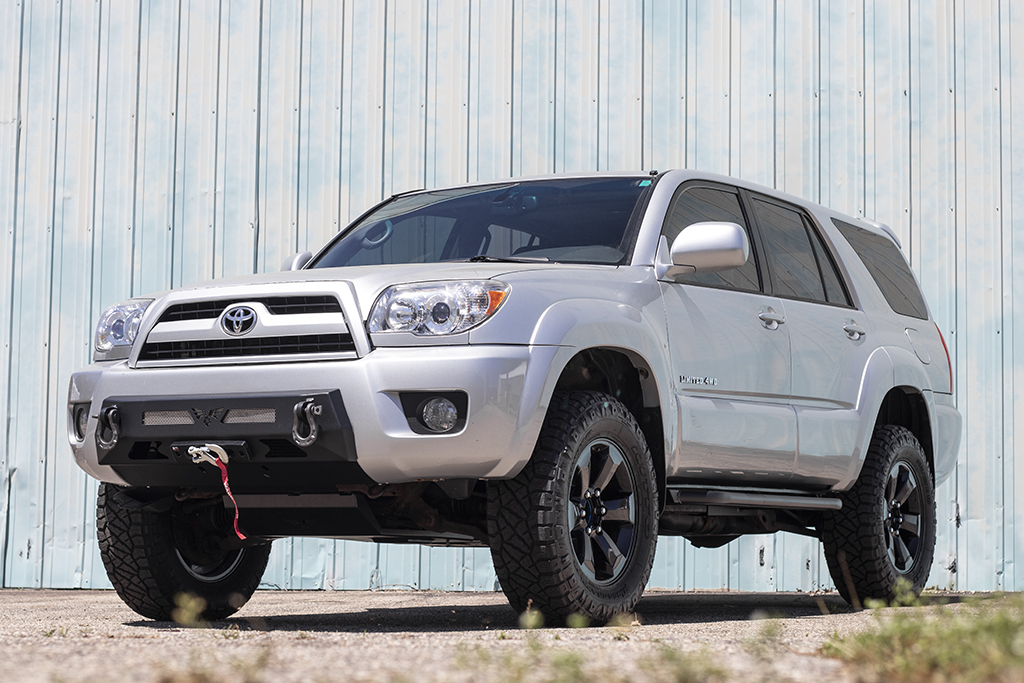

Q mike • 04/09/2021, 3:02:14 PM Is the one silver 4Runner pictured the powder coated or bare metal?
A 04/12/2021, 1:13:17 PM Powdercoat
Q Jeff • 04/18/2021, 7:02:42 PM Can I put a light bar where it looks to be mesh behind the symbol in the middle
A 04/21/2021, 2:11:12 PM Yes, it's designed for a single row 20" light bar (22" max mounting width.)
Q Max Downing • 07/24/2021, 3:49:15 AM I like how the tube option looks, but I would like to mount a 30" curved light bar behind the bottom half of the '06-'09 grill (Satoshi style). Can I get one of these with a slightly shorter tube so that the light from such an LED bar would be unobstructed?
A 08/12/2021, 3:19:20 PM We only offer the tubework as shown at this time.
Q Matt Thompson • 09/25/2021, 1:25:32 AM Will you make the 4th Gen Blitz Winch Bumper in aluminum like you do for the 5th Gen? If so, what would the weight difference be between aluminum and steel?
A 09/28/2021, 3:16:26 PM We don't currently have plans for an aluminum version.
Q carlos mesa • 10/20/2021, 1:31:48 PM will this work on a 2005 4 runner limited
A 10/26/2021, 4:23:38 PM Yes it will, just be sure to choose the 03-05 option.
Q rick Greer • 11/08/2021, 10:16:36 PM which 20" lighter do you recommend, so many choices these days ?
A 11/10/2021, 11:43:59 AM We recommend the Baja Designs S8 20" LED Light Bar. Search under the Lighting category on our site!
Q Colby • 11/18/2021, 9:44:24 AM Does the bumper for the 03-05 4Runner come with the upper tube option?
A 11/18/2021, 12:22:42 PM Yes, you can choose tube or no tube.
Q Terry • 12/27/2021, 1:32:01 AM What are the dimensions of the light bar cutouts on each side? Can I fit two 6" lights?
A 12/27/2021, 8:59:30 AM The width between the mounting tabs is 22".
Q Philip Shama • 03/14/2022, 0:58:26 AM For an 03', is there an aluminum options? Recovery hooks not needed.
A 03/16/2022, 12:04:14 PM We do not have an aluminum option for the 4th Gen Blitz.
Q Yarrow • 03/20/2022, 12:04:48 PM Will the bumper work with a Harbor Freight Badland Apex 12,000lb winch?
A 04/06/2022, 1:11:19 PM You will likely have to relocate the solenoid box.
Q Ty • 04/04/2022, 1:30:10 PM Will the stock skid plates work with this Blitz bumper?
A 04/04/2022, 3:42:57 PM Yes
Q Danny Weber • 10/14/2022, 10:40:03 AM Will a Badland ZXR 12000 work with this on an 05 4runner?
A 10/18/2022, 2:54:59 PM Yes, should work fine, but you may need to remote mount the solenoid box.
Q Ed • 11/28/2022, 8:22:11 PM Will it work if you have a 3" spacer lift?
A 12/01/2022, 10:54:56 AM A 3" body lift? It may work, but we haven't tested that.
Q Mike • 10/13/2023, 10:53:37 AM I thought I saw in the past that this was offered without the upper bar/hoop, but I don’t see it as an option now. Is that still something I can order? I think it looks cleaner without the hoop.
A 10/13/2023, 11:16:51 AM This bumper is currently only offered with the tube.
Q Jerome • 02/06/2024, 2:34:06 PM Would a bolt on grill/light guard fit this without the bull bar?
A 02/14/2024, 12:07:53 PM No, it would not.
Q German akino • 02/06/2024, 8:36:01 PM Will this fit on a 04 GX470?
A 02/14/2024, 12:05:43 PM It will not.
★★★★★ ★★★★★

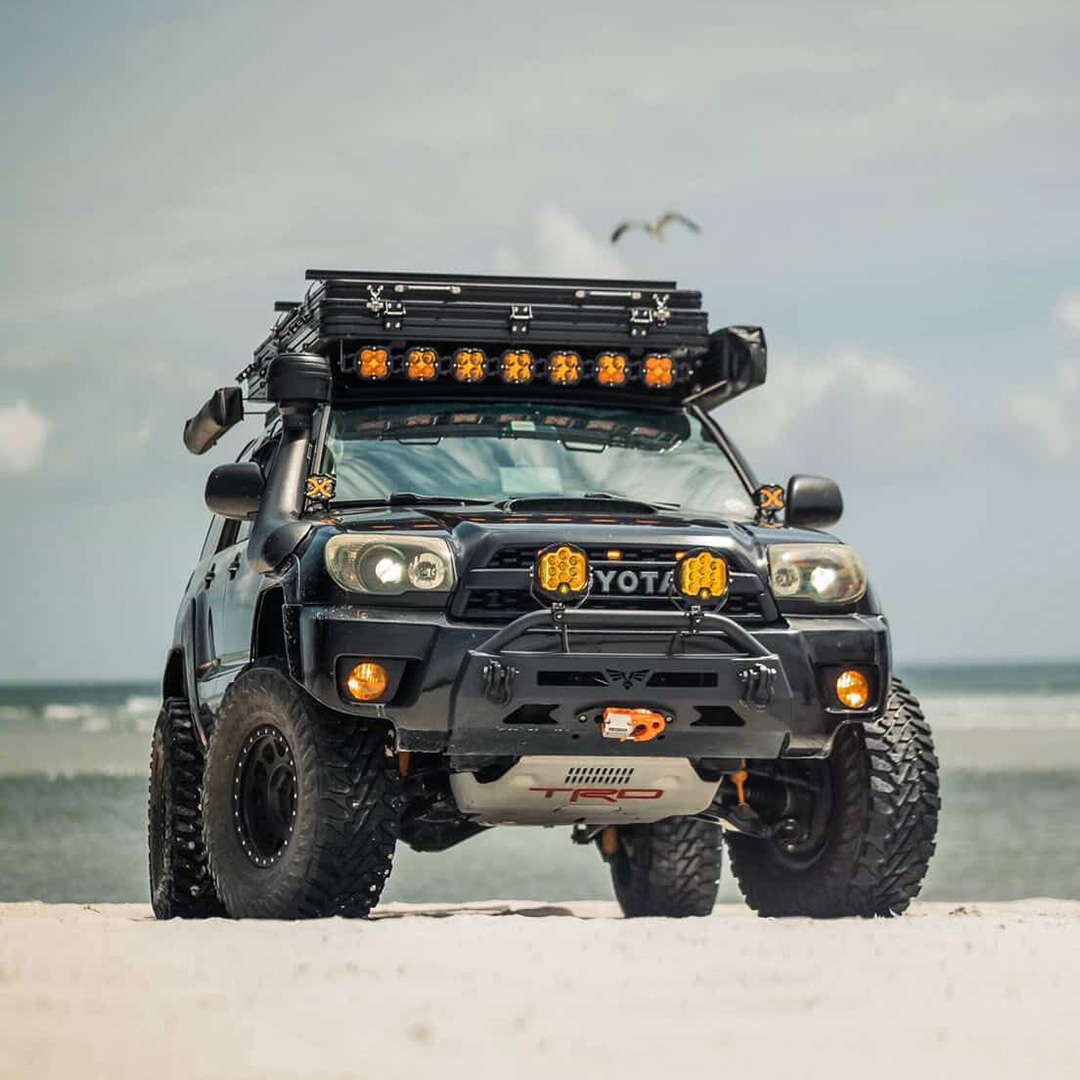

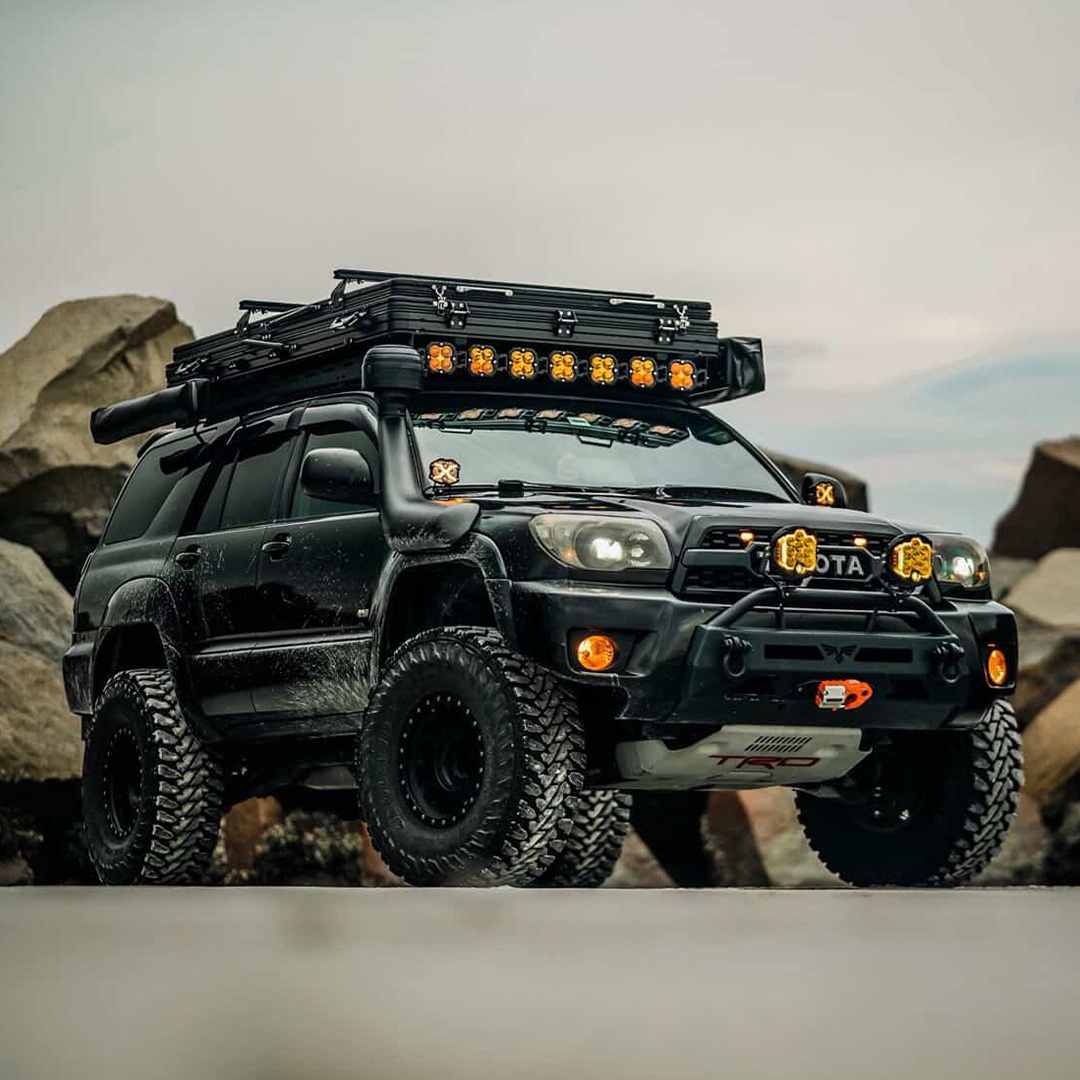

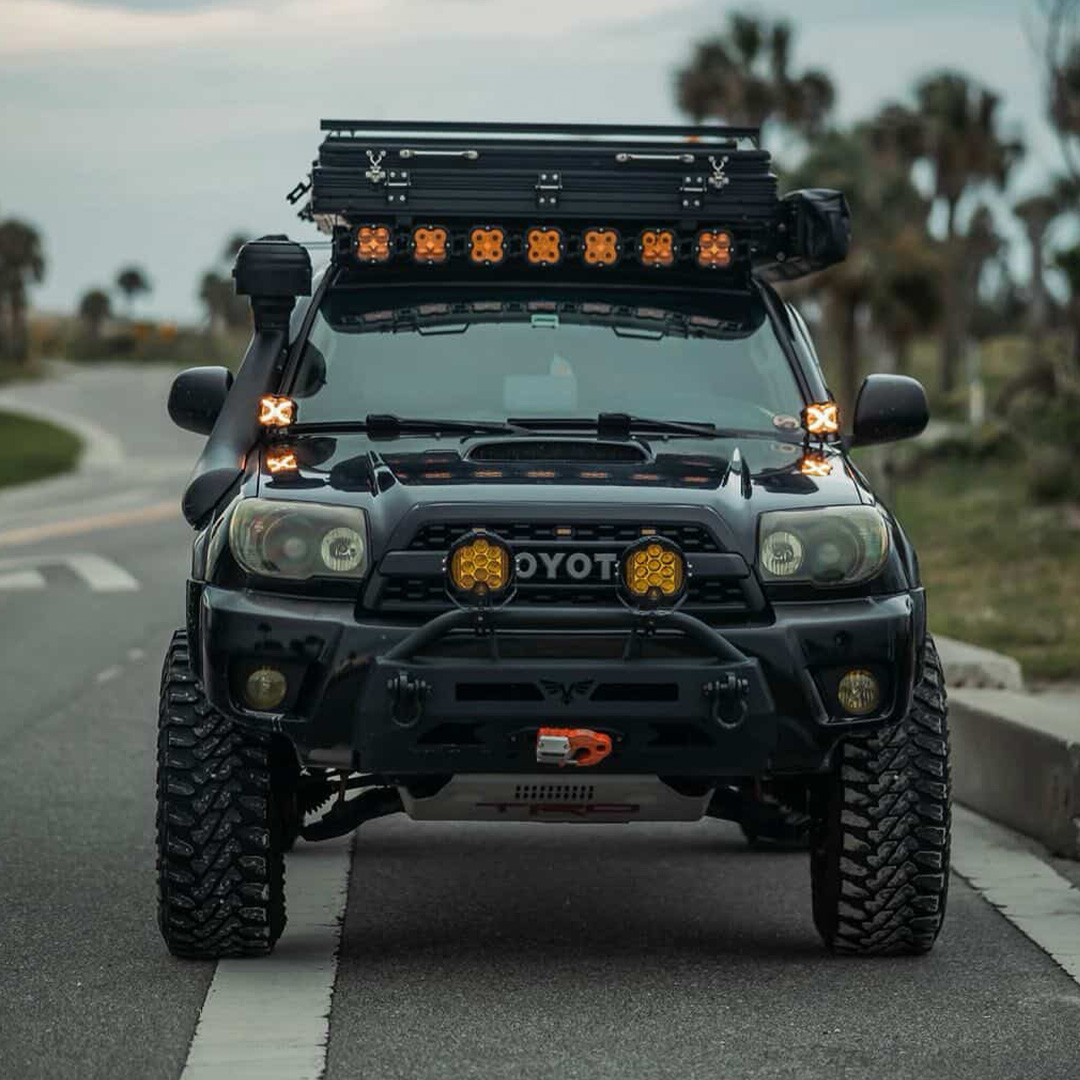

5/5 Stars out of 10 Reviews
Great Winch Bumper and Easy Install
(CO) | October 16th, 2023
Great bumper, I ordered mine for a 2006 4Runner, put a 13,500 lb Rugcel winch and an off brand 20" light bar. I watched the YouTube installation video and it was pretty easy to figure out after that. I installed it on my own, no jack was needed, my setup was just under 200 pounds, if you can pick up the bumper and get it on the frame bolts, it will balance well enough to hand tighten some nuts on sonit doesn't fall. The hardest part was installing the winch on the bumper, the holes are tough to get lined up on 2 of them. Everything fit great with lots of room to spare, I don't think you really need a compact winch. I also recommend installing this bumper before putting the plastic bumper cover back on, made things so much easier. The cuts I had to make on the bumper cover made it super easy to install back on right around this new bumper. Great product, and I had mine delivered in less than 2 months. Also received a phone call after ordering the product to answer any questions, who does that anymore? Great customer service.
Note From Victory 4x4: Thanks for the review, Tyler!
Just Right
(North Carolina) | April 5th, 2022
Very pleased with this winch bumper insert for an '06 4Runner. Build, Fit, and Performance are just right. No issues adding light bar - plenty bright with centered V logo. Had the bare metal painted matte black to match rear bumper insert and gives it an understated, integrated look. Victory was easy to work with and product was delivered as promised.
Looks great/ works great
(Syracuse) | February 18th, 2022
Arrived early than expected and it looked great. Wish the holes for the winch mount were a little bit bigger. A regular 16 mm socket will fit tightly, but an impact/deep socket or anything bigger wont. Its tough to access the top of the winch, but I think this is more with the 4R design than the bumper. Very happy with my purchase. I did not notice the V logo causing any problem with my lightbar or causing a shadow, etc
Great bumper
(Central Texas) | January 11th, 2022
Very clean bumper. They delivered within 3 months, I can say it was worth it. Good quality and happy with the product. I put a 10k warn winch and total weighed a bit over 200lbs. I also have ordered the molle pannels and a roof rack from em... couldn't recommend victory 4x4 enough.
The victory logo occludes the LEDs. Bummer.
(California) | December 7th, 2021
I have a light bar with beam center and flood sides. The v logo significantly impairs the center LEDs. It’s not just cosmetic. We tested it on and off the bumper and the V winged logo turns the flood into a wedge.
Blitz bumper
(Breckenridge Colorado) | May 29th, 2021
Excellent low profile bumper plenty of room for a Warn 10,000 lbs. winch. Top quality fit and finish. Fast shipping and lead time.super solid. Top notch powder coating.
Low profile
(Utah) | November 21st, 2020
Not a hardcore off-roader here but wanted something to mount and conceal a winch and not have to remove the whole bumper. Also, before this I had never ‘modified’ a vehicle (2004 4Runner). Couldn’t be happier with this purchase. Great way to add a winch and a little bit more protection to the front end of the vehicle. Certainly have 2 people handy. Love the light bar slot but my only complaint is that the emblem does diminish the output. Also, didn’t realize how much the weight on the front of the vehicle would affect the ride of the stock suspension. Had to upgrade to coil overs on the front to be able to handle the weight of the bumper and winch. Seems well built and engineered (certainly better the stock bumper that was removed). Otherwise we’re ready for the rough stuff.
Excellent bumper insert
(CO) | October 15th, 2020
This bumper insert is great and looks great too! Fit was exact and easy to install. Shipping was fast and easy. Fit the winch perfectly as well.
Great bumper!
(Indiana) | October 1st, 2020
This thing is great and super easy to install. Having a friend definitely helps, especially if you're installing with a winch. Great product!
blitz bumper install
(FL) | September 24th, 2020
Product is of great quality and finish. Installed easily and perfect fit. thanks

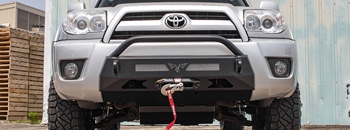

Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
