GX Rear Bumper | Strike | 470 (03-09)

★★★★★ ★★★★★ 4.25/5 Stars. (4 Reviews)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)
  • GX Rear Bumper | Strike | 470 (03-09)

Price:
$1,949.00
Now:
$1,754.10



Code: VGXRS-47

Weight: 135 (lbs)

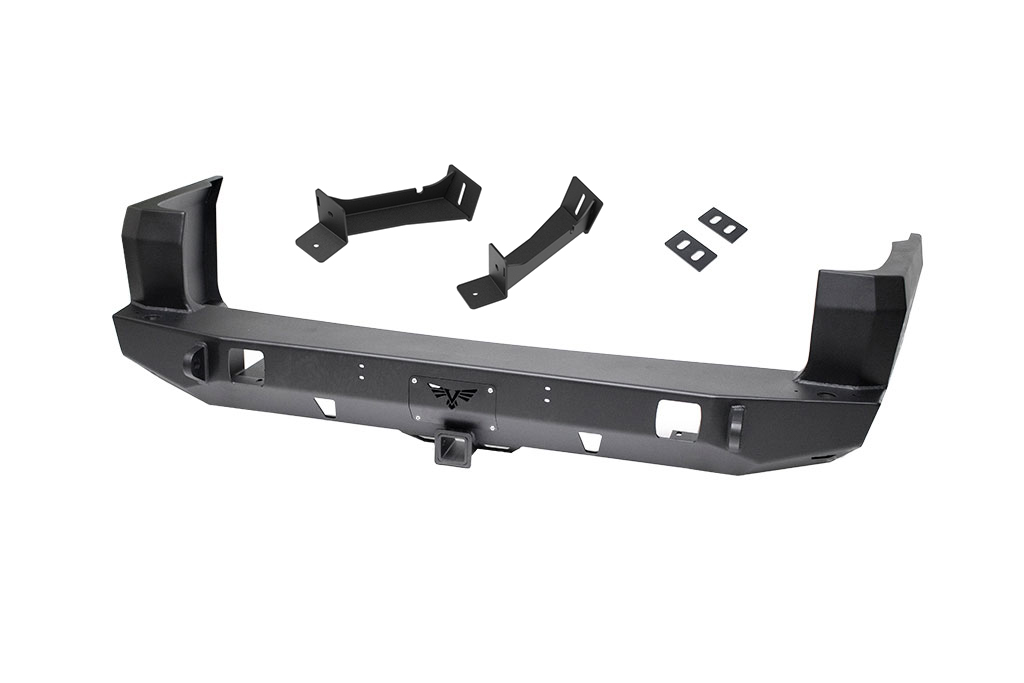

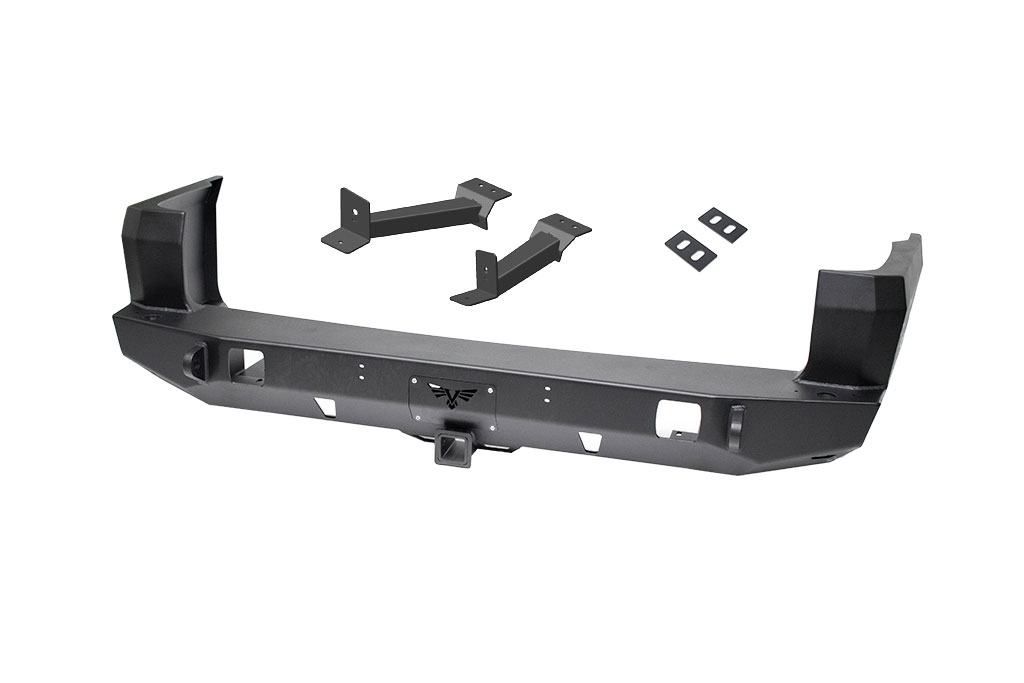

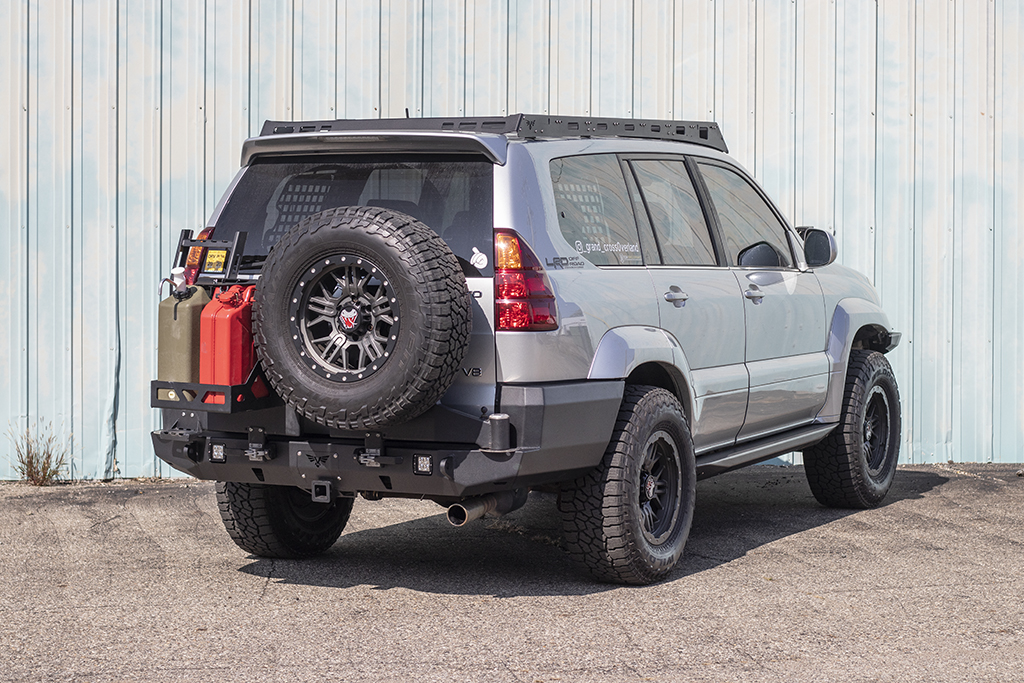

      When you need maximum protection, recovery options, and a modular swingout system; our Strike Series rear bumper is the perfect choice. This made in the USA bumper features integrated cube light mounts, 3/4" recovery tabs, and built-in provisions for dual swingouts that can be added or removed at any time! (Sold separately.) The bumper is coated in a 2 stage satin textured black powdercoat over durable zinc primer finish.
        • CNC cut and formed from .188" steel.
        • Built-in hitch.¹

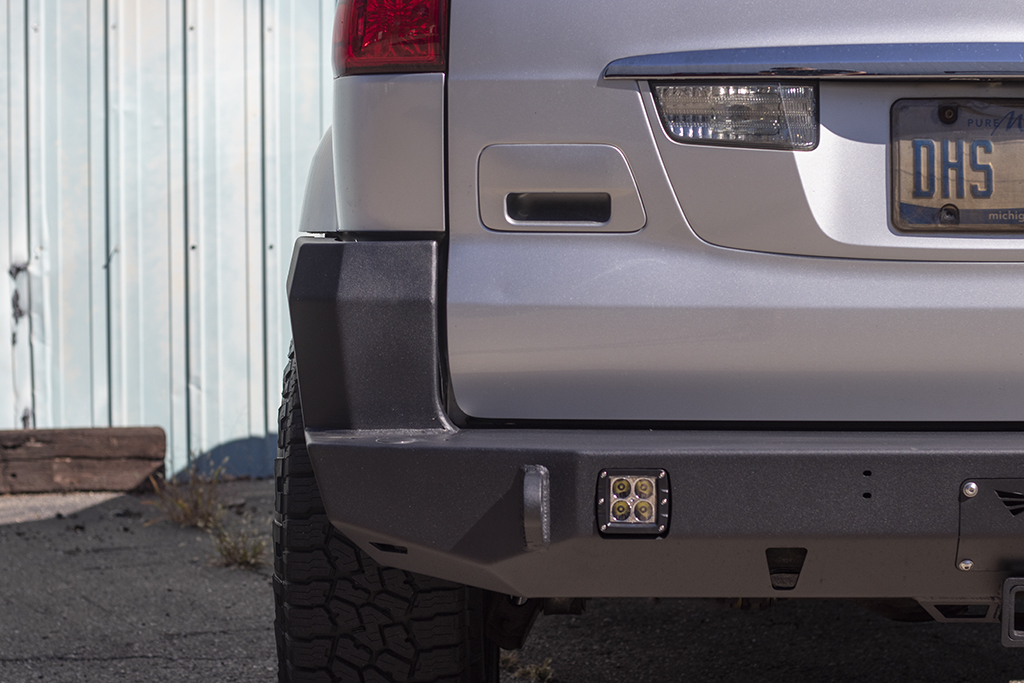

        • Built-in provisions for cube lights.

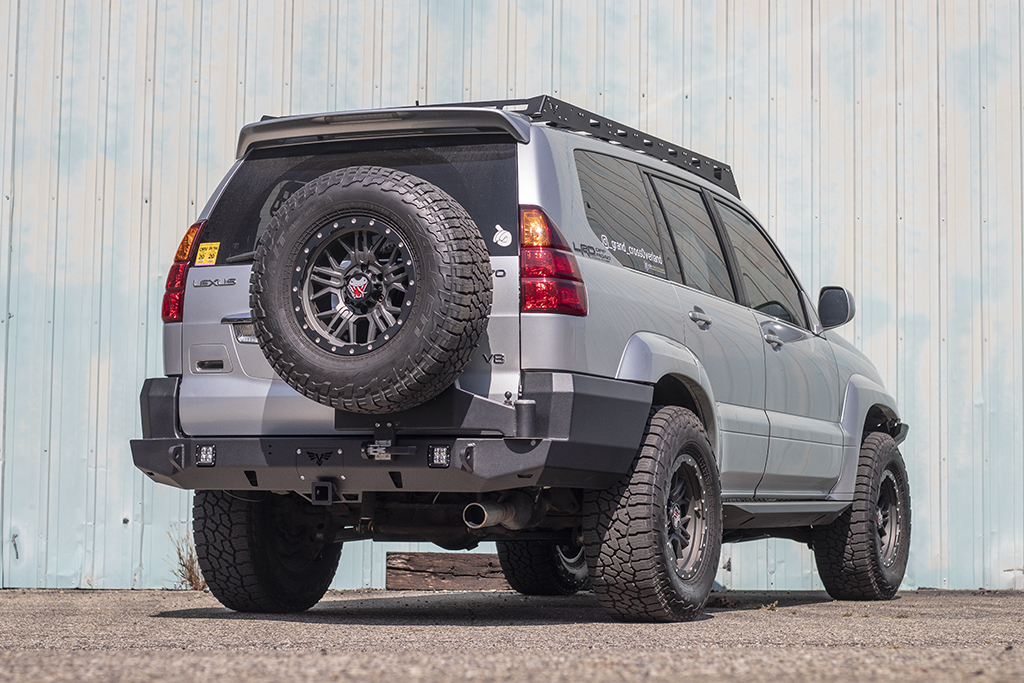

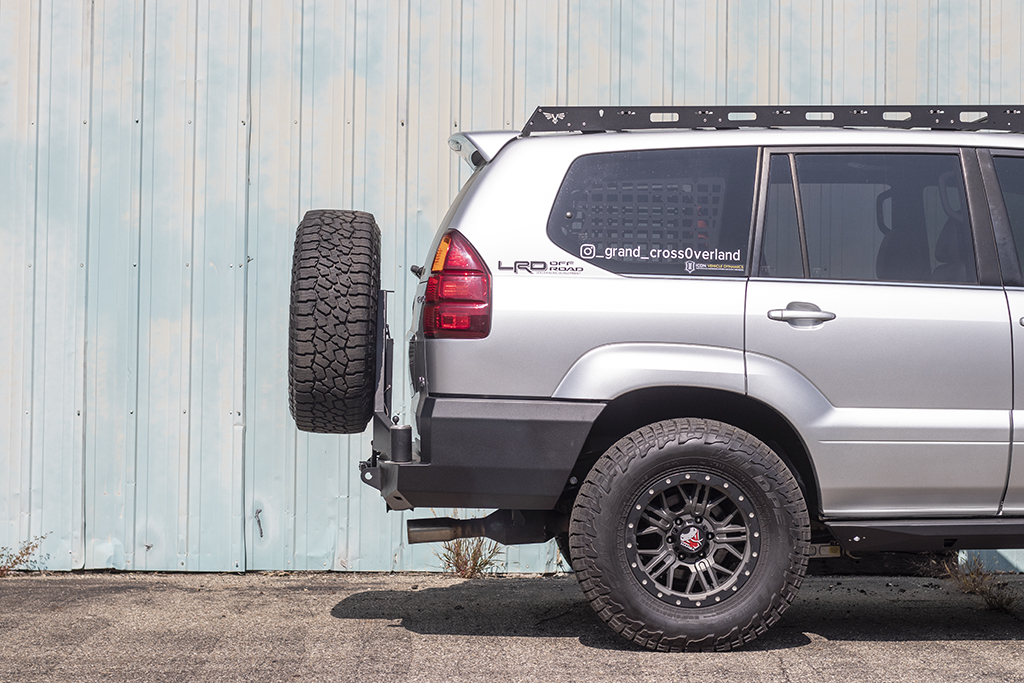

        • Built-in provisions for left and right Adventure Carriers (can be added at any time, sold separately; see related products below.)
        • Built-in Hi-Lift jack points.
        • Bolt-on installation.
        • Proudly designed and made in the USA.
      Ships freight only! Rate calculated at checkout. Please contact us with any questions: https://www.victory4x4.com/CTUS.html

      ¹ Built-in hitch tied-in to the factory hitch receiver mounting locationsDesigned to support the loads of the factory center-mount hitch tow capacity, but carries no SAE certification, nor is it designed to meet any DOT or FMCSA regulation.
        We produce these products in a low volume compared to the OEMs or aftermarket receiver hitch companies. As such, it's not feasible for us to get this product tested against SAE J684 specifications or design it meet specific DOT or FMCSA regulations. So while we try to over-engineer our products with the loads of the factory vehicle capacity in mind; towing a trailer on public highways is at your own risk and we make no claims on the legality or viability of doing soWe cannot offer any recommendations on capacity beyond this. If the ratings of the factory receiver hitch are important to you, we would recommend choosing a bumper that keeps that in place.

    Looking for answers to common questions about us or our products? See our FAQ here.

    27 Questions asked on GX Rear Bumper | Strike | 470 (03-09)

    Ask us anything



    Q Emerson Nigos • 09/29/2020, 0:17:26 AM Does it have adequate clearance for a 35” tires? I currently have a 3” Dobinson lift. Also is your swing out (right side) comes with the spare tire mount?
    A 10/01/2020, 1:40:01 PM A 35" tire can fit, the tire mount is additional.
    Q Glen Hugo • 10/01/2020, 11:06:45 AM Does it come with a tire swing out or is that extra?
    A 10/01/2020, 1:40:01 PM They are additional.
    Q Mitch Klann • 10/16/2020, 8:15:21 PM Can you attach both the dual jerry can and the hi-lift jack attachment to the driver side swing out?
    A 10/20/2020, 7:11:43 PM The brackets cannot be mounted together on the same carrier. With some creativity (and a couple drilled holes) you may be able to mount a hilift on the side of the dual jerry can holder, however.
    Q alan • 10/25/2020, 7:21:30 PM what are the specs for the cube light mount on the rear bumper?
    A 10/26/2020, 5:00:50 PM Most standard 3x3" LED cube lights work great.
    Q john serrano • 11/16/2020, 11:37:45 AM will bumper allow for the stock spare mounted under vehicle?
    A 11/23/2020, 11:48:44 AM Yes it will.
    Q Ramzi • 11/17/2020, 6:27:04 PM What is the max weight on the swingouts?
    A 11/23/2020, 11:48:44 AM We recommend keeping a max of around 150 lbs per swing.
    Q Paul Markert • 12/07/2020, 4:48:31 PM What is the weight of the bumper w/o any swing outs?
    A 12/09/2020, 4:56:08 PM 135lbs
    Q Henry Bui • 12/17/2020, 10:50:46 PM Are both swingout arms included with the bumper?
    A 12/23/2020, 5:37:41 PM No, part VAC is sold separately.
    Q Ian • 01/17/2021, 1:04:13 AM Is there a way to maintain the factory reinforced towing hitch with a 6500 lb rating? I understand that your hitch is unrated, I mean having both the rear bumper and the OE hitch installed simultaneously
    A 01/20/2021, 10:23:39 AM They cannot be installed simultaneously.
    Q Kirk Anderson • 03/16/2021, 1:29:36 PM What is the measurement from the hitch to the bottom of rear door with this bumper installed? I am trying to determine if a hitch mount bike rack will allow the tailgate to clear.
    A 03/16/2021, 3:46:53 PM 6.5"
    Q Joe L. • 04/22/2021, 4:56:22 PM Can this be ordered without the trailer hitch to allow for use of a class IV hitch?
    A 04/28/2021, 5:52:40 PM It can not.
    Q Daniel • 04/27/2021, 1:11:39 PM Is this rear bumper compatible with the support tab of the JW offroad tire carrier? It seems like it would be but it is hard to tell for sure. Thanks!
    A 04/28/2021, 5:26:15 PM We haven't tested at the shop, but looking at the photos, it should work fine in theory.
    Q tom p • 06/28/2021, 2:38:52 PM Does this fit with both swing outs with a gobi ladder?
    A 07/08/2021, 1:33:12 PM No, it does not. We do offer a ladder for the driver swing out however.
    Q Steve Dessy • 10/05/2021, 4:43:15 PM What is the departure angle for the GX470 with this bumper?
    A 10/05/2021, 5:46:57 PM That would depend on your lift height and tire size. It is increased over stock.
    Q Ben Drummond • 12/10/2021, 8:45:28 AM 3 questions on the go 470 rear strike bumper When mounted on the swing arm , does a 33 inch tire obscure the right rear taillight. The picture looks like it may cover a portion. I see that you have a kit to mount the backup camera on the swing arm. Could you mount ion the inside of the plate that has the victory logo (enlarge hole) and run wire through the inside of the bumper? Current delivery closer to 30 or 90 days?
    A 12/14/2021, 1:52:33 PM A 33 won't obscure the taillight. You could mount it there, but it would require drilling holes for the bracket and the viewing angle of the camera would likely be pretty far off. Currently closer to 90 days.
    Q AR • 01/18/2022, 12:09:51 PM Do you plan to offer this in aluminum?
    A 01/19/2022, 11:49:42 AM We do not. The structure and strength required for the carrier system makes steel the best choice.
    Q Chris • 02/11/2022, 2:54:08 PM Does this bumper have a way to adjust for a 1 inch body lift?
    A 02/11/2022, 3:57:40 PM Not really, no.
    Q Mat Schultzq • 03/15/2022, 2:32:51 PM Is the bumper winch compatible?
    A 03/16/2022, 11:53:33 AM The rear bumper does not have provisions for a winch.
    Q Trevor • 05/15/2022, 4:48:32 PM Would this work with a nashfab co ladder?
    A 05/16/2022, 9:39:23 AM Yes
    Q David • 07/22/2022, 8:29:41 PM With the optional swing outs, would this allow dual spare tires to be run without drilling my own holes?
    A 08/08/2022, 11:09:35 AM It will not, the GX is not wide enough.
    Q Johno Skeeters • 01/15/2023, 9:13:16 AM Does this fit a 08 Xterra ??
    A 01/20/2023, 4:48:49 PM It does not.
    Q Nathan • 02/17/2023, 3:54:41 PM Does this weigh down the rear suspension enough to adjust ride height?
    A 02/23/2023, 11:42:16 AM Depending on what suspension you have honestly. If you install this and load it with gear, you may want stiffer springs if you are running factory.
    Q Alan Proctor • 05/04/2023, 2:59:18 PM Does the bumper have a provision for a trailer light connector?
    A 05/08/2023, 3:25:47 PM It doesn't. You can mount one to the factory rear cross member usually, however.
    Q Marvin Maya • 11/28/2023, 4:46:51 PM What size hitch receiver?
    A 11/29/2023, 11:32:11 AM It's designed to accept a 2 inch hitch.
    Q Logan Harris • 12/31/2023, 5:56:39 PM Will these fit on a 03-09 4runner? I noticed the full bumper on the previous design but saw it changed to the half bumper.
    A 01/19/2024, 11:48:28 AM This bumper will not fit a 4G 4R. Here is a link to our bumper for that model. https://www.victory4x4.com/product/V4R4RS2.html
    Q Mohammad Bashiri • 06/16/2024, 11:57:41 AM Will these fit on a 2007 land cruiser prado 120 ?
    A 07/17/2024, 11:44:23 AM This bumper was only designed around the GX470, we have not tried mounting it to a Prado.
    Q Andrew • 08/05/2024, 11:35:14 AM I am checking to see if you sell just the hardware for the rear bumper? If so, what's the cost? Thank you 720.432.9161
    A 10/16/2024, 4:09:18 PM Please reach out to our CS team 269.353.1184 [email protected]
    ★★★★★ ★★★★★
    4.25/5 Stars out of 4 Reviews
    1
    0
    2
    0
    3
    1
    4
    1
    5
    2
    GX470 Front Strike bumper. Looks Sweet and easier than I thought to install
    (CA) | March 17th, 2024
    I was able to squeeze an Apex 12000lb Badlands in there without relocating the solenoid. Everything looks great and sturdy.
    Note From Victory 4x4: Thanks, James!
    Gx470 rear bumper
    (Fl) | October 14th, 2021
    Absolutely love the look of the rear bumper fit and finish and the simplicity of the install. I have a right rear swing arm and tire carrier and it also was a simple install but yet a very solid hold and secure closure. Pictures on Instagram @td_toyotas
    Bumper fit great, missing wing brackets
    (Chandler, AZ) | October 27th, 2021
    The bumper slid right into place and looks great! Unfortunately the wing brackets were missing in the shipment but coordinated with customer service and they are manufacturing. The hole for the spindle in the number was welded slightly off round so took some elbow grease and a rubber mallet to install. Otherwise just looks amazing.
    Still missing wing brackets
    (Chandler, AZ) | February 4th, 2022
    Thank you for reaching out on our order. Still have not received our missing wing brackets that got lost in the original bumper shipment. Would like to use our vehicle off-roading but can’t without the brackets.
    Note From Victory 4x4: Melody, we will have customer service reach out and see what's up.

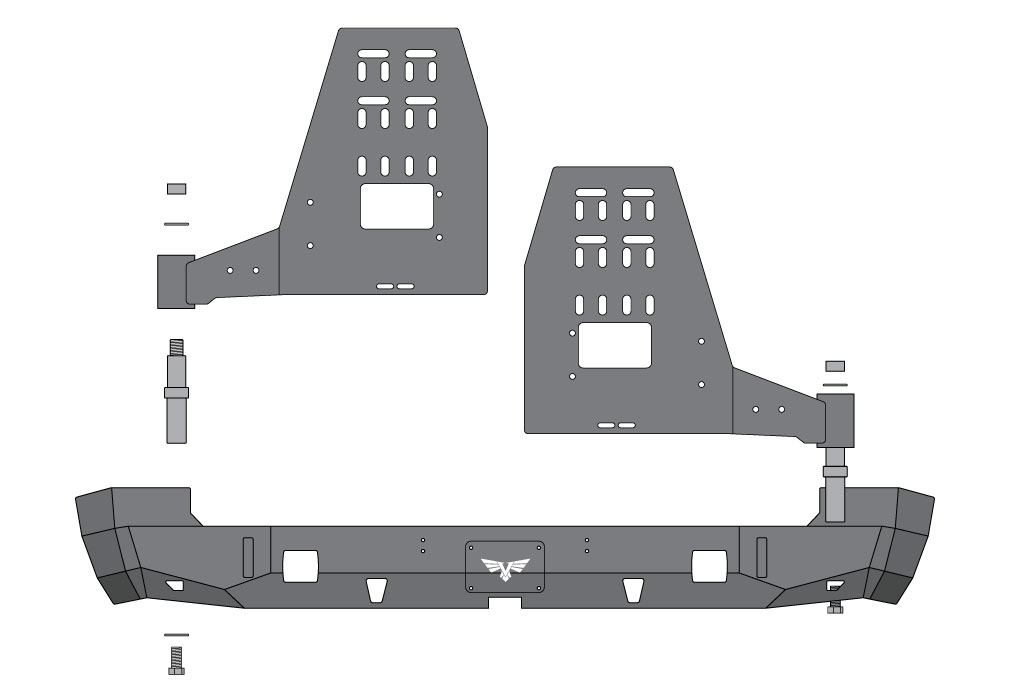

    MODULAR DESIGN

    Add or remove Adventure Carriers at any time to suit your adventure.

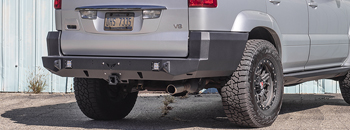

    Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
    Please be sure to read the PDF installation instructions (if available) as well.
