Baja Designs Squadron Sport LED Lights (Pair)

No reviews yet. Write review.

  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)
  • Baja Designs Squadron Sport LED Lights (Pair)

$249.95



Code: 5578XX

Weight: 2 (lbs)


Free Shipping!


    Description:

    Notice, this item is drop shipped from Baja Designs.

    Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies.  The Squadron® Sport utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts per light, making it ideal for near field, side/backup and scene lighting application. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

    Baja Designs Features:

    • Satisfactions Guarantee – 30 Day Money Back Guarantee
    • Limited Lifetime Warranty – Complete Purchase Protection
    • uService® – Replaceable Lenses And Optics
    • ClearView® – All The Light, Right Where You Need It.
    • MoistureBlock – Waterproof, Rain Proof, Submersible
    • CopperDrive® – Only LED Driven At 100%
    • 5000K Daylight – Less Driver Fatigue, Natural Color

    Specifications (per light):

    • Lumens: 3,150 Utilizing 4 LEDs
    • Wattage/Amps: 26W / 2A

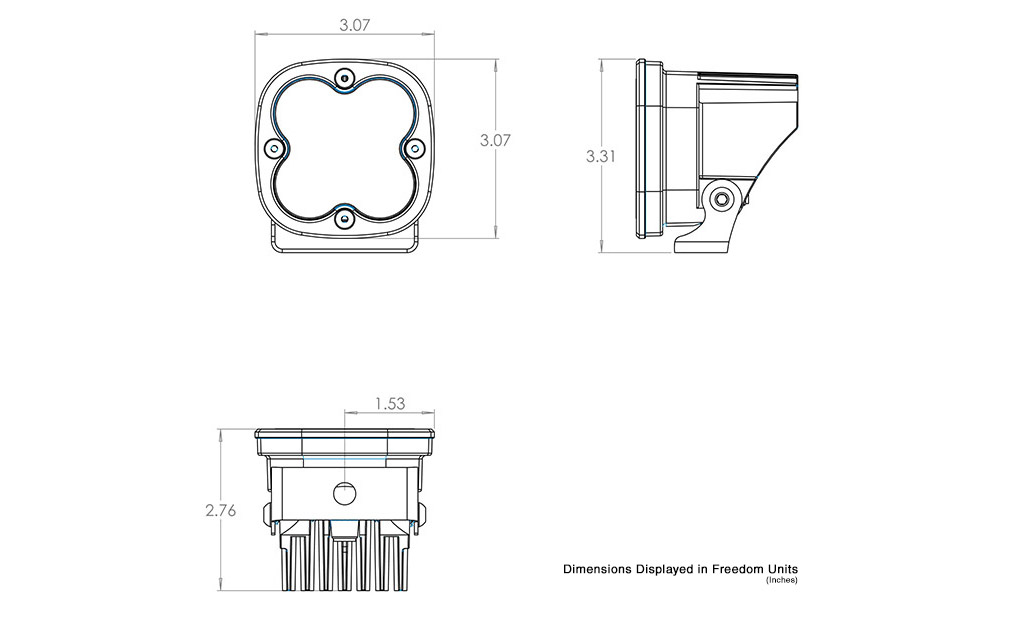

    • Dimensions: 3.07" x 2.77" x 3.07"
    • Weight: 12 ounces
    • LED Life Expectancy: 49,930 Hours
    • Front Lens: Hard Coated Polycarbonate
    • Housing: Powder Coated Cast Aluminum
    • Bezel: Billet Machined Aluminum
    • Hardware & Bracket Material: Stainless Steel
    • Exceeds MIL-STD810G (Mil-Spec Testing)
    • Built-In Overvoltage Protection
    • IP69K (Waterproof, Submersible to 9ft)
    • IK10 Compliant (Mechanical Impact Testing)  

    Please note that this light does include a harness.

    Includes:

    • (2) Squadron® Sport LED Lights
    • Mounting Brackets
    • Wiring Harness

    Patterns:

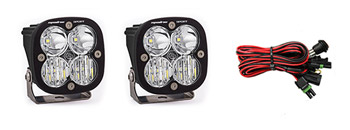

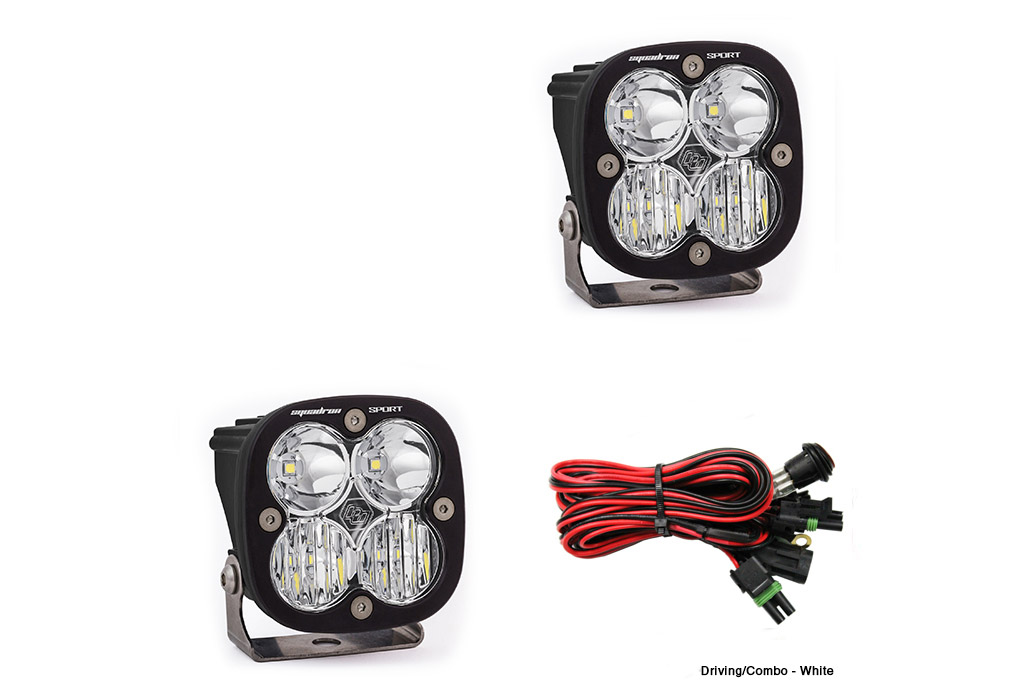

    • Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

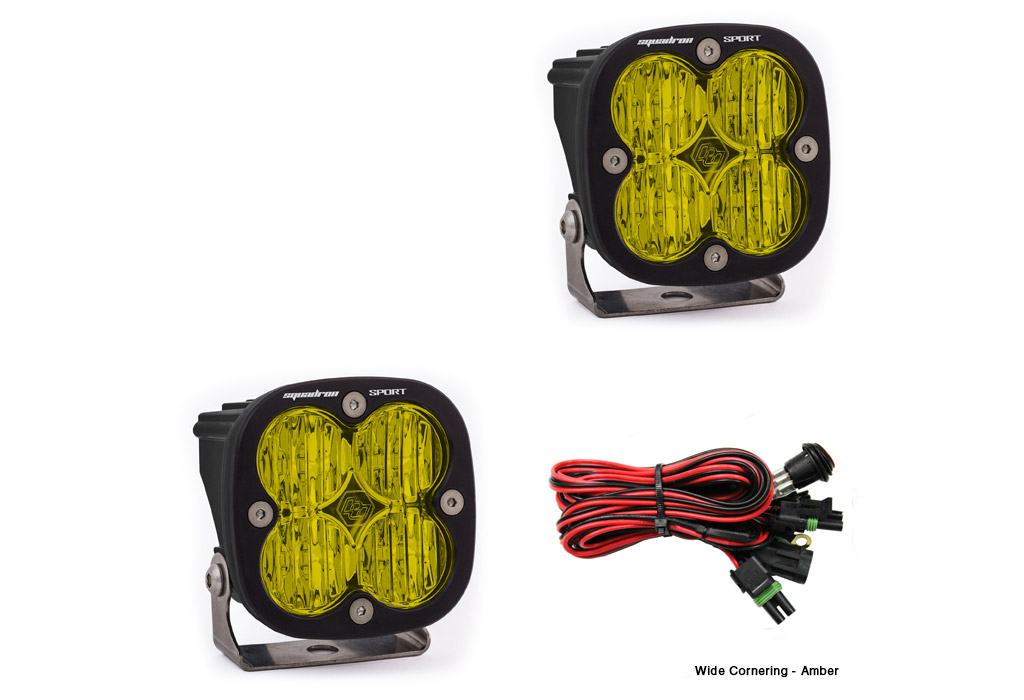

    • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

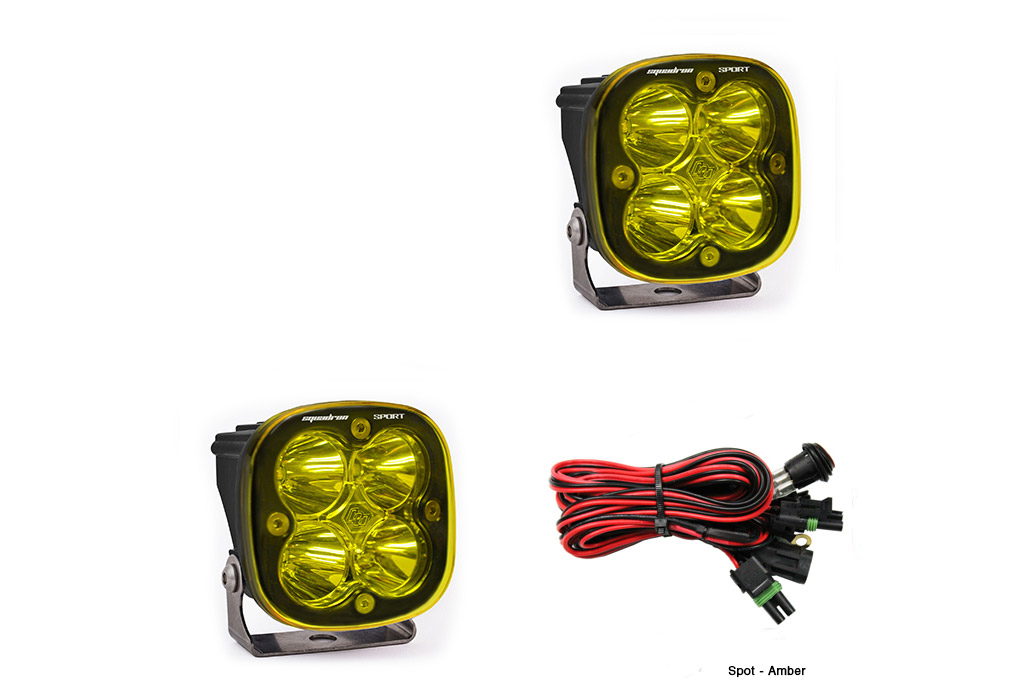

    • Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

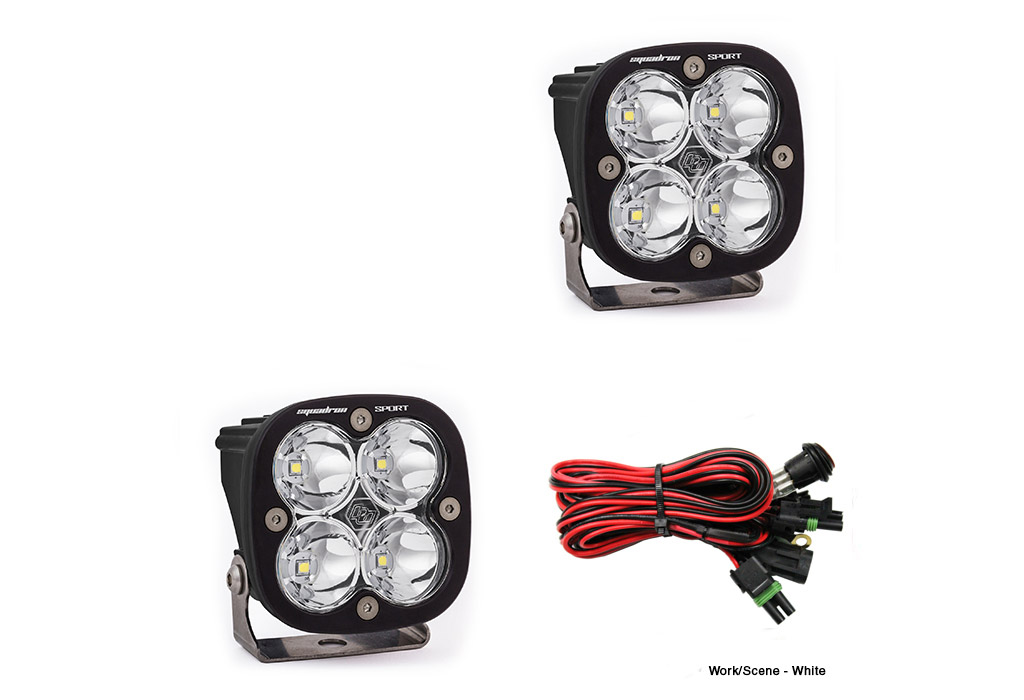

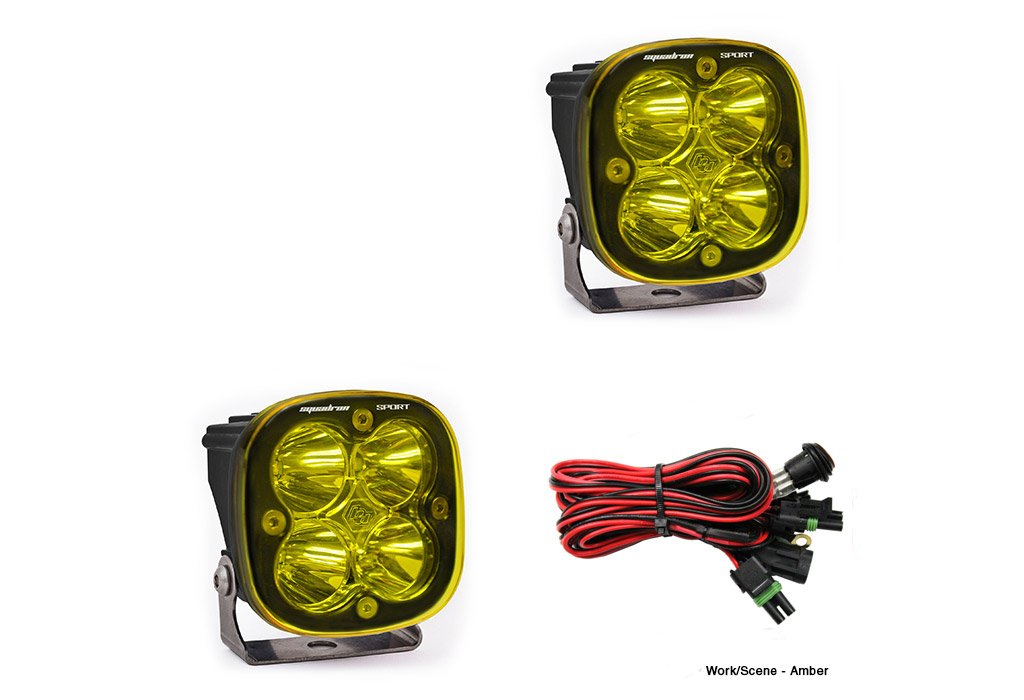

    • Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)


Looking for answers to common questions about us or our products? See our FAQ here.

11 Questions asked on Baja Designs Squadron Sport LED Lights (Pair)

Ask us anything



Q Patrick Garniewicz • 01/12/2021, 5:14:06 PM Do these mount to your front bumpers fog light slots
A 01/14/2021, 11:34:07 AM Yes!
Q Steve Jarman • 01/19/2021, 4:40:27 PM Do these work for the 3x3 cut-out in the rear bumper / strike / 5th gen?
A 01/20/2021, 10:02:27 AM Yes, they do!
Q Matthew Dolen • 03/25/2021, 12:35:17 PM Do these mount into the front bumper fog lights for the 5th gen t4r strike bumper requiring 3x3 fogs offered by you guys? Saw another question related just wanted to clarify before my purchase.
A 04/02/2021, 1:31:55 PM Yes they do.
Q Wyatt • 03/27/2021, 5:09:50 PM Will these fit in the high clearance bumper you sell? The baja lights I bought from tacoma beast did not fit.
A 04/02/2021, 1:17:54 PM They will fit in everything but the Tundra front Strike bumper. You may need to space brackets of the lights up some however.
Q Garrett • 06/11/2021, 6:36:30 PM Which set of lights would you recommend for ditch lights?
A 06/25/2021, 11:53:18 AM Wide cornering.
Q Daysen Fowler • 04/01/2022, 10:41:12 PM When I buy the Baja lights does it come with nuts and bolts to mount everything in place? Or do I need to buy that separately
A 04/04/2022, 8:28:34 AM Yes, they come with mounting hardware!
Q Seth • 08/19/2022, 2:35:03 PM Will these plug and play with the wiring harness for the TRD Pro Rigid Industries foglights? I just installed your Strike bumper on my '19 and am missing the additional visibility those lights provided.
A 08/23/2022, 1:55:15 PM They are not plug-and-play for those lights, no. If you didn't want to modify the body side harness you could make an adapter. Or Baja Designs sells a wiring adapter with their OEM kit for the Taco, but you would likely have to contact them directly to order it.
Q Kurt Jensen • 01/06/2023, 11:23:14 PM Will the supplied wiring harness plug directly into the factory fog light plugs?
A 01/10/2023, 12:51:06 PM They will not plug into the factory plugs no. If you want to run these off the factory circuit, you will need to remove the OEM plugs and splice in the connectors provided with the lights.
Q L Sanchez • 02/02/2023, 10:15:39 AM which pattern do you recommend for the rear bumper / strike / 5th gen on a 4runner?
A 02/03/2023, 1:53:04 PM Work scene.
Q Patrick MacMillan • 04/18/2023, 4:09:40 PM Will the supplied cabling for these reach from the rear strike bumper to the dash on a 5th gen 4Runner?
A 05/01/2023, 12:27:17 PM It will not, you will need to provide some wire for that.
Q Jonathan Aucoin • 05/25/2023, 11:50:10 AM Which baja lights would work in your front and rear bumper for a 2014 tundra? I was looking at the baja fog lights XL Sport LED Aux. light pod. The specs are 4.4 inches. Will this work?
A 05/25/2023, 2:33:47 PM For the front bumper, yes the XL's will work. For the rear bumper, you'd want their standard 3x3 Squadron.
