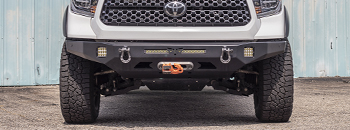

Tundra Front Winch Bumper | Strike | 3rd Gen (14-21)
★★★★★
5.00/5 Stars. (4 Reviews)
$1,749.00
Code: VTU3FS
Weight: 110 (steel) | 70 (aluminum) (lbs)
- CNC cut and formed from .188" steel or .250" alumuinum.

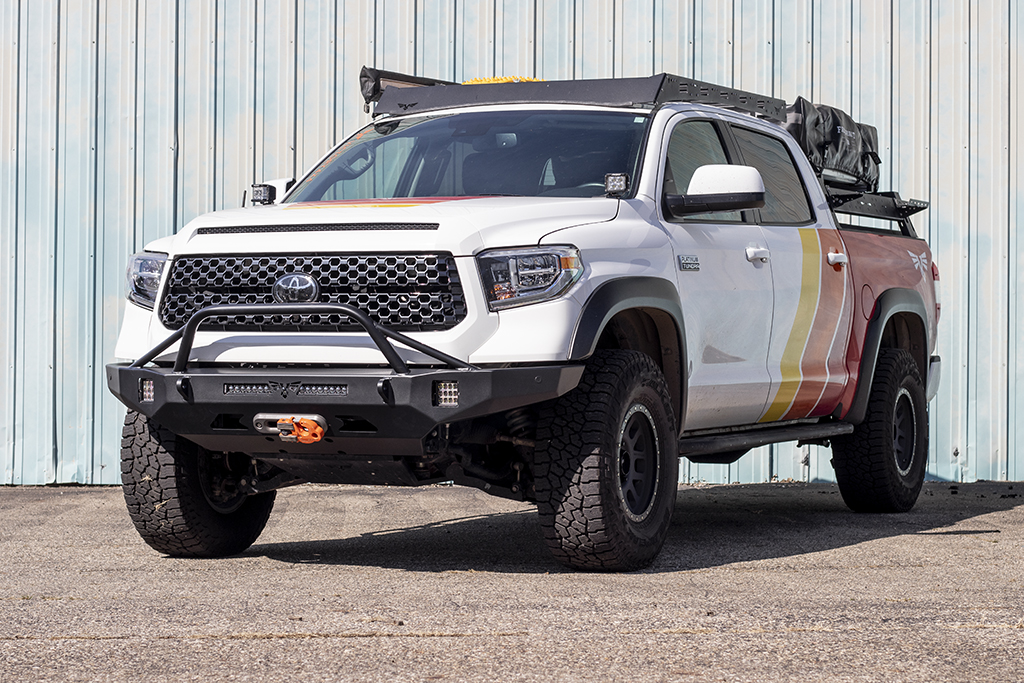

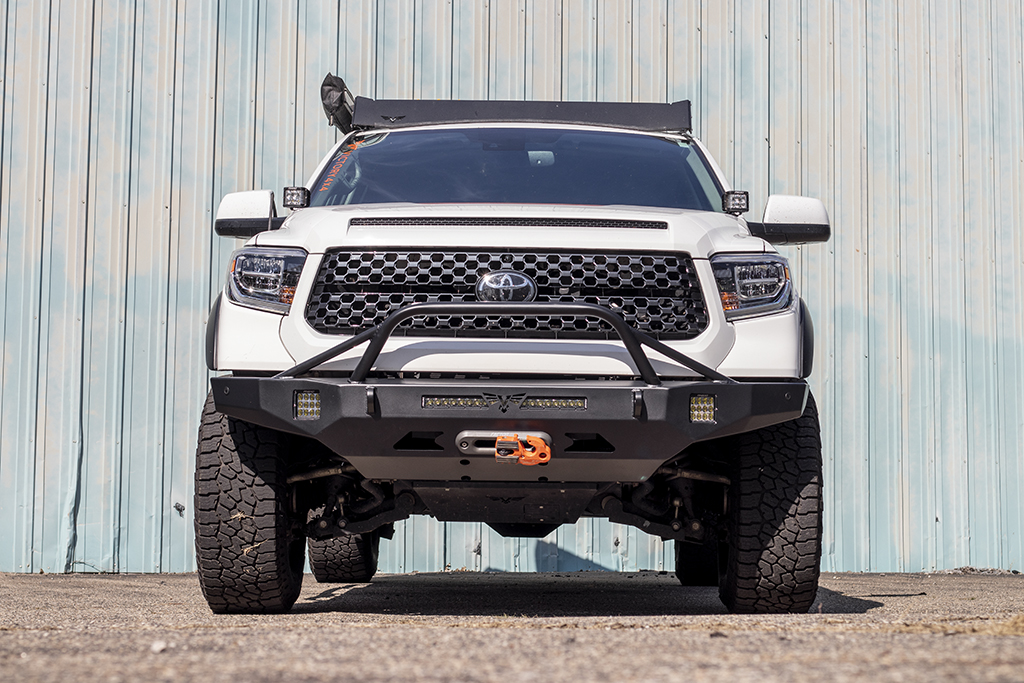

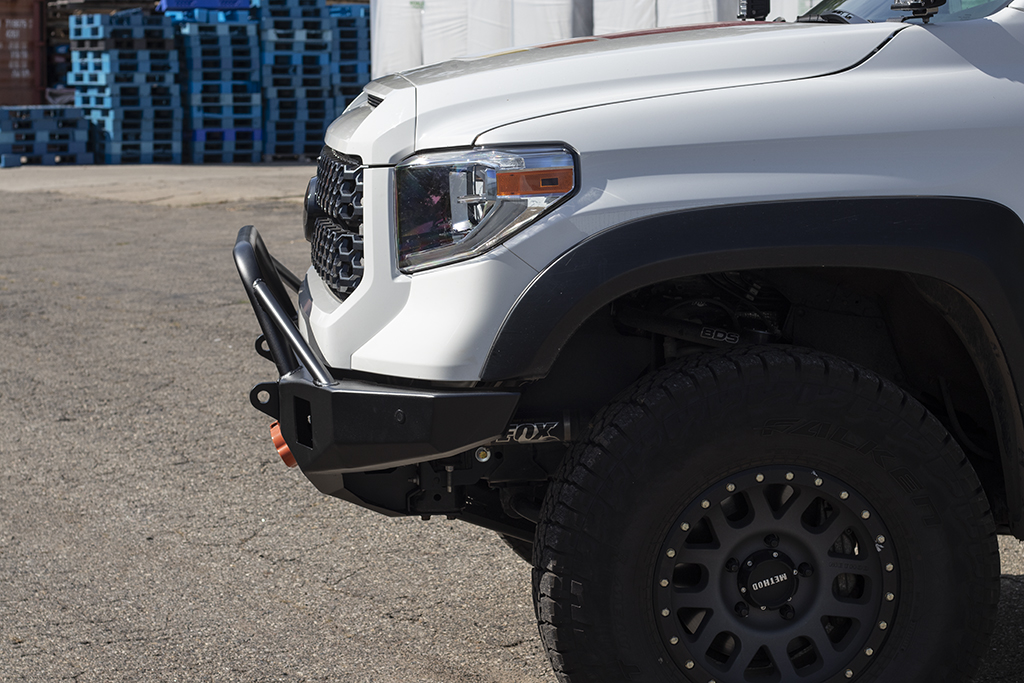

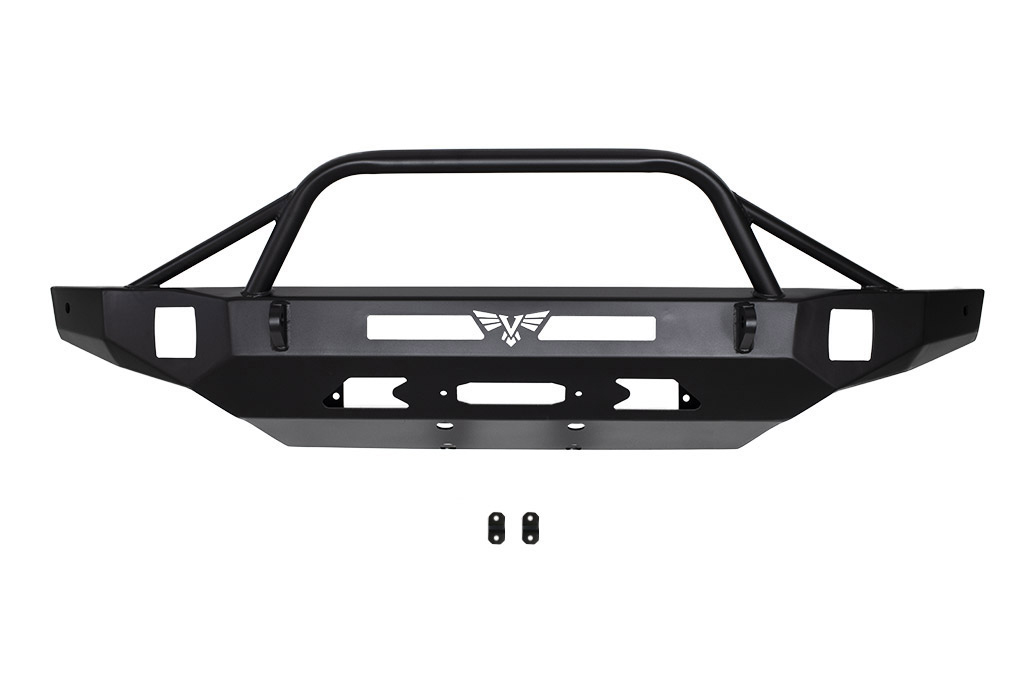

- Tubework option includes 1.75" x .120" and 1.25" x .120" tubework for added grill protection.
- Will fit non-integrated solenoid winches up to 12,000lbs

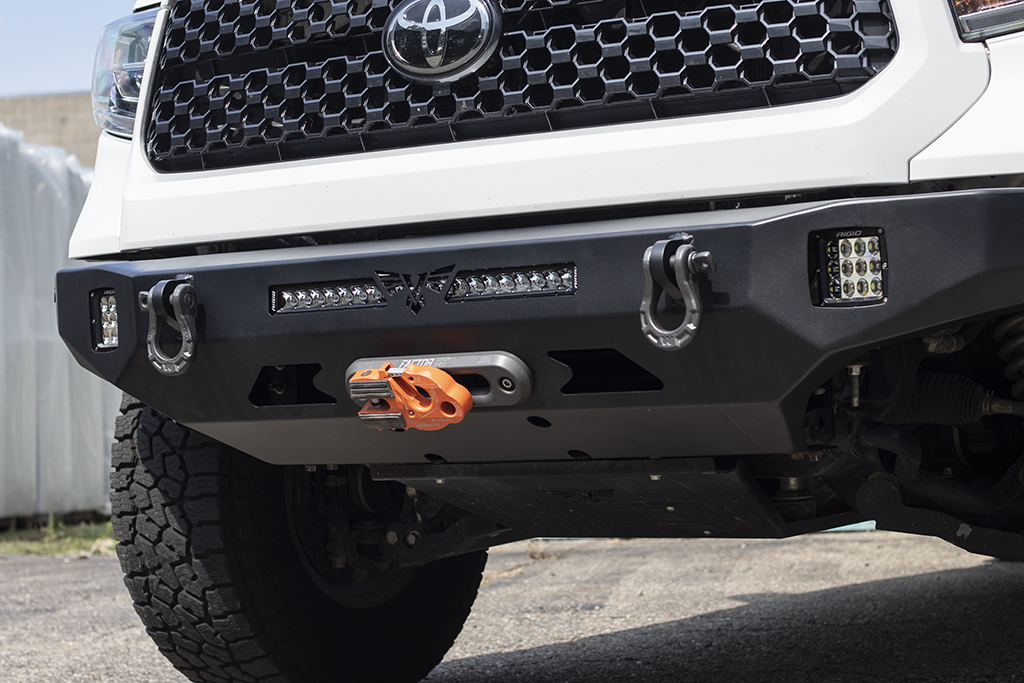

- Light mounts designed for XL Cube lights. Rigid XL, Baja Designs XL, Etc.
- Built in provisions for a 20" single row light bar (22" max mounting width)
- Not compatible with Onx6 20" Light Bar.

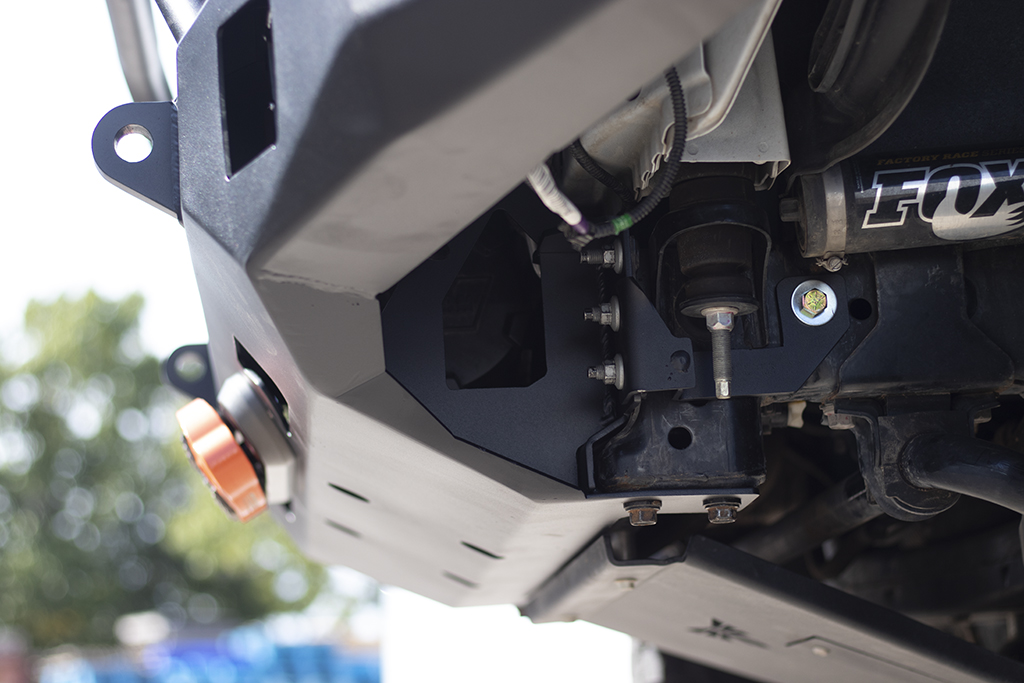

- Includes mounting locations for proximity sensors.
- Bolt-on Installation.
- Hardware Included.
- Proudly designed and made in the USA.
- Tubework version compatibility with Toyota Safety Sense equipped vehicles not guaranteed.
- The sensor may be located behind, or it's vision prohibited by the tubework based on grille model.

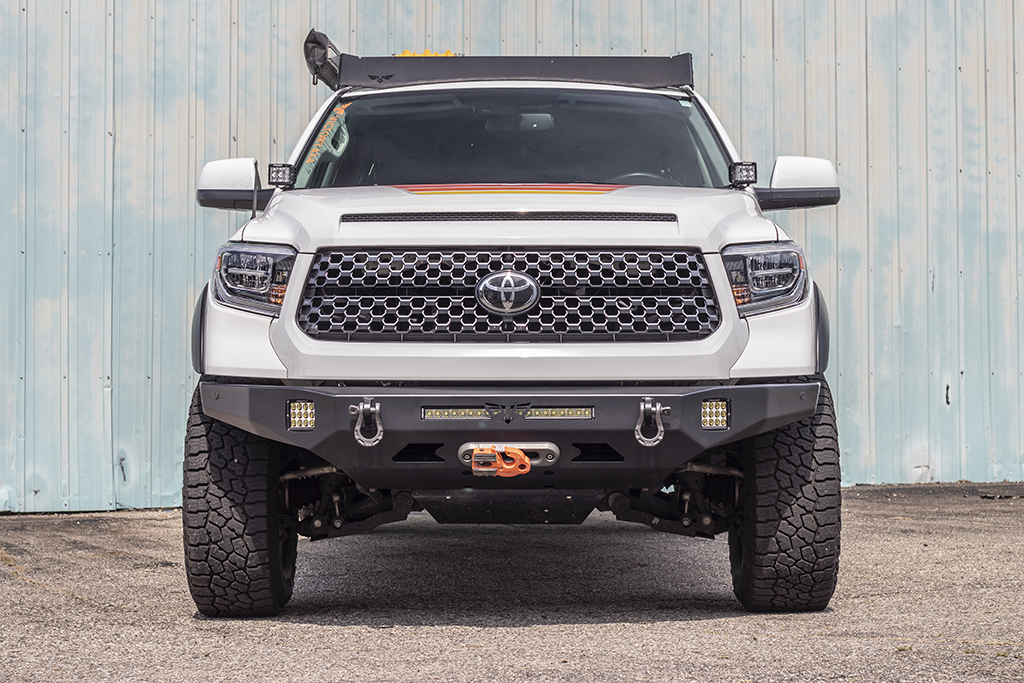

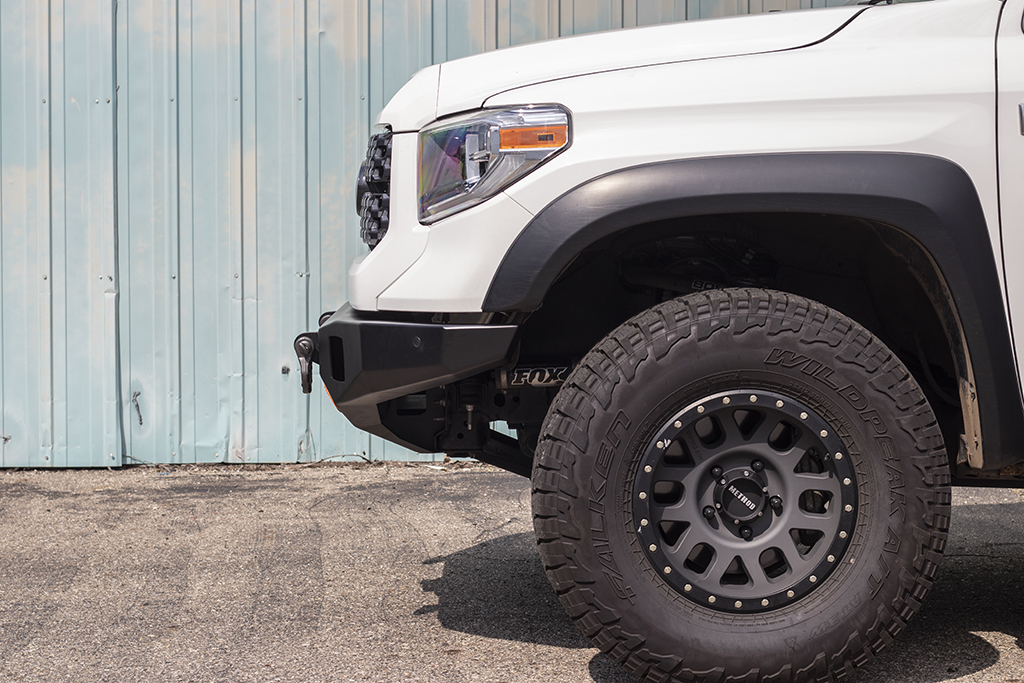

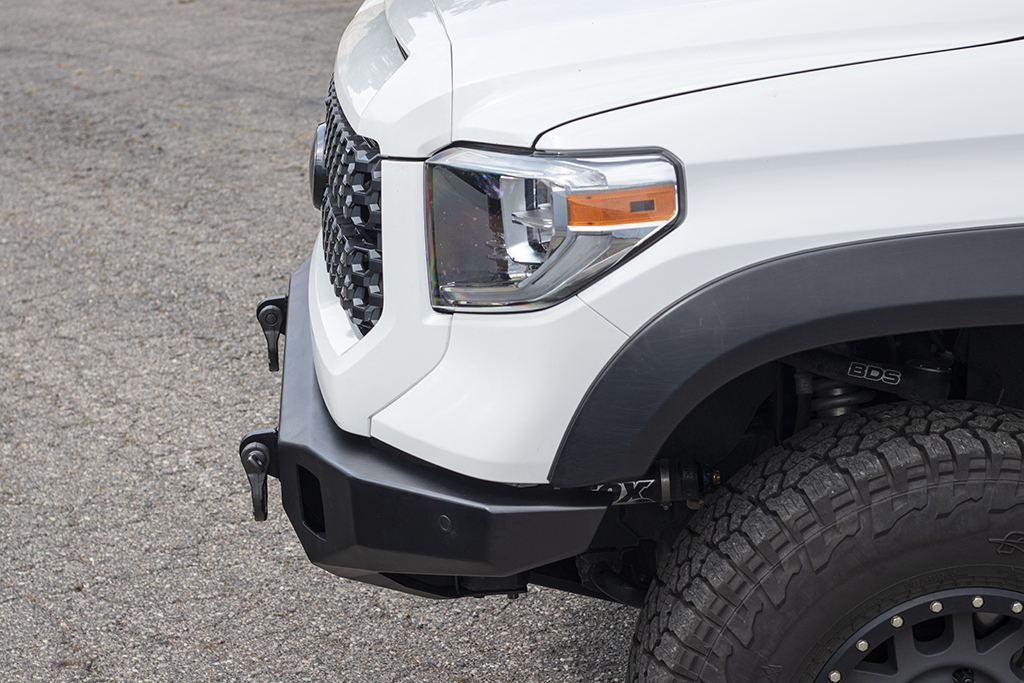

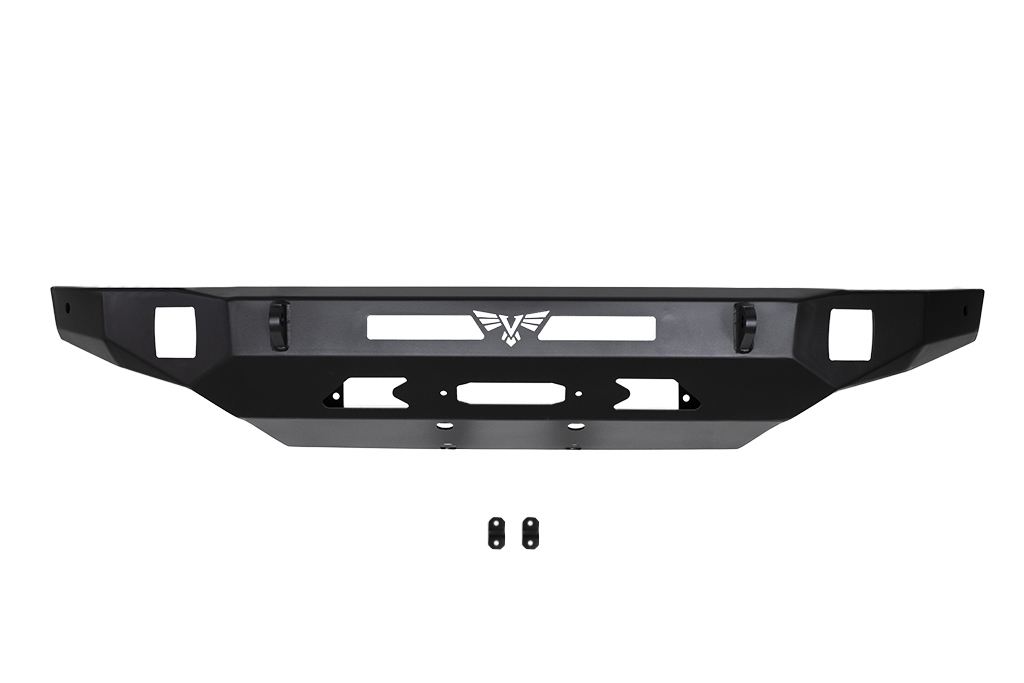

Victory 4x4 Tundra Strike Front Winch Bumper | 3rd Gen (2014-21)
When you need extra tire clearance, maximum protection, plus recovery options for your Toyota Tundra; our Strike Series front bumper is a perfect choice. This made in the USA bumper features an integrated 20" lightbar mount, 3/4" recovery tabs, plus provisions for many industry-standard winches. Available tubework option includes a bull bar for extra front end protection. The bumper is available in a 2 stage satin textured black powdercoat over durable zinc primer finish, or in bare metal
Park Sensor Retainer - Toyota (89348-0C011)
Listed weights are with no tubing; single hoops and prerunner tube work add roughly 10 lbs in steel, 5lbs in aluminum; full grill and light protection tubing adds 30 lbs in steel, 15lbs in aluminum. (Not all tubing options are available on all bumpers.)
Ships freight only! Rate calculated at checkout. Please contact us with any questions: https://www.victory4x4.com/CTUS.html
Looking for answers to common questions about us or our products? See our FAQ here.
13 Questions asked on Tundra Front Winch Bumper | Strike | 3rd Gen (14-21)
•
Ask us anything
Q
Ben • 04/26/2020, 6:53:19 PM
What is the weight difference between the steel and aluminum with out the tube?
A
04/27/2020, 3:26:23 PM
The aluminium bumper is 55-60 lbs without tube. The Steel bumper is 100-105 without tube.
Q
Marc Hernando • 07/22/2020, 6:05:56 PM
Can I use the existing TRD skid plate with this item?
A
08/05/2020, 11:01:24 AM
We have not tested this, but looking at photos it will probably work with some spacers.
Q
thomas • 08/02/2020, 3:09:51 PM
will I need to install hd coil springs for the added weight of steel bumper?
A
08/05/2020, 11:51:45 AM
It honestly depends on your mods and individual truck. We have the standard 600lb fox coil springs in our Tundra.
Q
Dion • 09/30/2020, 7:48:46 PM
What does the TUNDRA FRONT WINCH BUMPER | STRIKE | 3RD GEN (14+) weigh in ALUMINUM vs steel ? . With tube work ???
A
10/01/2020, 1:40:01 PM
The aluminum bumper is 55-60 lbs without tube. The Steel bumper is 100-105 without tube. Add 5 lbs or so for the tube version.
Q
Colin • 01/15/2021, 3:35:44 PM
What is the maximum width and length lightbar I can mount to the center?
Will a lightbar that is 22"L x 1.8" H fit ?
A
01/15/2021, 6:07:12 PM
22" max mounting width between the tabs. Sounds like you are good.
Q
Michael • 03/04/2021, 4:22:01 PM
Are there pdf installation instructions included with this bumper, or are there printed instructions included in the packaging box?
A
03/05/2021, 10:08:38 AM
There are currently only video instructions for this product but a pdf install document will be added to the site soon!
Q
Mike • 03/06/2021, 10:50:53 PM
It looks like this bumper has options for fog lights. Will the Baja Designs Squadron pro fit there?
A
03/08/2021, 1:18:58 PM
They are designed for Rigid XL, Baja Designs XL, Etc.
Q
Bjon Pankratz • 03/30/2021, 2:51:16 PM
Will the smittybuilt x20 10k work with this bumper?
A
04/02/2021, 1:17:54 PM
Yes
Q
Connor • 07/27/2021, 9:57:33 AM
Is it possible for the center portion of the bumper to come pre-drilled for mounting Baja Designs LP Series lights?
A
08/12/2021, 3:19:21 PM
Our products are sold as designed, but that would be easy enough to do when you receive it.
Q
Steve Bellport • 09/09/2021, 9:59:18 AM
Will this winch fit this bumper? Superwinch 1511201 Tiger Shark 12V Winch with Aluminum Hawse and Synthetic Rope - 11500 lb. Load Capacity
A
09/23/2021, 1:26:44 PM
Yes
Q
Camron Reid • 12/04/2021, 7:48:03 PM
I have a 2021 platinum, is it know if the hoop will work with TSS?
A
12/06/2021, 10:50:29 AM
We have not tested with the 2021 platinum specifically to guarantee it will work.
Q
Chris Nolan • 02/27/2022, 8:40:23 AM
Is there a winch hole cover in case a winch isn't needed?
A
02/28/2022, 9:18:57 AM
Yes, it does come with a winch block off plate.
Q
Erick • 04/12/2022, 6:23:44 PM
I had to run 1/2" spacers on my OEM bumper to get my 35" tires on 17" Icon Alloy wheels. to clear. Will this bumper allow me to ditch the spacers and still get tire clearance and a better approach angle?
A
04/26/2022, 11:38:10 AM
Yes it will give you more clearance. We have run 35"s with the bumper with no issues.
4
0
0
0
0
Dave (Wisconsin) | October 16th, 2021
2021 Tundra, Bumper fits excellent with the exception of the brackets that attach to the frame, like James said, they were a little too short so I had to modify them with a cutting wheel. Bumper looks great and is very tough. I will be buying another one soon for my other Tundra.
Note From Victory 4x4: Thanks for the review, the engineering team has since solved the bracket issue. Sorry for the hassle!
James (California) | July 23rd, 2021
Strike Bumper fits perfect with the exception of the two brackets that tie the bumper to the frame. Seem to be cut a little short in length. Made it work though. Overall satisfied with quality and fynction of the bumper.
Jackson Sweet (Saltspring Island, BC) | October 23rd, 2020
This bumper is by far the best out there. Fits seamlessly on my 2018 Tundra (1794) and is sturdy as hell. Parking sensors fit & function perfectly, TSS/PCS (centre of grille) works with the full height bull bar, and the thing looks mean. Buy it now.
HOKY | July 29th, 2020
WHAT ARE THE DIMENSIONS.
Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions (if available) as well.
