Tundra Dash Accessory Mount | (14-21)
★★★★★
5/5 Stars. (1 Review)
$139.00
Code: VTUDAM
Weight: (lbs)
Free Shipping!

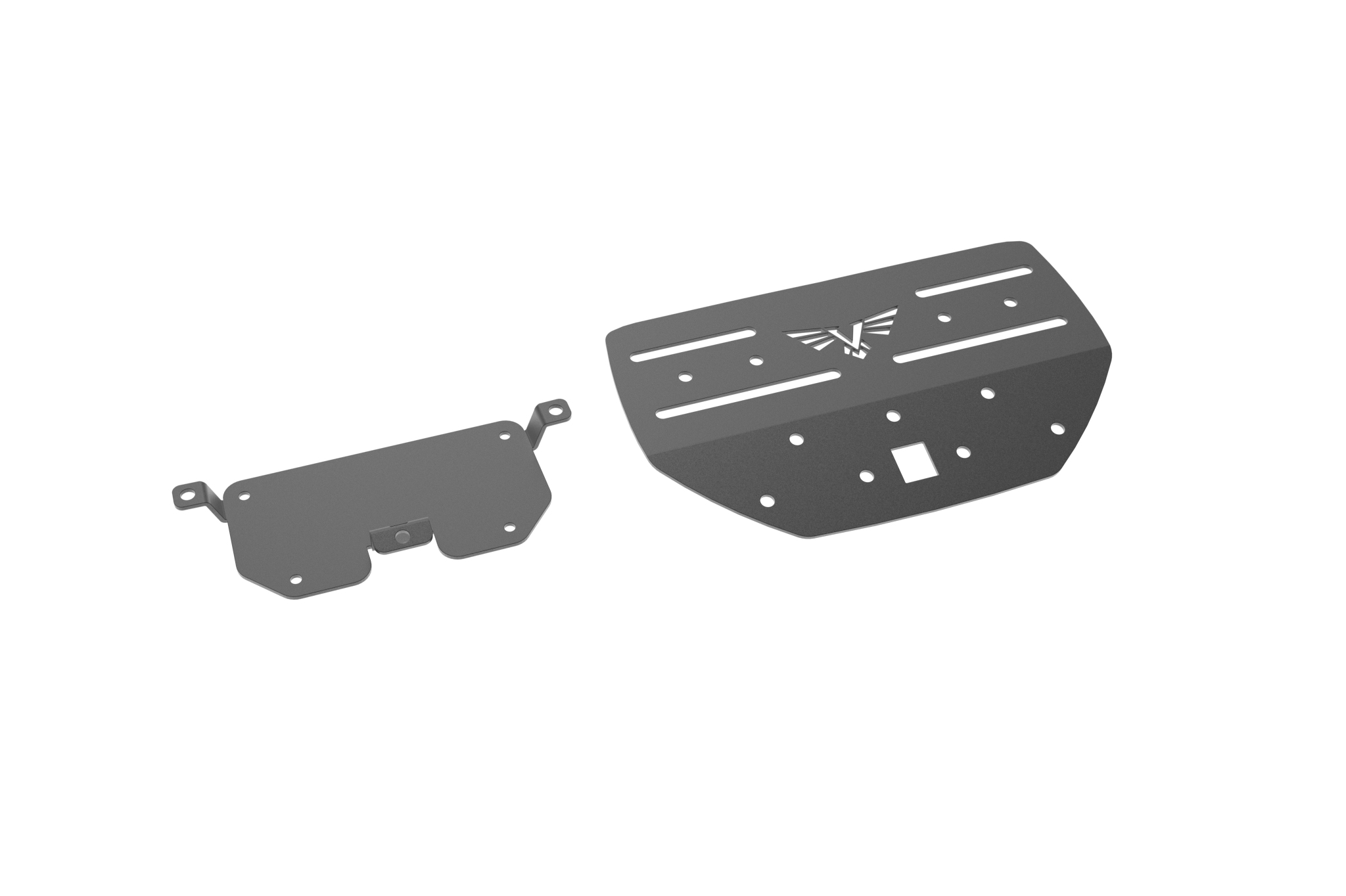

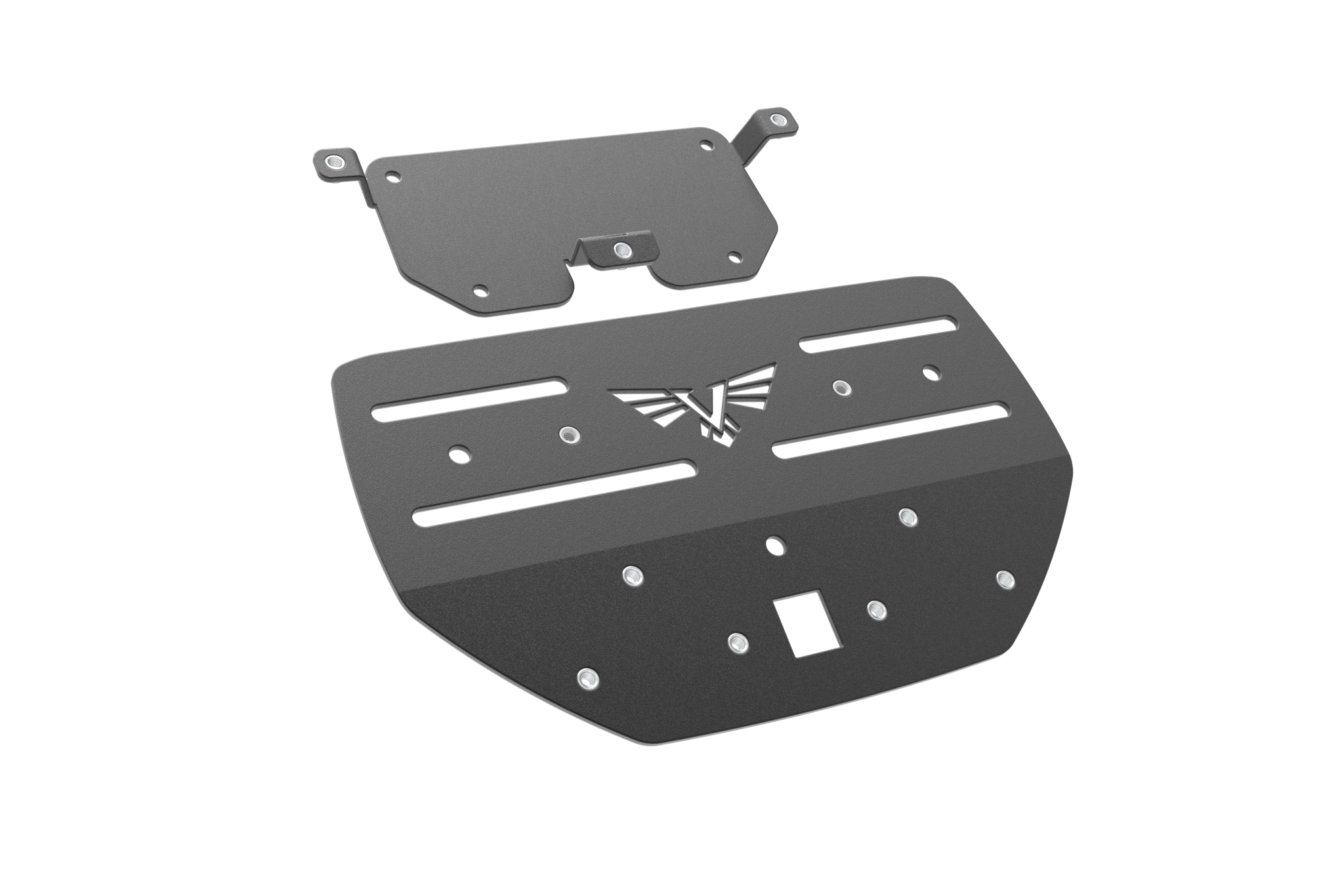

- CNC cut and formed from 1/8" steel.
- Designed to use RAM® Diamond Ball Bases or RAM® Tough-Ball™ with 1/4"-20 x .50" Threaded Studs in various holes and slots on the top and front.
- Pre-terminated remote dual USB port included (three-foot lead for flexibility in connections to either a 12v adapter or hardwire under the dash.)
- Includes mounting hardware.
- Some drilling required.
- Proudly designed and made in the USA.

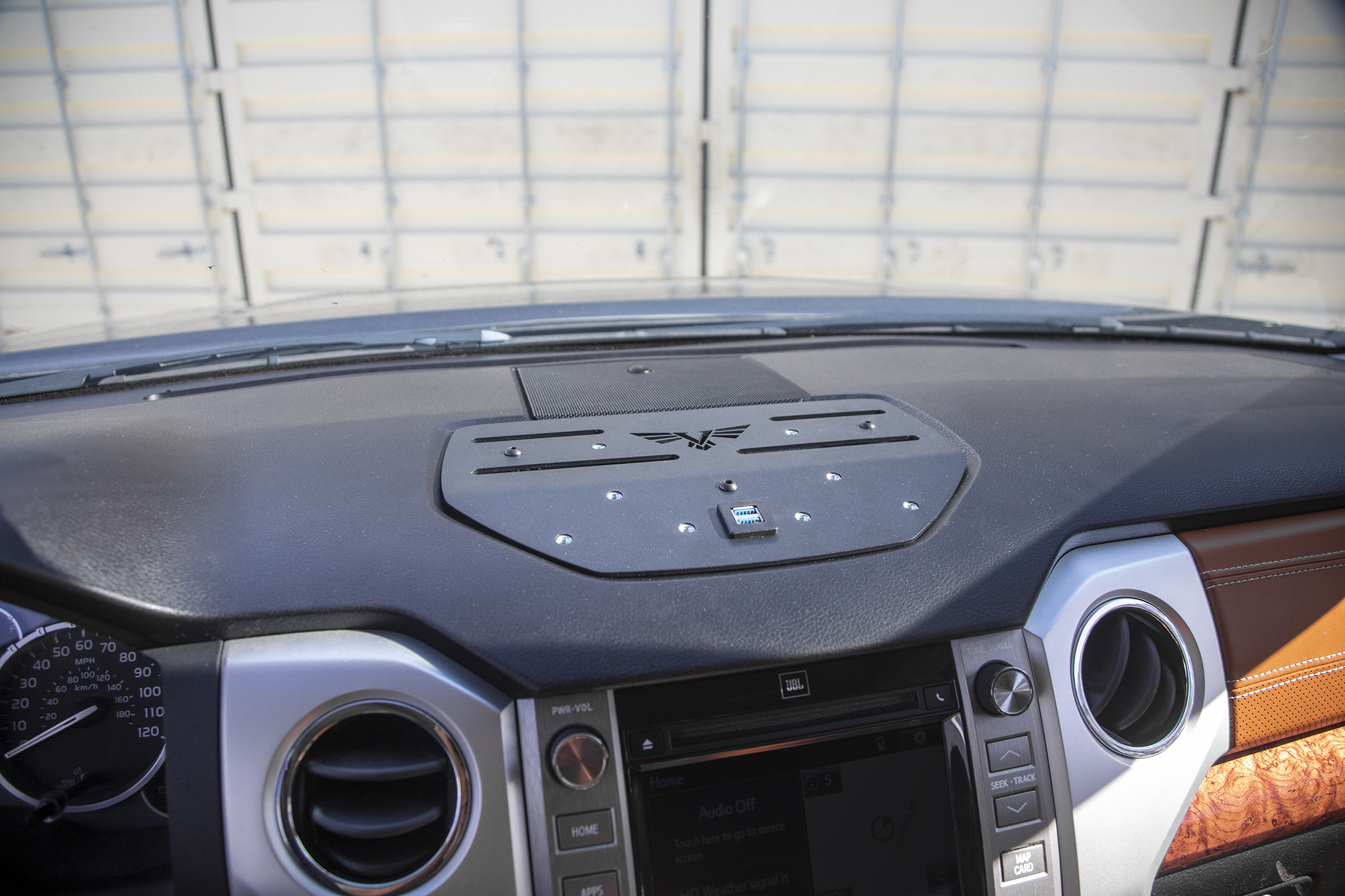

Our DAM mount is designed to be a flexible solution to mounting navigation and communications gear onto the dash of your Tundra.
Looking for answers to common questions about us or our products? See our FAQ here.
5 Questions asked on Tundra Dash Accessory Mount | (14-21)
•
Ask us anything
Q
Diggs • 10/26/2022, 1:53:29 PM
On a scale of—Ain’t happenin’ to We might think about it.. maybe.. — Any chance of offering this in aluminum ?
A
10/27/2022, 10:07:38 AM
No plans at this time.
Q
Marrico • 01/09/2023, 1:30:42 PM
Good afternoon, will this dash mount for 2016 Tundra accommodate a Bearcat 980 SSB CB Radio (deminsions 15.2 x 8.6 x 3.7 inches) and cellphone on drivers side?
A
01/10/2023, 12:51:06 PM
Bearcat lists the specs for this radio at 7.25" wide. At that width, it and a cellphone mount should fit well.
Q
Ron • 08/01/2023, 9:25:55 AM
Is there any sort of backer plate for under the dash that comes with this mount?
A
08/04/2023, 11:32:40 AM

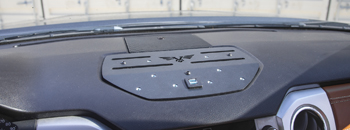

Check out this installation video which will outline everything included.
https://youtu.be/Yj1EZODj-ls
Q
Ron • 08/31/2023, 5:07:13 PM
Am I using something incorrectly or ordering the wrong RAM product to use with the slots? I expected the RAM T-Slot to work with the slots on your dash mount plate but I have to remove the plate to install it, I cannot get the T through the slot provided. Is there another product that I should be trying to utilize?
A
12/01/2023, 8:44:49 AM
The slots in the panel are primarily for larger things that have brackets, for example mounting an entire midland or CB up there, or had something that could be permanently fixed to the panel using nuts and bolts. You would use the stud on the RAM balls in the pre-installed pem nuts on the panel or install the t-nut from the bottom of the slot.
Q
Alex • 01/18/2025, 10:41:59 PM
What Ram product do you use for a base on this dash mount?
A
01/21/2025, 4:51:24 PM
Any of the 1/4-20 stud style mounts will work or any that use a similar sized bolt/nut combo.
0
0
0
0
1

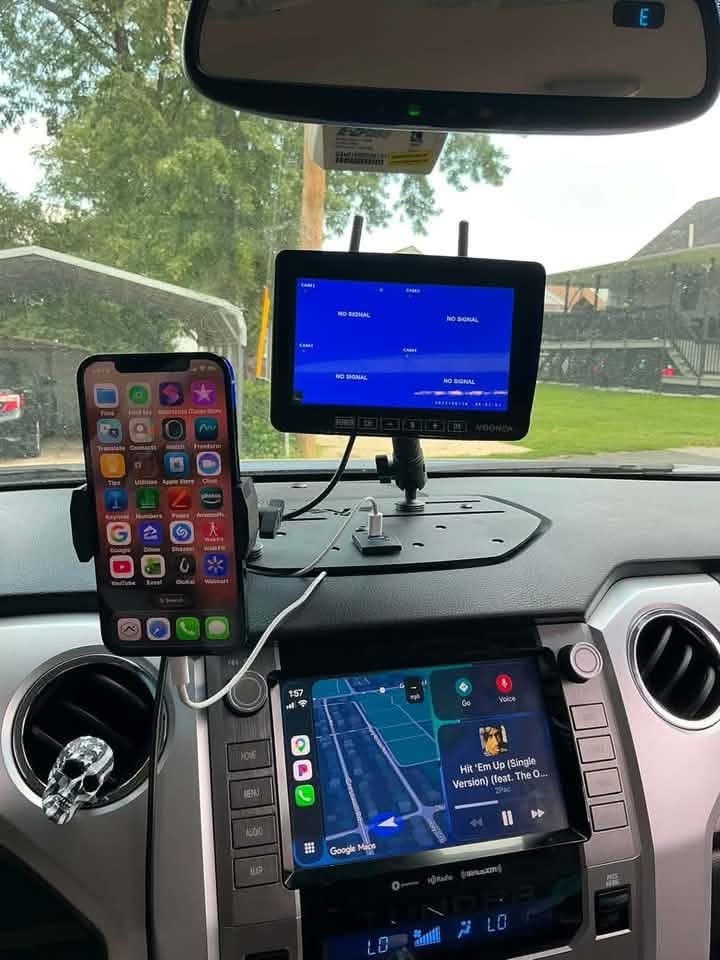

Phil Teuscher (SoCal) | February 23rd, 2023
Installation was not simple… drilling into my dash was a concern. The 3/4 hole turned into a bigger hole to fit the connector properly. The finished product is very nice and the reason I purchased this.
Note From Victory 4x4: Thanks for the feedback, Phil. Glad you like the finished product.
Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions (if available) as well.
