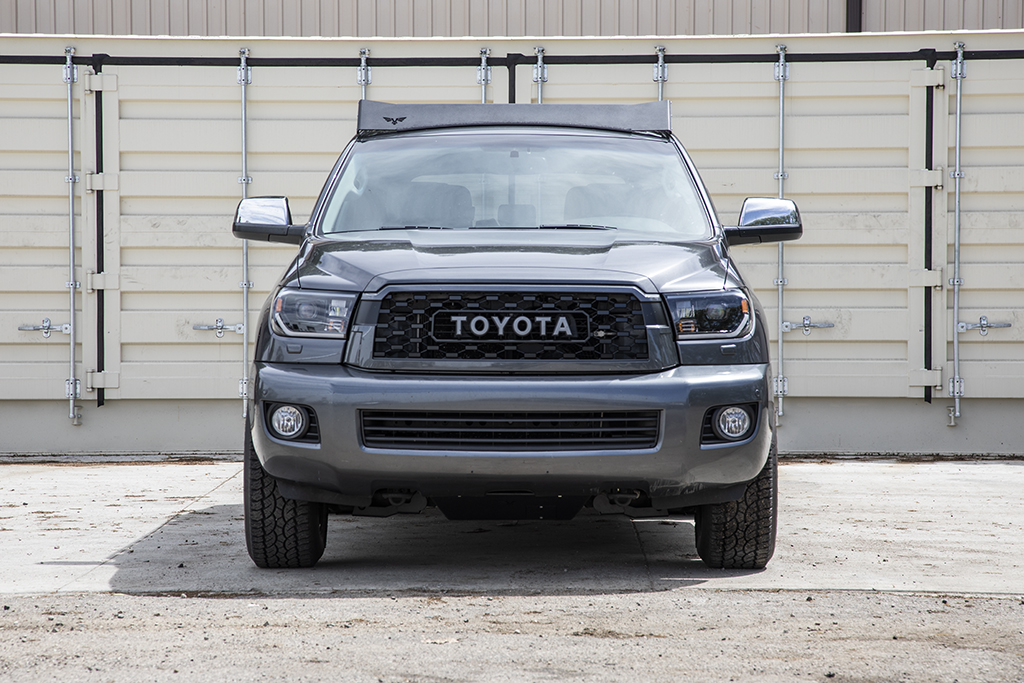

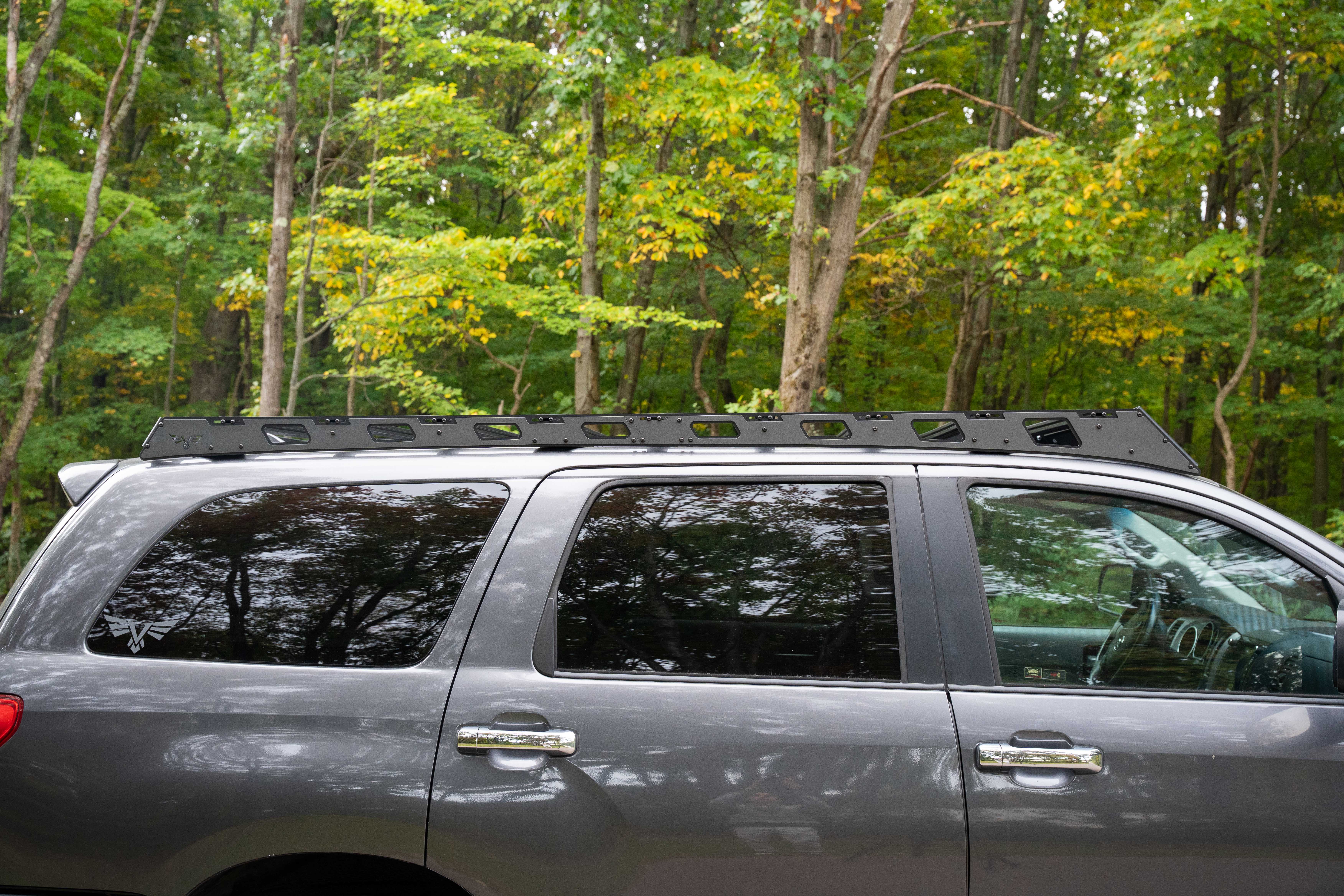

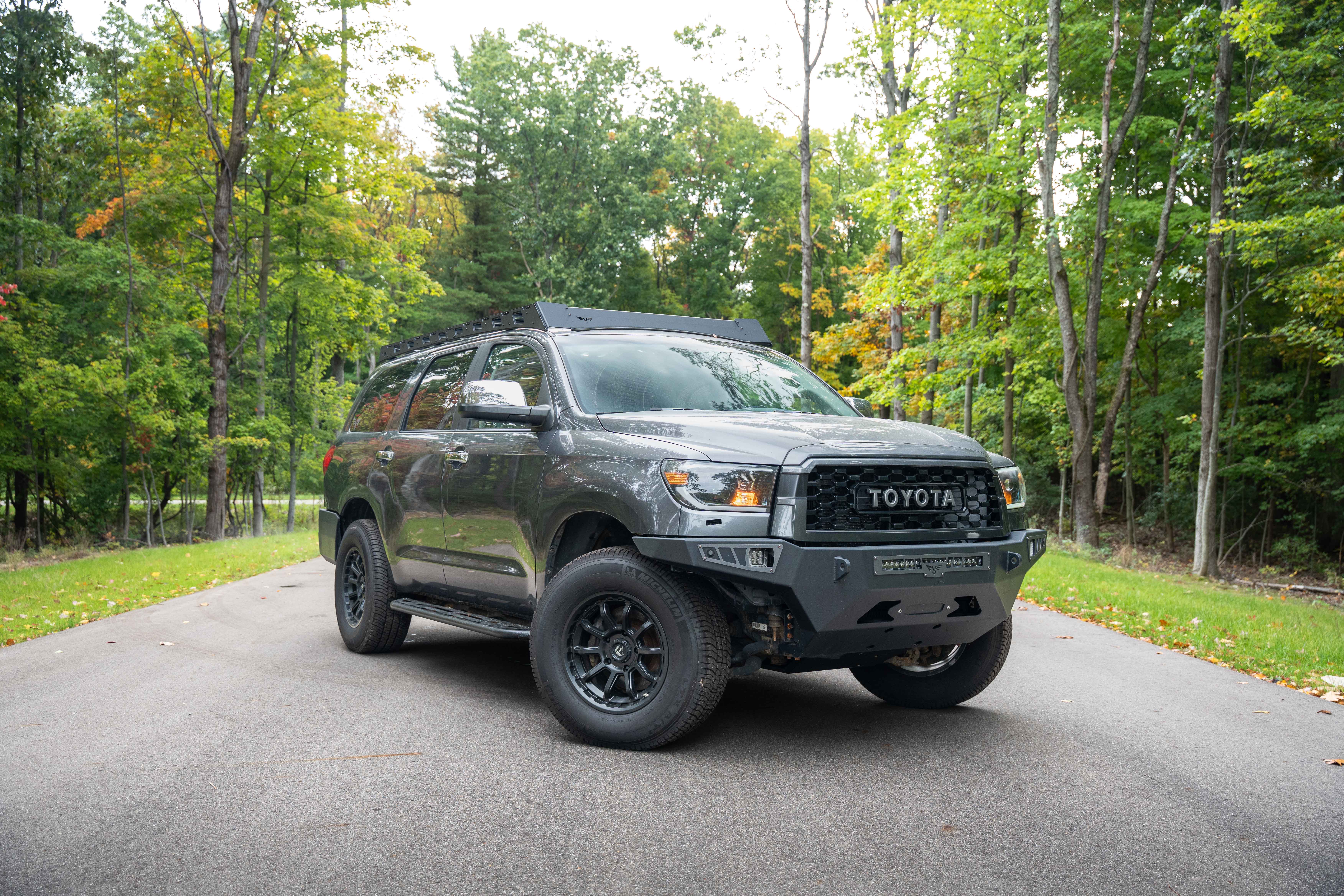

Sequoia Roof Rack | 1st & 2nd Gen (01-22)

★★★★★ ★★★★★ 5/5 Stars. (1 Review)
  • Sequoia Roof Rack | 1st & 2nd Gen (01-22)
  • Sequoia Roof Rack | 1st & 2nd Gen (01-22)
  • Sequoia Roof Rack | 1st & 2nd Gen (01-22)
  • Sequoia Roof Rack | 1st & 2nd Gen (01-22)
  • Sequoia Roof Rack | 1st & 2nd Gen (01-22)
  • Sequoia Roof Rack | 1st & 2nd Gen (01-22)
  • Sequoia Roof Rack | 1st & 2nd Gen (01-22)
  • Sequoia Roof Rack | 1st & 2nd Gen (01-22)




Weight: 70 (lbs)

Free Shipping!

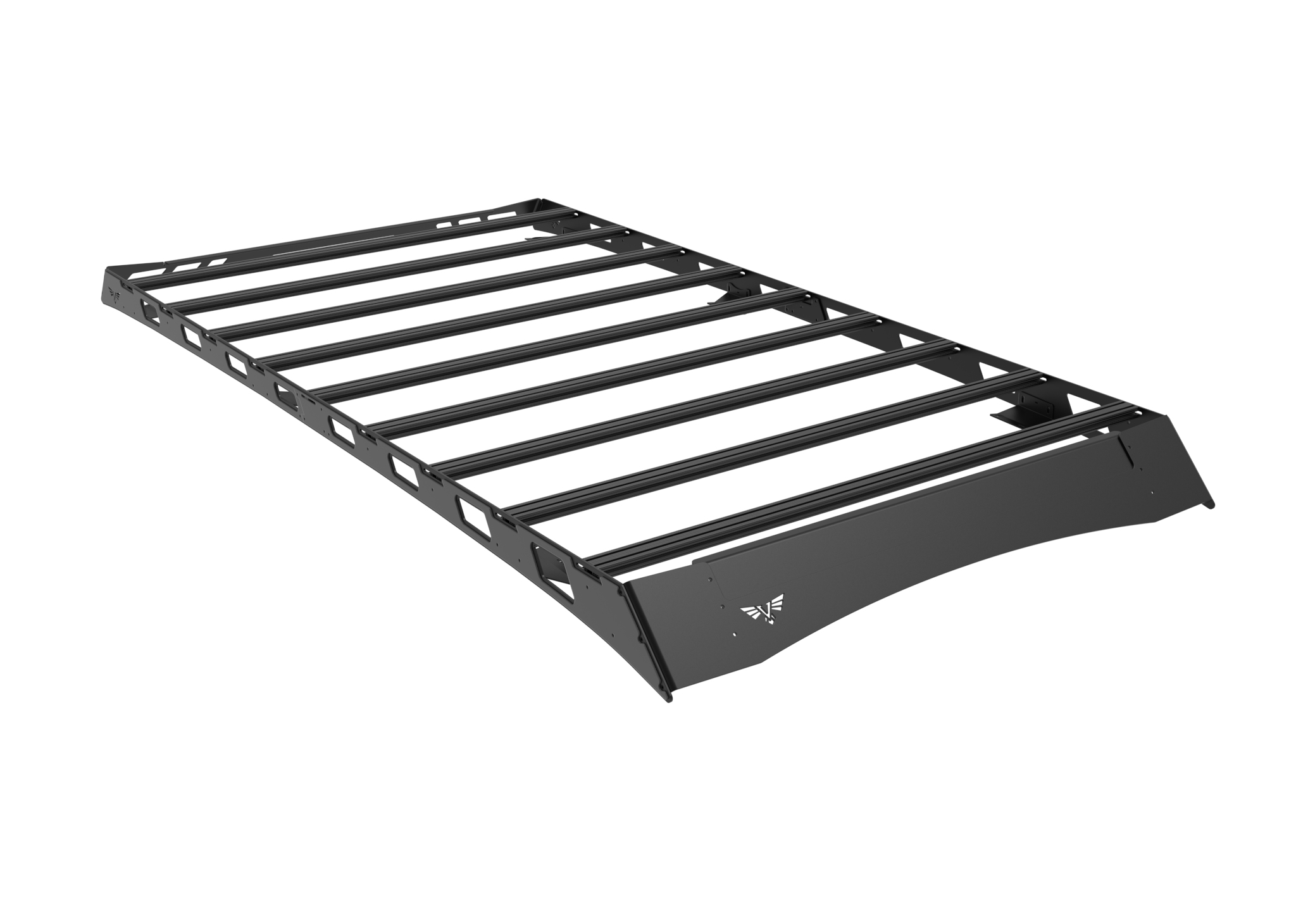

      This roof rack system allows for mounting almost anything, freeing up valuable cargo space for other trip essentials. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.

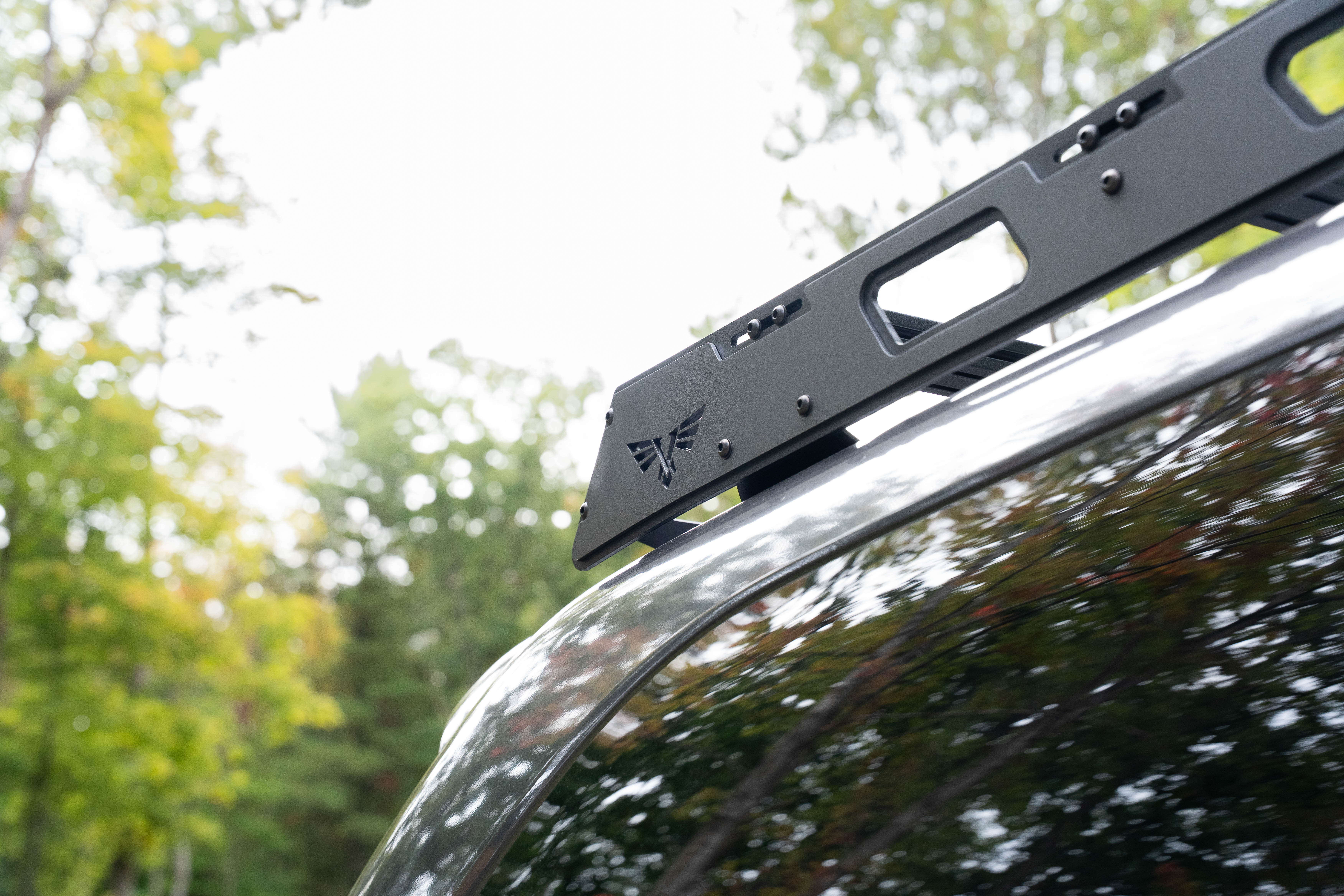

    • CNC cut and formed from 3/16" aluminum (steel mounting brackets) with extruded aluminum rails
    • Easy bolt together installation
    • No drilling required

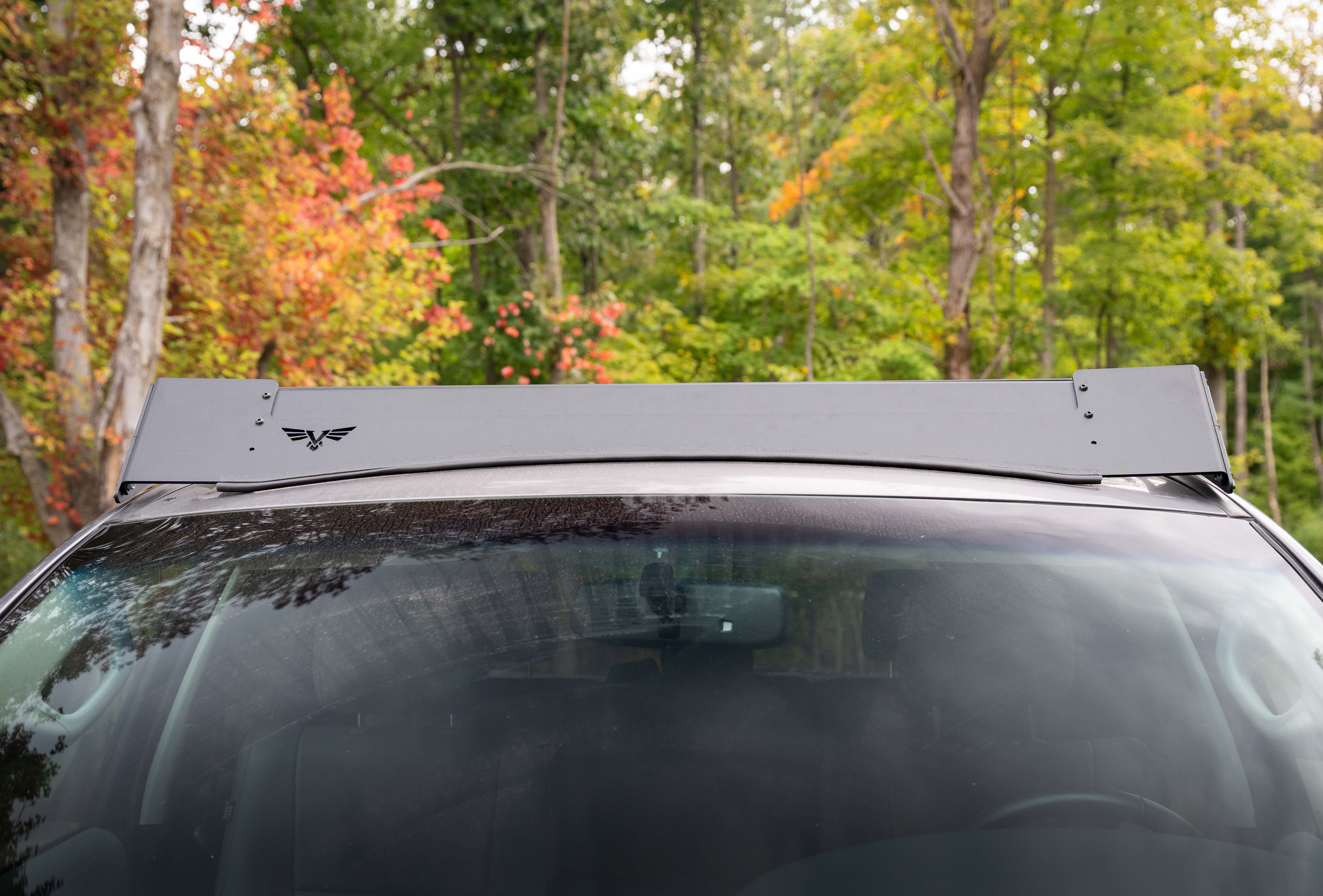

    • Available with or without 40" lightbar cutout
      • Lightbar cutout version includes light bar mounting brackets
      • Cutout fairing designed for 41.25" max lens housing width single row LED light bar. Up to 43.5" (mounting stud width) bar will fit with our mounts, but trimming of the fairing will be required

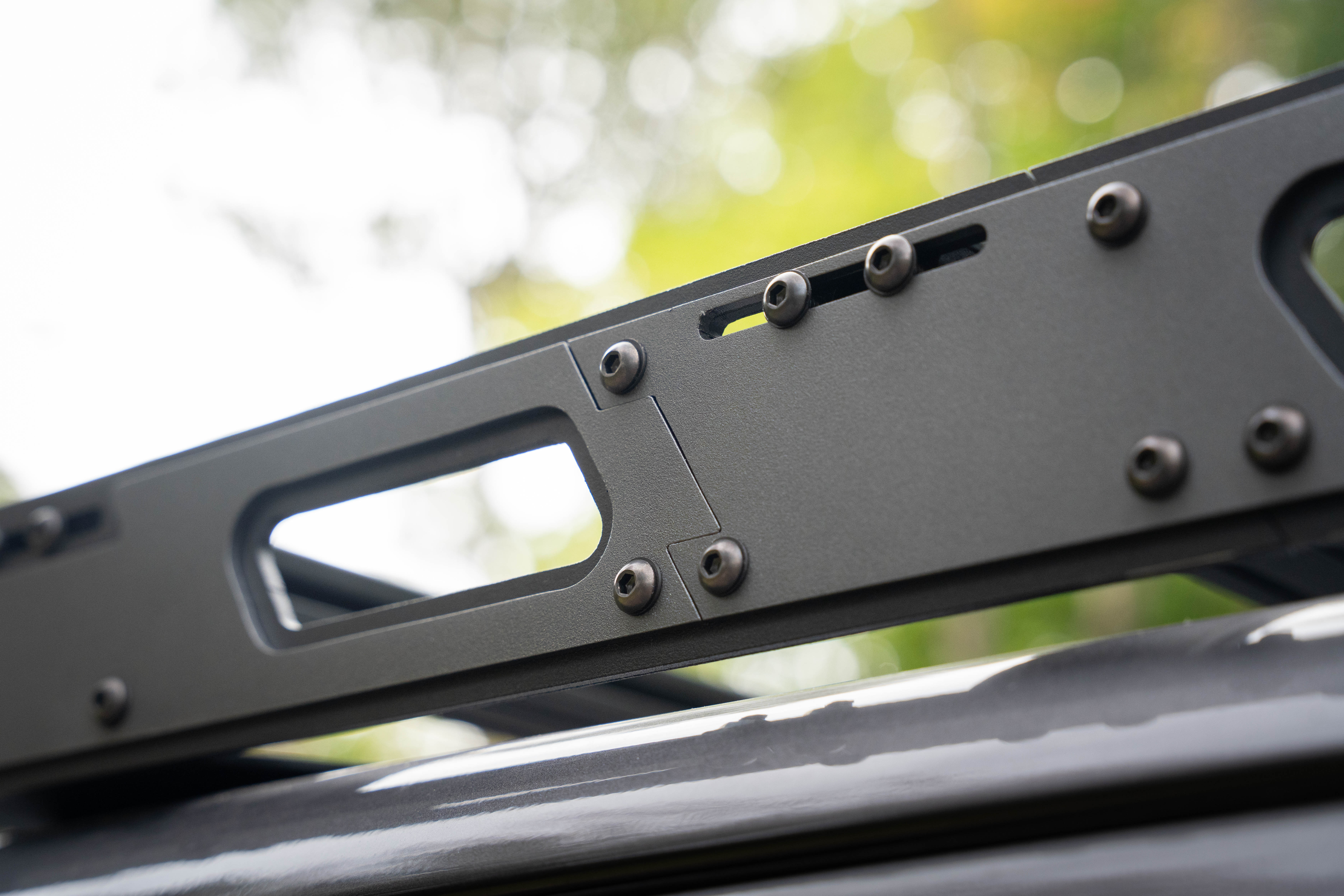

    • Milled T-nut access points
    • Sunroof tilt and sliding function works with racks

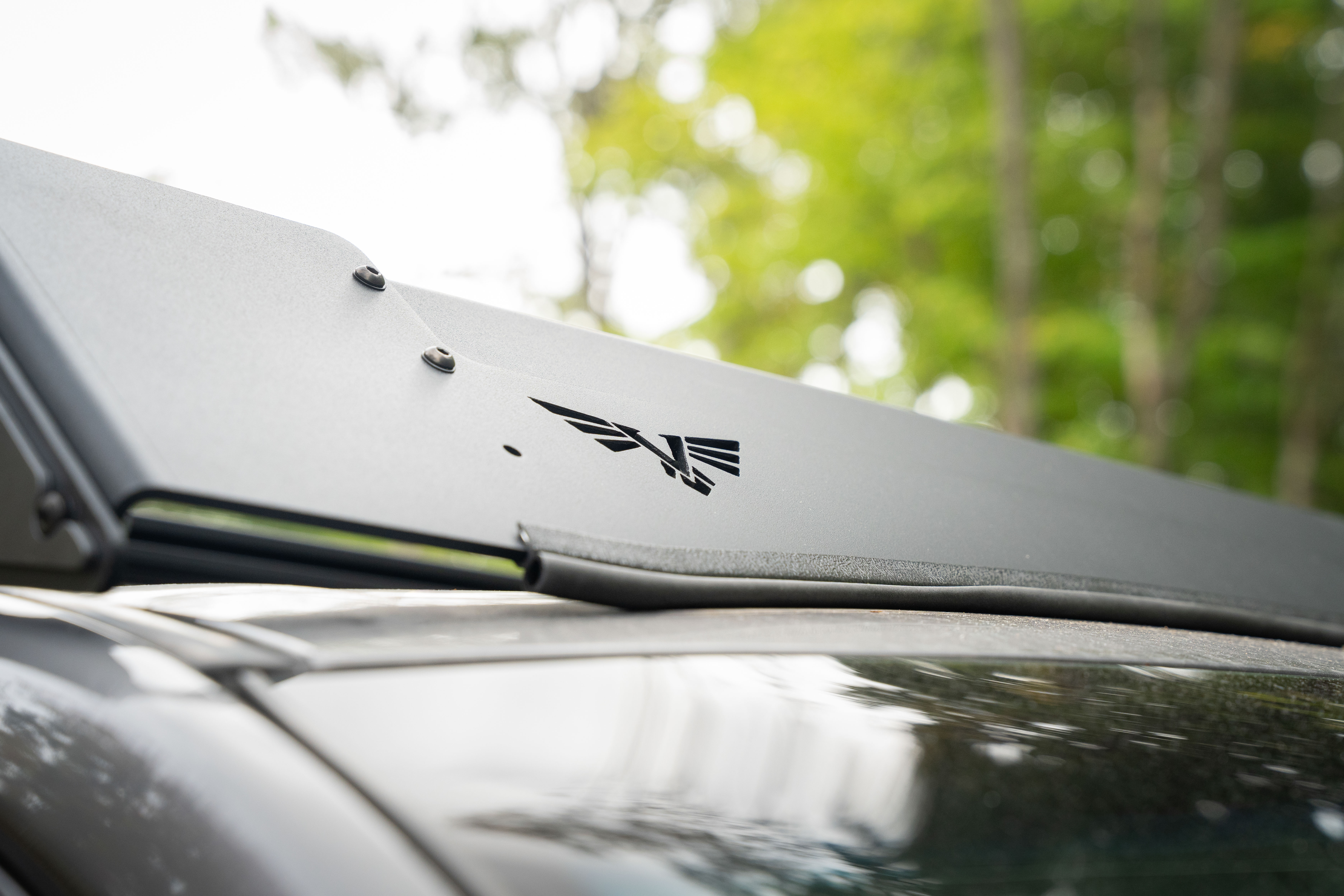

    • Fairing Edge Trim Included
    • Powdercoated
    • Hardware Included
      • Black stainless hardware available, see related products
    • Made in the USA
    • Free shipping!

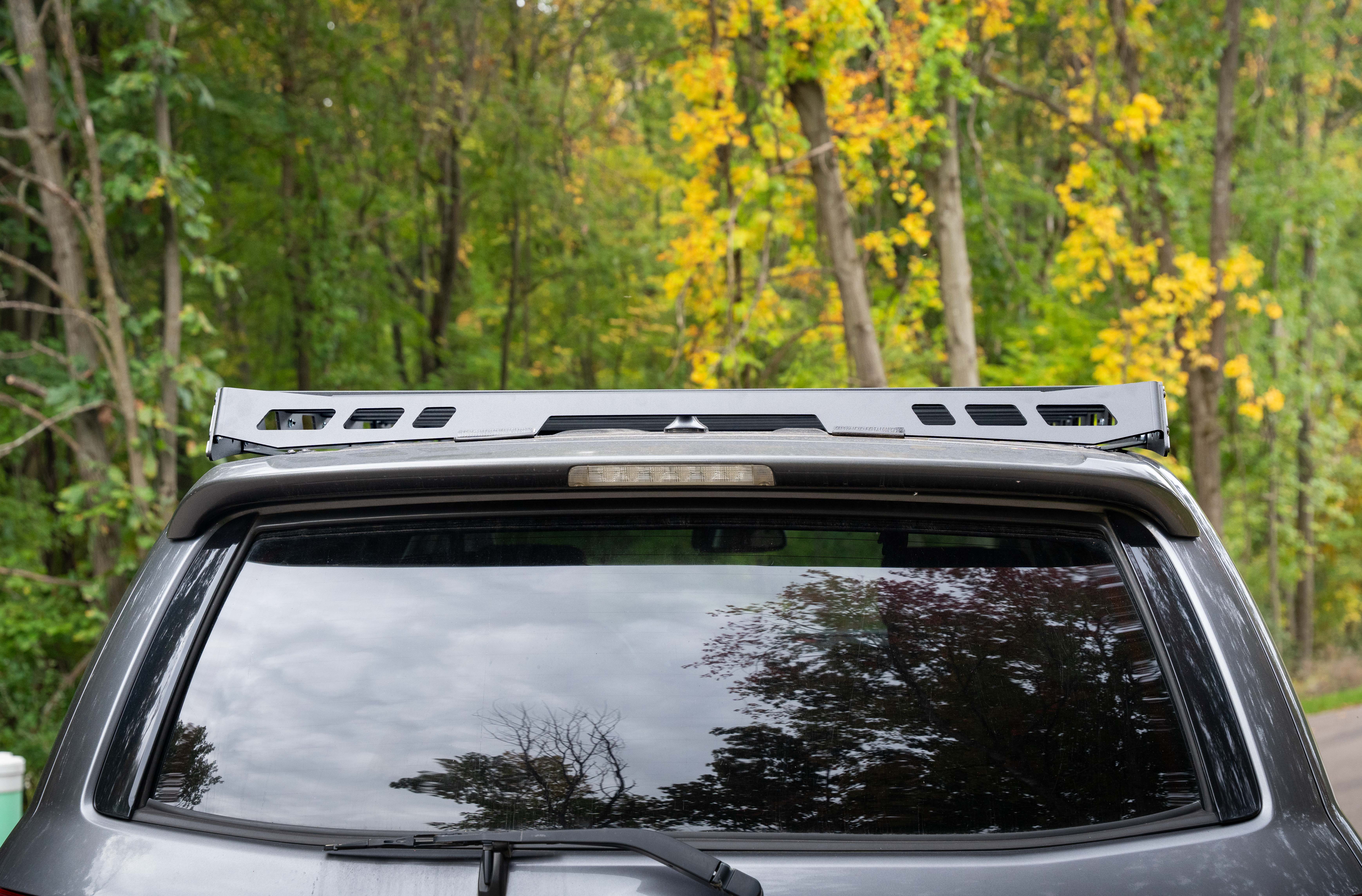

    We recommend using paint protection film under the front and rear fairings, where they contact the vehicle. This will prevent dirt and debris from scratching the paint over time.

Looking for answers to common questions about us or our products? See our FAQ here.

7 Questions asked on Sequoia Roof Rack | 1st & 2nd Gen (01-22)

Ask us anything

Q Leon • 06/02/2021, 3:26:02 PM Two questions. What's the minimum clearance from the bottom of the bars to the middle of the roof? How wide are the crossbars? Thanks!
A 06/04/2021, 10:57:43 AM The crossbars are 2" wide x 1" tall. There is about .75" to 1" gap between the crossbars and the roof.
Q MT • 06/26/2021, 5:21:59 PM What are the overall dimensions and weight capacity?
A 07/08/2021, 1:15:34 PM Roughly 92 x 53". Toyota rates the roof with a factory rack at "Max load 165 lbs evenly distributed." Our rack itself can handle significantly more weight than that, and we've had 250 lbs dynamic weight on it without issue, static capacity is certainly well above that. All these weight will be at your discretion as they are above Toyota "recommended" capacities. If you need more information please contact us directly at [email protected]
Q Herman H. • 08/31/2021, 11:06:05 PM How many crossbars come with this kit? Are the black coated hardware parts come at an increased cost?
A 09/02/2021, 3:54:08 PM 9 Crossbars, yes we offer black hardware:
Q Paul • 11/13/2021, 9:34:30 PM Can you do a gloss black powder coat on the 2nd gen Sequoia roof rack?
A 11/15/2021, 10:14:52 AM We only have the textured black available.
Q Lee • 01/12/2022, 3:38:25 PM How well are Thule and Yakima accessories supported on these crossbars? I would like to be able to use my cargo, kayak and bike racks.
A 01/24/2022, 1:56:29 PM We don't officially support those accessories, but many of them have enough adjustability to work with the 1x2" crossbars on our racks.
Q Nas • 07/05/2022, 11:18:52 AM Would this fit on a 2020 Sequoia TRD pro?
A 07/08/2022, 10:42:26 AM Yes, it will!
Q Allan Ignacio • 08/15/2022, 2:37:45 PM Is there a picture with the light at cutout? Also, I’m new to all this but I’m assuming you’ll have to occasionally ensure the crossbar screws remain tight. Is my assumption correct?
A 08/15/2022, 3:07:54 PM Checkout our Tacoma Roof Rack for photos of a fairing with a lightbar cutout. It's never a bad idea to check the bolts periodically!
★★★★★ ★★★★★
5/5 Stars out of 1 Review
2018 Sequoia Roof Rack Installed
(So Cal) | December 7th, 2021
Finally installed my rack a few weeks ago and thought I'd right a review for yall. Over all I am happy with it. However I do wish it would have a sleeker design up front, like it's competitor. Also the cut out stamping on the mounting brackets was not well thought out. The stamping could have been placed on the elevated section of those steel plates. Some of those part number cut outs left a big need for more RTV to placed on them to avoid leakage. Also mine was missing a few screws so be sure to count out all our parts before you start. Pictures available.


A wide variety of accessory / lighting mounts available and the list is growing!

See related products below!


Allows for full functionality of all standard sunroofs

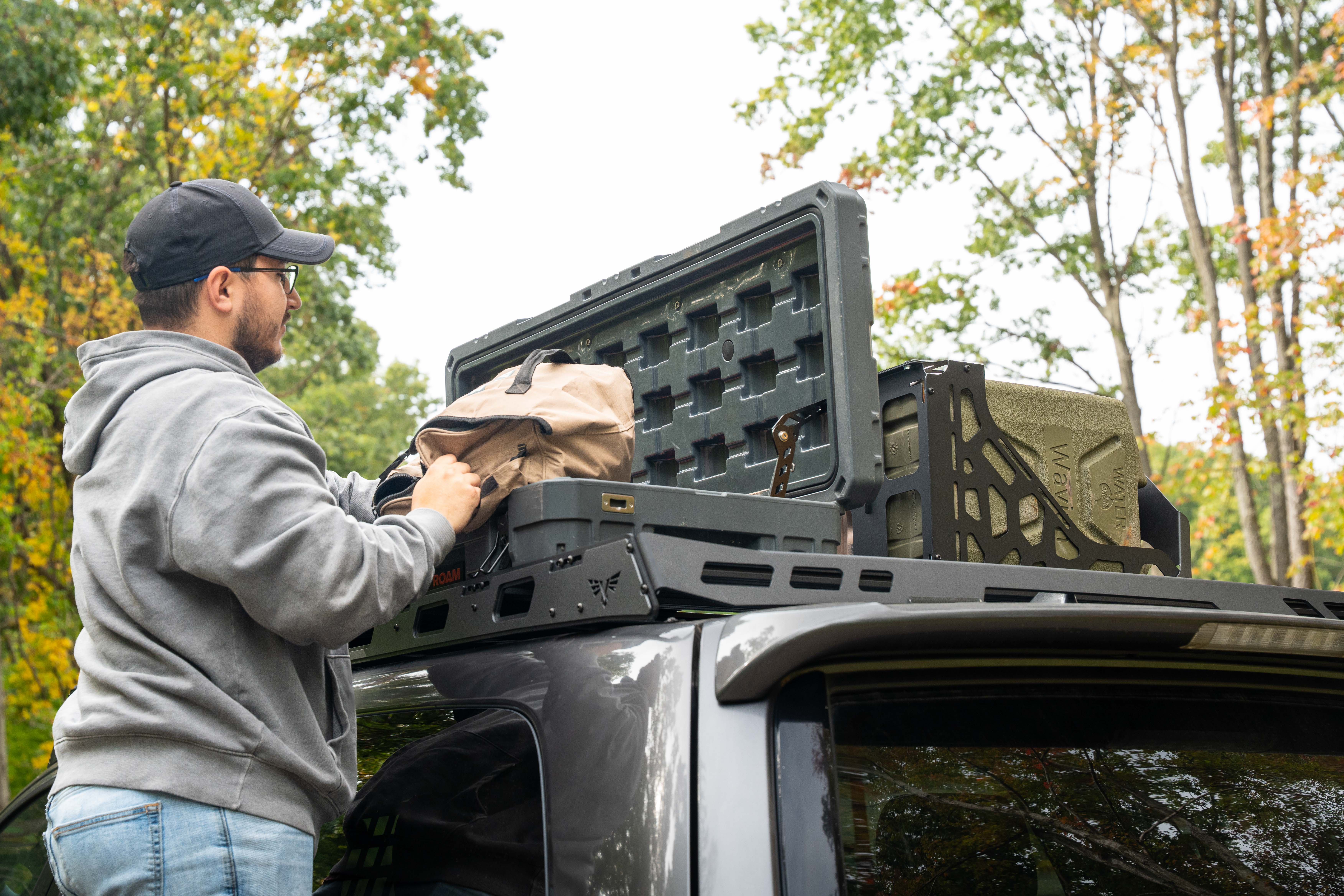

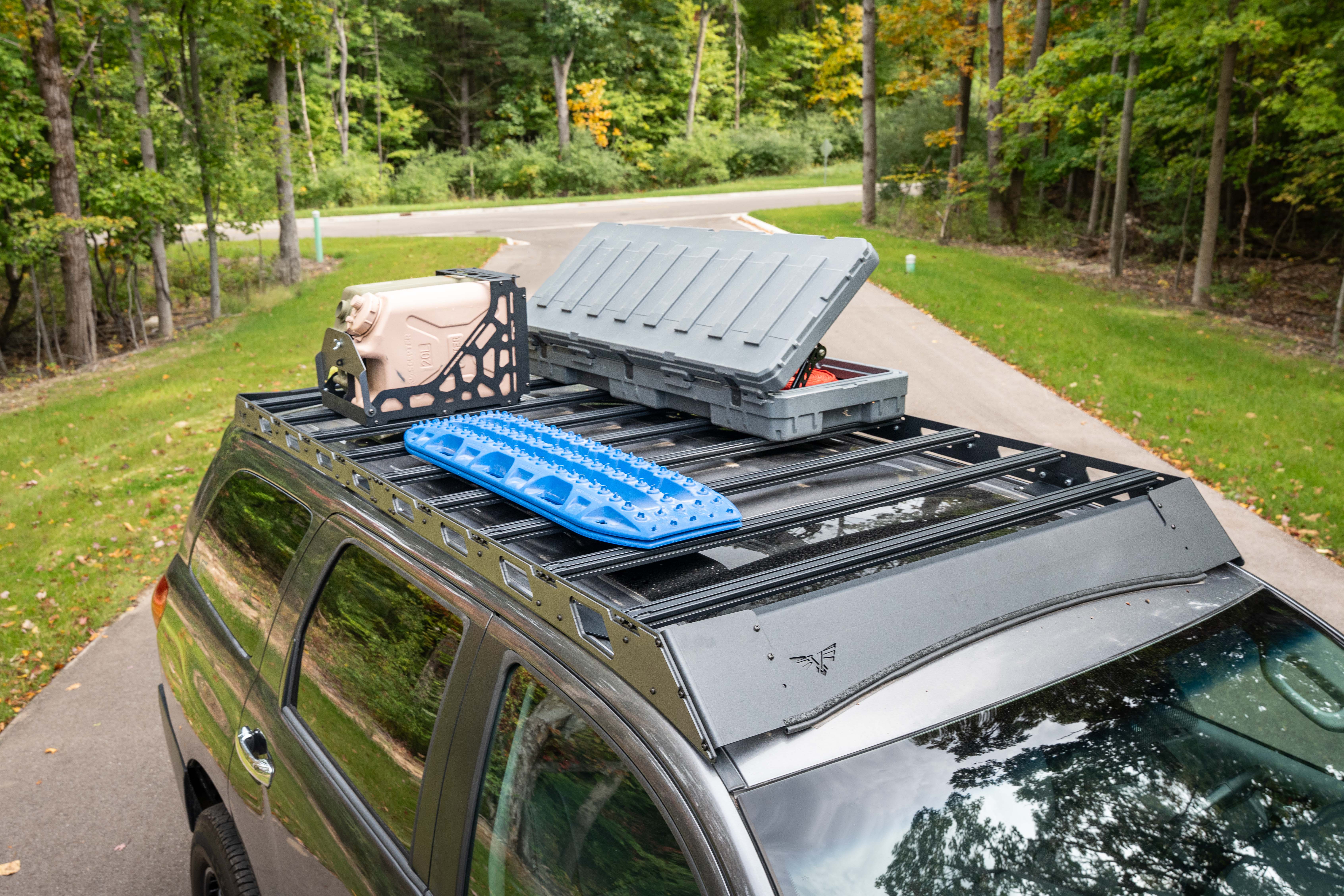

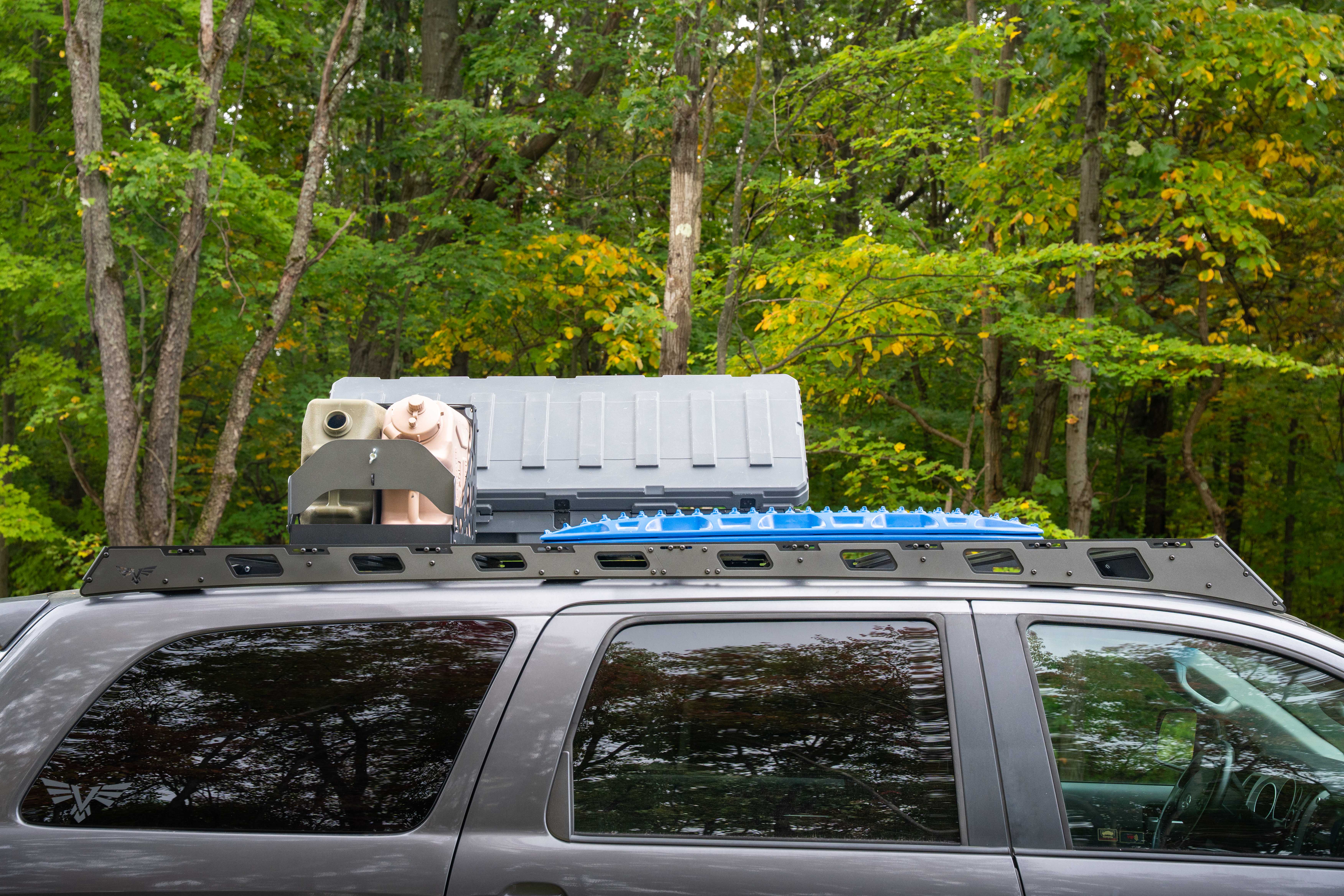

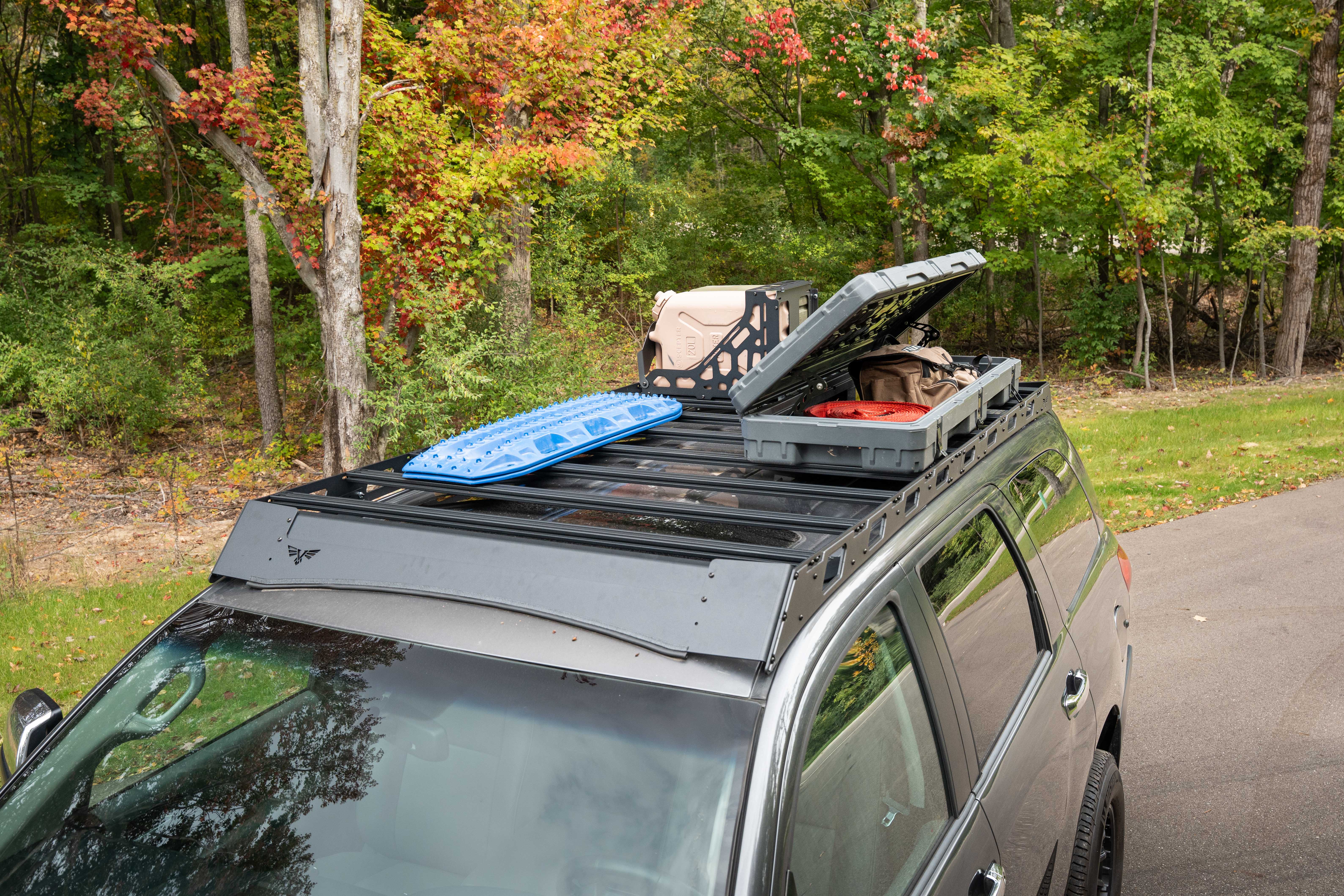

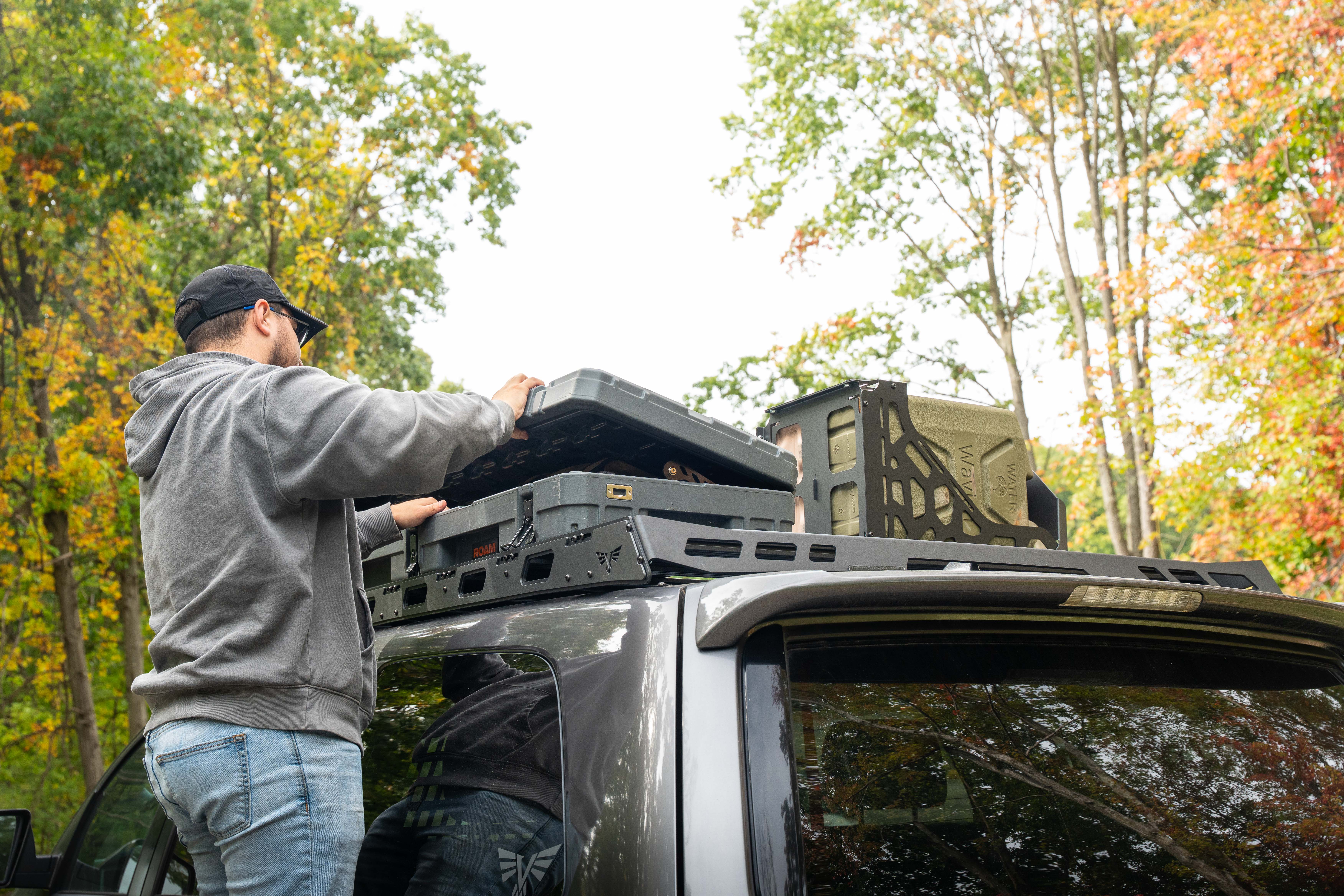

Designed with your outdoor gear in mind.

Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
